Hello, friends welcome to the new tutorial. In this post, we will have a detailed look at Introduction to Three Phase Full Wave Rectifier. The rectifier is a module that transforms ac input in the dc for that purpose generally diodes used in the rectifier but in some cases, thyristor are used There is ac power generation that occur in the power system but some devices operate at dc so rectification process is done.
In this post, we cover circuit working operation and some other related parameters. so let’ get started with Three Phase Full Wave Rectifier Circuit.
Three Phase Full Wave Rectifier Circuit
- The three-phase full-wave rectifier circuitry can be seen here.
- Generally, the circuitry of this category can be parted in 2 main portions. The first one appears like the 3 phase half-wave rectifier and other looks to link the three-phase voltage provided to the output.

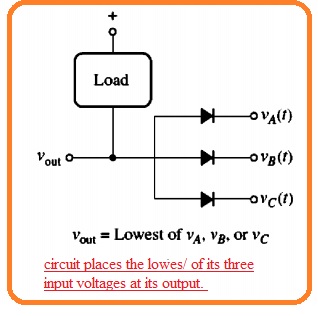

- The second portion of the circuitry comprises of 3 diodes having a direction that anodes terminal are linked to the load and cathodes to the power supply
- This configuration links to the less of 3 phase power voltages at the load any respected time.
- So the 3 phase full wave rectifier at net time interval links the largest of 3 voltage at one terminal of load and retain links the less of 3 voltages at the second point of load.

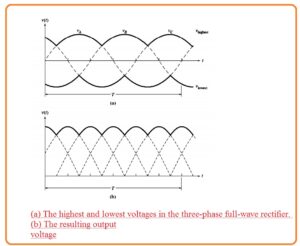

- The output of this link can be seen here.
- The result of 3 phase full wave rectifier is smooth than the output of 3 phase half-wave rectifier.
- The less ac frequent element exit at three sixty hertz frequency and ripple factor for this circuitry has just 4.2%.
How to Filter Rectifier Output
- The output of any rectifier circuit can be done further smoother through the usage of a low pass filter to eliminate ac frequency elements through output wave.
- Generally, 2 categories of components are generally used to do the smoothing process of the output of circuitry.
- Capacitor linked about the circuit will do smoothing process of voltage varied.
- Inductors linked to the line will eliminate frequency components from the current.
- The basic filter rectifier circuitry employed for machines is one inductor connected in series combination. The three-phase full-wave rectifier having a chock filter can see here.
