Hello, readers welcome to new post. Here we will discuss Introduction to CN3065 Mini Solar Charger. Nowadays uses of solar power is very common. With the advancement of new innovations in the solar panel techniques and different algorithms implementation of solar power has become very common.
CN30645 is an IC-based solar power system that comes with LI-Po battery charging and is employed in a different type of solar projects. In this post we will discuss different paramerts of this module and related functions. So let get started

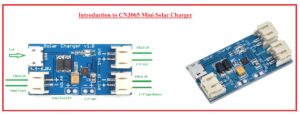

Introduction to CN3065 Mini Solar Charger
- It is small-size solar Lipo charger supported on the CN3065 that comes in a single lithium battery charger board.
- This charger gives the maximum power from the solar panel and some other photovoltaic modules.
- Its structure is very simple to connect a solar panel at one side of this charger and the battery starts to charge.
- The solar charger output gets to charge one polymer lithium-ion cell. There must be a parallel combination between load and battery.
- In the default case, the solar charger adjusts to the highest charger current value of five hundred milliamperes having the highest input volts of six volts.
- CN3065 board is like the LI-Po battery with the input power pins that can be linked with a solar panel to give power for charging of the battery.
- Three power inputs exist on the board one is a battery charger supply that can value of 6.5 volts.
- 2nd power input is used for the terminal of the battery that helps the battery to get a charger and deliver charges
- 3rd one is use used as a USB micro port. It has two outputs: the main system output and the USB output.
CN3065 Mini Solar Charger Featuers
- Some main features of the CN3065 Mini Solar Charger are explained here
- Its input voltage range is 4.4 to six volts
- The highest value of current is five hundred milliamperes
- It has short circuit protection
- Comes with a micro USB connector and has a red LED for charging and Green to show the charged status
CN3065 Mini Solar Charger Pinout
- CN3065 Mini Solar Charger pinout is discussed here
- Solar+: It is positive input to the solar panel
- Solar-: It negative input to solar power
- Batt IN+: It is a positive terminal of a battery
- BATT-: It is a negative battery terminal
- SYS out+: That is regulated power-positive output
- SYS out-: That is regulated power negative output
CN3065 Mini Solar Charger Applications
- CN3065 Mini Solar Charger applications are discussed here
- It used as an LI-Po charger
- Employed as solar power storage module
- Used in smart devices
- The main part of the solar system
Working on CN3065 Mini Solar Charger
- CN3065 board is like the LI-PO chargers but its input power can connected to a solar panel to offer power to charge the battery.
- It comes with 3 power inputs and one is a battery charging supply that has a range of 6.5 volts to 40mV of battery voltage before triggering the undervoltage. The other power input is battery pins. They are used for getting power from a battery or charging a battery.
- 3rd input is a USB micro port. The 2 outputs are the main system power output and USB output. System power output is taken from the battery. Pin headers are used for power input and battery power output.
- The board statue is shown with two LEDs, the CH LED used for showing charging is continued and the OK LED shows charging completed.
- For normal solar power applications solar power is connected to power inputs and a single-cell LI-PO battery is connected to battery terminals and the load gets power from output terminals.
That is all about the CN3065 Mini Solar Charger all details has been explained if you have any further query ask in comments. Thanks for reading have a nice day see you in next post.
