Introduction to BC557 PNP Transistor

Hello, readers welcome to the new post. Here we will learn Introduction to BC557 PNP Transistor. The transistor is most preferred for switching and amplification circuits. It comes with three main terminals that are emitter-base and collector. There is two main configurations it has that are NPN and PNP.

These are configured on the basis of their doping levels. Here we will give a detailed overview of BC557 transistor that is PNP configuration.

Table of Contents

BC557 comes in T0-92 packaging modules and is configured in PNP BJT arrangements. Work as general-purpose transistors for different switching and amplification projects

Its provided value of gain between a range of one twenty-five to eight hundred and prefferd fro sound system amplifications
For reading the rating value of gain of this module there must be taken into consideration last letter comes after number, for instance, BC557B has a value of gain of about two hundred to four-fifty.
Its working in case of the load rating of one hundred milliamperes of switching circuit
Its nature of general-purpose make it useful for numerous applications like radio, buzzers, electronic bells
Used for switching circuits of LED relays.
Working as switch work in two modes of operation saturation and cutoff region.
In case of amplifiers work in an active mode of operation

BC557 PNP Transistor Features

Its main features are listed here with the detailed

The working temperature for this device is minus sixty to plus one fifty centigrade
The value of current gain is one twenty-five to eight hundred
General-purpose PNP transistor
VCE is about minus forty-five
VCB is about minus five
The value of collector dissipation is five hundred milliwatt

Feature	Description
Type	PNP Bipolar Junction Transistor (BJT)
Package	TO-92, SOT-23,
Maximum Vcbo	50V
Maximum Vceo	45V
Maximum Vebo	5V
Continuous Ic	100mA to 200mA
Power Dissipation (Pd)	625mW
DC Current Gain (hfe)	110 to 800
Operating Frequency	Good for low to moderate-frequency applications
Operating Temperature	-55°C to 150°C
Amplification	small-signal amplification
Applications	electronic switching circuits
Packages	Different package types
Low Noise	low noise characteristics
Available	Widely accessible

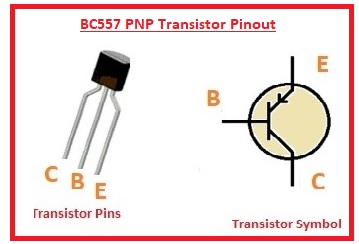

BC557 PNP Transistor Pinout

There are three main pinouts it has’
EMitter: Current comes out from this point
Base: Work as a control for components like tap
Collector Larger than other two parts and get the supply

BC557 PNP Transistor Applications

Its main applications are listed here
It works as switch’
Used as amplifiers
Operates loads of rating 0.1 milliamperes
It is part of Darlington pair circuit

BC557 Transistor Equivalent

2N3906:

This transistor is used for low-power applications and is of PNP nature, like the BC557. It has the same features and is good to replace for different circuits.

BC327:

BC327 is also a PNP transistor that has the same features as the BC557 transistor. It is used for different electronic circuits.

BC558:

BC558 is a PNP transistor and a replacement for BC557 as a complementary. If there is a need for a complementary pair for a certain circuit, use BC558.

2SA1015:

It is a PNP transistor used as a replacement for the BC557.

PN2222A:

It is an NPN transistor used as a replacement for BC557 with some changes.

Difference between BC547 and BC5

BC547 is an NPN transistor, so current flows from collector to emitter and for the base in an accurate biased state. BC557 is a PNP transistor, and current flows from the emitter to the collector.
Both come with different maximum current and voltage values. These differences help to use for different applications.
The gain of these two components is different.
Both also have different switching speeds that affect their working for digital and high-frequency applications.
Heat dissipation and tolerance for temperature changes also differ.

FAQ

Can the BC557 be replaced with the BC547 transistor?

Yes, we can use BC557 for the BC547 transistor replacement. BC557 is a PNP transistor, and BC547 is an NPN transistor circuit that needed some changes to work. Before replacing the transistor, get help from the datasheet.

What is the cutoff frequency of the BC557 transistor?

The cutoff frequency for the BC557 transistor is tens of megahertz (MHz), so it is used for moderate frequency applications.

Does the BC557 transistor handle high-power applications?

No BC557 transistor made for low-power circuits with a maximum power dissipation of 625 mW. It is not good for high-power circuits since it has limited power handling features.
