Introduction to 1N5819 Schottky Diode & Applications

Hello friends I hope you all are feeling well. In this post, we will discuss Introduction to 1N5819 Schottky Diode. The 1n5819 is a category of Schottky diode and also named as hot carrier diode. It’s commonly used in such applications where high-speed switching is requ In this post, we will discuss Introduction to 1N5819 Schottky Diode. The 1n5819 is a category of Schottky diode and also named as hot carrier diode. It’s commonly used in such applications where high-speed switching is required. It is constructed by the combination of a metallic substances with the semiconductor. Due to this type of configuration, there is such arrange is exist that stops the flow of charge carriers.

Due to that cause it known as hor carrier diode. In this post, we will describe the pinout of 1N5819, datasheet, features, and other related factors. So let’s get started with Introduction to 1N5819.

Introduction to 1N5819

• The 1n5819 is a category of Schottky diode that used and suitable for switching circuits.
• It provides less energy usage during the unbiased state which causes the production of a barrier in this diode that used for the blockage of electrons.

• Due to the creation of this barrier or stop will this diode is known as a hot carrier.
• The main feature of this module is that it offers large speed switching with that has less value of froward loss of voltage so it used in such circuits where the large frequency is used such as DC to DC converter circuits.
• If we some comparison between the conventional diode and Schottky diode we come to know that Schottky diode has a resemblance to normal diode related to the movement of current.
• The common features is that both these transistor allows the current to flow in a single direction from anode to cathode.
• The voltage needed for this diode has a different value than the normal diode for power-up.
• The two volts of DC voltage is given to these diodes but this diode uses only 0.3 volts and 0.7 volts are used by the normal diode.

1N5819 Pinout Configuration

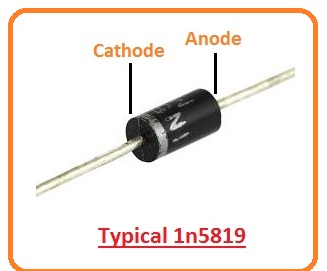

• In the below figure you can see the pinout configuration of 1n5819
• There is 2 pinouts are assembled on this module. That helps to make a connection with the circuitry.
• The first terminal of this module is known as the anode and the second one is called the cathode.
• The positive terminal is created by the use of a metallic substance and the cathode is with the semiconductor.

1N5819 Features

• The features of 1n5819 are discussed here.
• It used in rectifier circuitry.
• The value of forwarding current for this diode is one ampere.
• The value of forward surge current is twenty amperes.
• the value of forward voltage loss is six hundred millivolts for one-ampere current.

• The value of peak reverse voltage for this module is forty voltas.
• The root means square reverse voltage for his diode is twenty-eight volts.
• It exists in DO-41 casing

1n5819 Schottky Diode Construction

• This diode is created by the combination of metallic material and semiconductor. The anode of this module is created by the metallic and cathode with semiconductors.
• The n category of semiconductor is used in this diode. In this N semiconductor electrons are in majority and holes are in minority.
• P category of semiconductor also but it not preferred due to less forward voltage loss.
• The metallic substance used in this diode is tungsten, platinum, chromium, and molybdenum.
• The direction of current flow for Schottky diode is from anode to cathode and reverse current is not entertained.

1N5819 Applications

• The common application of 1N5819 is discussed here.

• It used to stop the problem caused by reverse polarity.
• It is used in the inverter that uses a large value frequency.
• It used to protect different devices.
• It is used as a current movement regulator circuit.
• In such an application where protection of polarity is needed, this diode is used.

Frequently Asked Questions

What is 1N5819?

• The 1N5819 is a Schottky diode that comes with low forward voltage losses and high switching speed. it is used for high-frequency circuits such as  Inverters, and DC-DC converters.

What are uses of Schottky diode?

• The Schottky diode is used for low turn-on voltage, high-speed recovery time, and fewer loss energies for high frequency. So they are features for rectifying current through handling the high-speed transition from conducting to blocking state.

What is the positive side of a diode?

• Its positive side is the anode.

How does a Schottky diode work?

• The Schottky diode comes from the semiconductor metallic junction between the semiconductor and metal, making the Schottky barrier. The N-type semiconductor works as a cathode, and the metallic side is used as the anode of the diode. That Schottky barrier provides low forward voltage losses and high-speed switching.

How to test a Schottky diode?

• Make the connection of the red testing lead with the anode of the Schottky diode and the black testing lead with the diode cathode. Check the beep sound in the meter. If the Schottky diode gives results as needed, the meter will give a sound of tone.

So friends that is a detailed post about 1N5819 if you have any further query ask in the comments. Thanks for reading.
