Hello, readers welcome to the new post. In this post, we will learn the introduction to TL084CN Quad Op-Amp. It is JFET configured at input operational amplifier has a large value of impedance at the input and less value of offset current and voltage.
Its configuration is like the TL074 with the difference that has a large value of noise immunity. Here we will discuss its working pinout features and some related parameters. So let get started.
Introduction to TL084CN Quad Op-Amp
- TL084 is a less power-consuming operating amplifier that has operational amplifiers. That has a large value of high gain and frequency compensation module
- The large value of impedance inputs offered the JFET configuration which was used for less value of input bias and offset current
- It operates on the voltage range from seven to thirty-six volts also has the ability to operate on a dual power supply
- It is mostly employed in amplifiers circuits. Its common applications are voltage comparator filters and voltage-controlled oscillators
- Has ability to handle the frequency range of three to four megahertz
- The TL084 comes in a quad packaging operational amplifier that means assembled with 4 operational amplifiers.
- Its main feature is that has the ability to operate with high volts JFET configuration
- Due to preamplifier configuration used for less noise and harmonic distortion.
TL084CN Features
- There are main features it has that are described here
- It consists of fourteen pinout and dual in line packaging.
- It has protection for output short circuit
- Frequency bandwidth is four megahertz
- Its gain value is two hundred
- CMRR is eight six decibels
- The value of input offset volts is three millivolts
- Biased current at the input is twenty pico ampers
- It has four operational amplifiers

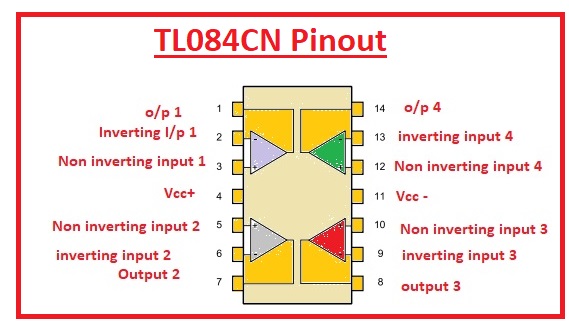

TL084CN Pinout
- Its main pinout are discussed here
- Pin 13 Vcc- is used for negative supply to the operational amplifier
- Pin 4 is used to give a positive supply to operational amplifier
- Pins 3, 5 12 14 are used input non-inverting 4
- 2, 6, 11 15 are inverting input pinouts
- 1, 7 10 16 are operational amplifiers output pinout
| Pin Number | Pin Name |
| 1,7,10,16 | Op-Amp Output Pins |
| 2,6,11,15 | Input Inverting Pins |
| 3,5,12,14 | Input Non-Inverting Pins |
| 4 | Vcc (+) |
| 13 | Vcc (-) |
TL084CN Applications
- Its main applications are listed here.
- It is used in the audio amplifier circuit configuration.
- It used multistage voltage generator circuits.
- It is employed in buffer circuits.
Uses of TL084 Op Amp
- TL084 is a quad-packaged operational amplifier that comes with 4 operational amplifiers, and each operational amplifier works in a separate way.
- Its main feature is that they support high-voltage JFET and bipolar transistors that help the transistor come with high input impedance and low bias current.
- It also has low noise and harmonic distortion and is good for audio preamplifier circuits.
- If there is a need for an operational amplifier IC with quad packages and JFET, use this module.
TL084 Op-Amp Working
- It is like LM324 operational amplifiers and comes with 4 operational amplifiers. With that, both have the same pins. The TL084 is not used for common 5V operations since it needs minimum server volts.
- As compared to LM324, if there is a need to use an operational amplifier in single supply mode, check that there are a minimum of 7 volts for operational amplifiers working.
What is the maximum voltage for TL084?
- The device comes with high slew rates, low input bias and offset current, and low offset voltage temperature. The magnitude of input voltage does not cross the magnitude of supply voltage, or 15 volts, which is low.
What is the difference between TL084 and TL074?
- TL074 is operational and comes with 4 amplifiers in one package. TL084 is a quad amplifier with JFET input and also has 4 amplifiers but with JFET inputs.
What is the name of the IC in TL084?
- • The TL084 JFET-input operational amplifier is made to provide larger options than the previously made operational amplifier family.
That is all about the TL084CN Quad Op-Amp. I have explained all the parameters about this module if you have any further query ask in the comments. Thanks for reading have a good day
