Hello, readers welcome to the new post. Here we will learn Introduction to TDA2030. This module is considered a monolithic IC that comes with a petawatt power configuration employed for less power usage applications. Normally its output is about fourteen watts. It gives a large value of output current and has less value of harmonic and cross-over distortion.
It used in the short circuit protection system IN this post we will learn the different parameters related to pinout working and applications. So let get started with Introduction to TDA2030
Introduction to TDA2030
- The TDA2030 is an audio amplifier integrated circuit that can give the power value up to twenty watts
- It can operate the four-ohm speaker at twelve-watt power and eight-ohm speaker at eight watts
- For limit the dissipation power there is inner protection circuit exists in this module
- It is used to operate the class AB amplifiers for less value frequency.
- Its less cost small physical area and output power up to two hundred watts make it useful for amplifier circuits
- It also operates for stable functions and offered good sensitivity
TDA2030 Features
- The main features of these modules are listed here
- It comes with To220 packaging having five pinout
- It also used on the breadboard for circuit creation
- It consists of thermal and short circuit protection
- Can operate on power ranges from six to thirty-six volts
- Output power is twenty watts
Type | Parameter |
Mount | Through Hole |
Package / Case |
Pentawatt-5
|
Operating Temperature |
-40°C~150°C TJ
|
JESD-609 Code | e3 |
Moisture Sensitivity Level | 1 (Unlimited) |
ECCN Code | EAR99 |
Terminal Finish | Matte Tin |
Voltage – |
12V~38V ±6V~18V
|
Peak Reflow Temperature (C) |
NOT SPECIFIED
|
Reach Compliance Code | not_compliant |
Base Part Number | TDA2030 |
Qualification Status | Not Qualified |
Operating Supply Voltage | 28V |
Nominal Supply Current | 80mA |
Output Current | 3.5A |
Output Power | 14W |
Input Offset Voltage (Vos) | 20mV |
Power Supply Rejection Ratio (PSRR) | 50dB |
Max Dual Supply Voltage | 18V |
Min Dual Supply Voltage | 6V |
Input Bias Current | 2µA |
Harmonic Distortion | 10% |
Load Impedance | 4Ohm |
REACH SVHC | No SVHC |
Lead Free | Lead Free |

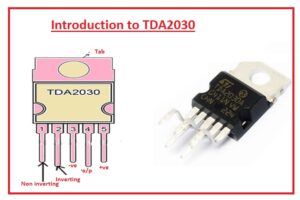

TDA2030 Pinout
- There are five pinouts it has that are described here
- Pin 1 is a noninverting input terminal
- Pin 2 is inverting input
- Pin 3 is connected ground
- Pin 4 used as output
- Pin 5 output is taken here
TDA2030 Applications
- The main applications of TDA2030 are listed here
- It used in audio speaker circuits
- It comes with a feature to operate on the dual power supply
- The high-power amplifier used in this module
- Class ab amplifiers consist of this module
Technical Features of TDA2030
Low-Frequency Performance
- • The TDA2030 amplifier comes with low-frequency audio features and provides about 20 watts of power. That makes it a good option for dynamic conditions such as audio setups.
Power Supply Options
- It has a voltage range of 6 to 36 volts. This amplifier is configured in a simple way for projects. It provides good efficiency and output based on power supply demand.
Built-In Protection System
- It has a short circuit and thermal protection system that makes it reliable and longer working life also in high conditions. It protects from electrical faults, heat, and different challenging conditions.
TDA2030 Testing Circuit
- The resistor R4 in this circuit is configured between Pin 2 and Pin 4 that is used as a feedback resistor. It affects the gain of the circuit, and any changes in value cause a change in the circuit’s working.
- For the TDA2030 circuit layout component, R1 and C2 are connected in series through pin 2 and made for reducing noise with audio signals.
- The IC output channels configured through a 2200 µF capacitor in a series combination transfer an amplified signal for the connected speaker to provide smooth auditory output.
TDA2030 Alternatives
- TDA2030, TDA2050, and LM1875 are interchangeable.
Replacement | Compare | Manufacturers | Category |
TDA2030AH | Current Part | ST Microelectronics | Audio Amplifiers |
TDA2030H | TDA2030AH VS TDA2030H | ST Microelectronics | Audio Amplifiers |
TDA2030V | TDA2030AH VS TDA2030V | ST Microelectronics | Audio Amplifiers |
TDA2030AV | TDA2030AH VS TDA2030AV | ST Microelectronics | Audio Amplifiers |
FAQs
What is the use of TDA2030?
- The TDA2030 is a monolithic IC that is used for low-frequency Class AB amplifiers and provides 14 watts of output power.
Can we replace TDA2030 with TDA2050?
- Yes, TDA2030 can be used as a replacement for TDA2050. The TDA20250 is compatible with high voltage of about 2x25VDC.
What is the package of IC TDA2050?
- The TDA2050 comes in a pentawatt package. That packaging is good for handling power and thermal management and provides a reliable nature.
That is all about the TDA2030. Have explained all parameters related to this amplifier. If you have any further query ask in the comments. See you in next post.
