Hi, guys, I hope you all enjoying your life. in today’s tutorial we will have a detailed look at Introduction to MSP430. It is a family of microcontrollers that provides different categories of 16 bits MCUs. This controller comprises less power, digital, and analog components used for detection and measures different parameters.
This module is usually constructed for such embedded applications that are less expensive and less power usage. In today’s post, we will have a detailed look at its working, pinout features, and some other related parameters. So let’s get started with Introduction to MSP430.
Introduction to MSP430
- MSP430 is the circuit constructed board used to design such applications which is based on Arduino due to their similar infrastructure which does not have large processing power similar to the Raspberry Pi.
- As the Arduino is created on the AVR controller MSP430 is created on the TIMSP430 MCs. It is used for the creation of less power usage applications since it does not hashish the processing power which exits in the Raspberry Pi.
- On this board, there are 2 ports P1 and P2. UART port is used at points P1.1 and P1.2.
- There is an inner oscillator that exits on this board and it has a reset button.
- To program this module there is no need of exterior hardware.
Features of MSP430
- These are some important features of MSP430.
- It comprises of dual inline pin or DIP socket for linking of and detaching of MCUs.
- To debug very little power it uses energy trace technique.
- There is one button and 2 light-emitting diodes rare exist on this board.
- There is a hardware reset button is exits on it.
- The voltage at which it works is five volts.
- It comes with an energy trace feature for low-power debugging.
- It comes with a single button 2 LEDs
- It also has a RESET button
- It has debugging and programming interfacing.
- UART serial communication protocol with 9600 Baud rate.
- It is configurable with MSP430G2xx2 MSP430G2xx3 & MSP430F20xx in PDIP14/PDIP20 packages.
- It comes with an off mode of about 0.1 µA and a standby mode is 1.5 µA.
Technical Features
- Internal oscillator,
- Timer having pulse-width modulation (PWM),
- Watchdog timer,
- Analog-to-digital converter (ADC) options:
- 10/12/14-bit successive-approximation ADC
- 16/24-bit delta sigma ADC
- Internal analog comparator with digital timers
- Brownout reset circuitry.
- USART,
- Serial Peripheral Interface (SPI) bus,
- Inter-Integrated Circuit (I²C),
Pinouts of MSP430
- These are pinouts of MSP430 which are mentioned here with the details.
P1.0 to P1.7 and P2.0 to P2.5
- This group of pinouts is input and output pinouts that exist on the board for interfacing different devices.
P1.3
- It is a button that provides general interfacing when the device is operating.
P1.0 and P1.6
- These 2 are LEDs that indicate the process of different operations.
RESET
- This pinout is used for resetting the controller.
Pin jack
- There are 3 pin jacks exist at the lower side of the controller where the exterior power supply is attached.
Applications of MSP430
- These are some important applications of MSP430.
- It is used in different Tim MCUs learning instruments.
- It is used in different types of ROBOTs.
- The operation of quadcords and plans is based on this module.
- Automation of different types of buildings involves this module.
- The security and control circuits comprise this module.
- Electronic locks comprise of this mode.
- it is used in medical devices.
MSP430 Family Features
- Power Feature
- 0.1 μA RAM retention
- 200 μA / MIPS active
- 0.7 μA real-time clock mode
- standby mode in less than 6 μs.
- Hardware parameters
- Flash options: 1 to 60 KB
- ROM options: 1 to 16 KB
- RAM: 128 B to10 KB
- GPIO options: 14, 22, 48 pins
- ADC options: Slope, 10 & 12-bit SAR
- 12-bit DAC, up to 2 16-bit timers, SVS, USART module (UART, SPI), watchdog timer, brown-out reset, DMA, 16×16 multiplier
MSP430 Generations Comparsion
Features MSP430F2xx series MSP430G2xx series MSP430x3xx seriesFlash options : 0.5–56 KB 2–32 KB 4 – 120 KB RAM options: 128 B–4 KB 512 B–1 KB 256 B – 8 KB GPIO options: 10, 16, 24, 32 pins 14, 40 pins 14, 32, 48, 56, 68, 72, 80 pinsADC options: Slope, 10-bit SAR Slope, 14-bit SAR Slope, 10 & 12-bit SAR, 16-bit Sigma Deltaintegrated peripherals: up to 3 16-bit timers, Capacitive Touch I/O, brown-out reset, USI module (I²C, SPI), watchdog timer, LCD controller, multiplier SCAN_IF, ESP430, 12-bit DAC, watchdog timer, basic timer, brown-out reset,Op Amps, RTC, up to 2 16-bit timers,
MSP430G2553 Controller vs MSP430G2452 Controller
Feature | MSP430G2553 |
MSP430G2452
|
CPU architecture | 16-Bit RISC Architecture |
16-Bit RISC Architecture
|
Frequency | 16MHz | 16MHz |
Flash Memory | 16KBytes | 8KBytes |
Capacitive touch interface | Yes | Yes |
Internal temperature sensor | Yes | Yes |
Watchdog timer | Yes | Yes |
RAM | 512Bytes | 256Bytes |
Communication Interface | 1x I2C 1x SPI 1x UART |
1x I2C 1x SPI |
Programmable I/O pins | 16 | 16 |
ADC | 8 channels of 10-bit resolution |
8 Channel of 10-bit resolution
|
Comparator | 8 input |
8 input
|

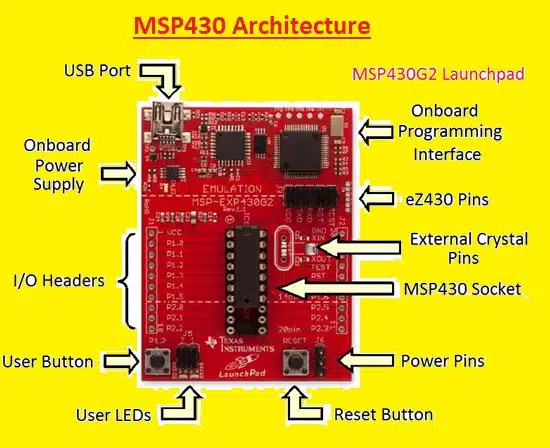

MSP430 Architecture
digital I/O
- The working of digital input output pins is performed with button input signal and LED for displaying output value. When the button clicks LED glows which is the operation of the combinational logic of the digital circuit.
timer
- For the timer working use a microcontroller for making a timing circuit. the timing circuit is high-power and comes to use for different industrial control and household devices. Digital ICS uses timing circuits and PLDs. PLC also uses a timing circuit and a timer is the best option for seeing the practical working of a timer.
Interrupt
- Any controller working is defined based on the repetition of program execution and instruction execution in the program’s needed time. If the program not work for some instructions the working of instructions will not completed, which delays the operations. For the controller to work fast in normal program applications use the interrupt function of the microcontroller.
RS232 communication
- Microcontrollers come with USART interfacing. The MSP439 comes with two USART interfaces. USART interfacing is not connected with the PC RS232 interface directly. The use of the USART interface helps to transmit data between the controller and the PC
A/D conversion
- MSP430 has a multi-channel 12-bit A/D converter and these A/D converters help the controller to work analog, display and check current and voltage, and other signals.
PCI, I2C interface, and LCD interface
- With this interfacing, we can easily connect external devices and provdie extra features for the controller.
Arduino UNO v/s MSP430
- Arduino’s working voltage is 5V and MS430 works on 3.3 V.
- Arduino current is used in a range of milliamperes and MSP430G2553 operates on microAmperes
- Arduino UNO comes with 20 pins and 6 are analog pins out of 20, others are digital pins and MSP430G2553 comes with 20 pins(14 digital pins+6 Analog pins).
- Arduino UNO has a clock speed of 16MHz and MSP430G2553’s clock speed is 16MHz.
- Arduino comes with low power modes and MSP430G2553 comes with different low power modes.
- For waking from standby mode Arduino UNO uses more time than the MSP430G2553 launchpad.
- Arduino uses Arduino IDE programming and MSP430G2553 uses Energia( similar to Arduino IDE)
MSP430 Launchpad Advantages
- It comes with easy flash programming controller features
- MSP430 value line controller is lower cost than high-end ATMega controllers employed in the platform of Arduino.
- There is no need for extra external crystal since operates at 16 Mhz of CLK source.
- It is a low-cost board and is used to make cost-effective project circuits
What are the disadvantages of MSP430?
- MSP430 does not have memory so it uses up to 512KB flash memory and 66KB RAM and is small to use for large buffers or data table applications
Why use MSP430?
- The module comes with 16 16-bit RISC CPUs, 16-bit registers, and generators that provde the higest code efficiency. The digiall-controlled oscillator helps to wake from low power to active mode in about 1 µs
What language does MSP430 use?
- C Programming Language
How many cores does MSP430 have?
- MSP430 CPU comes with more than normal 4- and 8-bit microcontrollers. the 16-bit RISC core configured with professional design. instruction can be used through 7 different addressing modes. The reduced instruction set comes with 27 core instructions.
How many bits is MSP430?
- 16-bit
How many pins are in an MSP430 port?
- MSP430 comes with about 8 digital input-output ports. P1 to P8 and every port has about eight I/O pins. Each pini is used for input or output direction, and each I/O line can be read or written to. Ports P1 and P2 with interrupt features
Read also:
- Introduction to NXP LPC Microcontrollers
- Introduction to L9963 BMS controller
- W78E052DDG Microcontroller: Overview, Features, and Applications
- Introduction to Atmega328p Microcontroller
- Introduction to 8051 Microcontroller
So friends that is a detailed post about MSP430 if you have any further queries ask in comments. Thanks for reading. have a good day.
