Hello friends, I hope all of you are fine. In today’s tutorial, we are gonna have a look at How to Get Free PCB. The PCB stands for printed circuit board, PCB is a thin chip created by compound epoxy, glass-fiber, or laminated different substances. There are many current-carrying ways are designed on the chip, which is used different components like resistors, capacitors, a transistor with each other and current flows to these components through printed ways paths.
Pcb is used in different electronic instruments, projects or devices like mobiles, laptops, computers, etc. Nowadays almost every circuit of any device is created on the PCB. In computers, all components are using in the computer’s motherboard are assembled on a printed circuit board. Before PCB to connect different components with each other wire wrap and one point to other point assembling were famous but these days they are no using. PCB (printed circuit board) needs further enterprise struggle to design the circuitry, but production and its construction are automatic. Special CAD (computer-aided design) software is offered printed on the board. Production of circuitries with PCB (printed circuit board) is inexpensive and quicker than with other cabling techniques, as apparatuses are riding and connect in one process. A huge quantity of PCB (printed circuit board) can be produced at the same time. PCB (printed circuit board) can also be created by hand in fewer amounts, with abridged assistance. In today’s post, we will have a look at its construction, uses, types, and other related terms. So let’s get started with How to Get Free PCB.

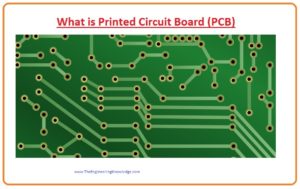

What is PCB (Printed Circuit Board)
- The PCB stands for printed circuit board, PCB is a thin chip created by compound epoxy, glass-fiber, or laminated different substances
- A rudimentary PCB (printed circuit board) comprises of a smooth plate of insulated substantial and a sheet of copper foil, coated to the substrate.
- Chemical engraving splits the copper into discrete conducted outlines which are named pathways or circuitry dashes.
- The body of a PCB (printed circuit board) has a covering that shields the copper from erosion and decreases the probabilities of soldering short circuits among dashes or not desirable electrical connection with vagrant plain lines.
- Pcb consists of numerous sheets of copper. Two-coat PCB consists of copper coating layers on both sides.
- Multiple coating PCB chip has sandwich extra copper sheets among coatings of isolating substantially.
- Conductive elements of unlike sheets are linked with vias (A via or VIA is an electrical connection among sheets in a physical electronic circuitries which passes through the plane of one or more end-to-end sheets).
- When there is no components on PCB (printed circuit board) chip then it is named a printed wiring board.
- But, the term printed wiring board (PWB) has dropped into dereliction.
- A PCB (printed circuit board) which consists of a lot of components is named as printed circuit assembly, or (PCBA).
- A nominal PCB (printed circuit board) for a solitary element, which used for proto-typing, is known as a breakout board.
- The persistence of this board is to break-out the leads of an element on distinct termini so that physical contacts to them can be creat effortlessly.
- Break-out chips are particularly used for superficial mounted apparatuses or any apparatuses with well lead terrain.
History of PCB
- Beforehand the invented of PCB (printed circuit board) electric and electronic circuitries were made by joining components with wire on a framework.
- Classically, the framework was a sheet of a metallic frame.
- Different elements were connected to that framework typically by insulating material when the joining point on the framework was metallic, and their wires were associated straight or with jumper cables with solder wire, or occasionally by means of a crease connector.
- These circuitries were very huge, massive, weighty, and comparatively delicate and manufacture was employment rigorous, so the goods were very costly.
How to Get Free PCB Cash/Discount Coupon
- Till now you have got a detailed overview of the PCB now you must have the desire to get the knowledge of how you can get the free PCB for your project’s creation.
- The main steps to get the free PCB are listed here you can get the free PCB by following these steps.
- Share page of PCBWAY Free PCB on your Facebook account
- If you do PM PCBWAY Facebook account then you will ge the five dollars coupon code
- Doing redeeming code at my coupons will get rewards
- If you have video makers’ knowledge then you have to make a review of videos and get the twenty to one hundred coupons. If your videos get five hundred views the cost of your order will be refunded.
- Spread the word with your link or over email.
Refer and get $20
- If you have any suggestions related to PCBWAY features improvements share them with them if they are implemented you will get the reward.
Types of PCB
- There are numerous types of PCB according to their use and structure assembly. Some types of PCBs are explained below.
- Single-Sided (Printed Circuit Board) PCB
- Double-Sided (Printed Circuit Board) PCB
- Multilayer (Printed Circuit Board) PCB
- Rigid (Printed Circuit Board) PCB
- Flex (Printed Circuit Board) PCB
- Rigid-Flex (Printed Circuit Board) PCB
- Pcb used different communications instruments like mobile, watches, radios, etc.
- All types of computers motherboards of PCB, like personal computers, tablets, laptops, or other workstations.
- All types of supplies used PCB to make their structure like ups, inverters or another power device.
- Different measurement devices like flow meter, temperature meter all are constructed on PCB.
- PCB is also used for medical instruments like x-ray machines, ct scans, etc. You can also find PCB inside the electric optical microscope, controller schemes, compressors, and other strategies.
- It is used in all MediaPlayer instruments like tv, DVD, and different types of games which we play.
- All appliances used in our homes are manufactured on PCB like microwave oven, refrigerator, clock, etc.
- Different industries machines also PCBs to assemble different electronic components
That is all about the How to Get Free PCB. if you have any further query ask in the comments. must not forget to avail of this offer.
