Hi friends welcome to the new post. Here we will learn How to Replace Doorbell Transformer With Diagrams. A doorbell that is connected to an electrical system through the use of wire comes with a transformer that reduces the voltage according to the wiring of the bell that operates on low voltage. Normally the transformer is damaged very little but if happens can be easily replaced. Here we will discuss the process for replacing the transformer. So let it start with How to Replace Doorbell Transformer With Diagrams
- In our houses, 120 volts are used. The doorbell system gets power from the circuit system of our homes and it normally needs 10 to 24 volts. These low voltages are converted from the transformer. The transformer is an electrical device that has two windings primary and secondary windings and it functions on the phenomena of electromagnetic induction. To provide low voltages to the doorbell step-down transformer is used.

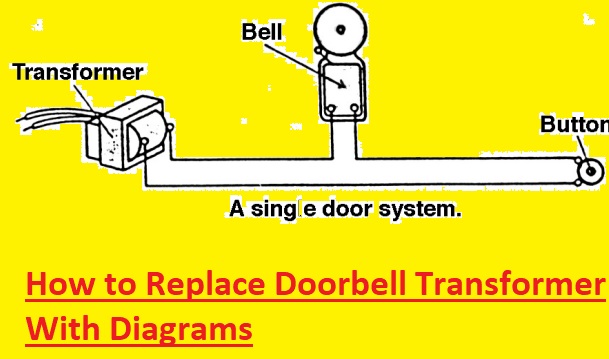

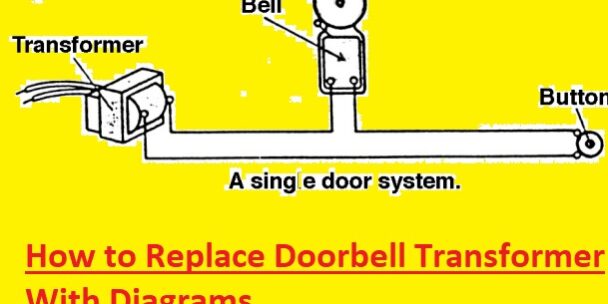

- The transformer is connected on the outer side of the electrical junction box and comes with wire leads that are connected to circuit wires in the box. These are called line voltage wires and have 120 volts. At the front of the transformer, two screw terminals are used to connect two low-voltage wires to the doorbell circuit.
How to Test Doorbell Transformer
- First of all, find the transformer in the doorbell system, search it in the electrical service panel or breaker box. There can be a metallic unction box configured on the panel box or on the wall. When you et the location of the transformer ensure that it is accurate if you have many transformers. In some circles, the transformer configured in the thermostat regulates the heating and cooling of the system. The HVAC transformer is normally connected between the furnace and the thermostat. Read the reading mentioned on the transformer that has about twenty-four doorbell transformers.
- Another method is to check low-voltage wires connected to the transformer. if they are not according to the doorbell chime unit or the doorbell button then it is the wrong transformer.
- To check the operation of the transformer set multimeter values to check AC voltage but twenty-four volts. Connect tester probes with low-voltage screw terminals on the transformer face and connect on lead to each terminal. If the tested voltage is different from the transformer-rated voltage of more than two volts it means the transformer not working well. if the test voltage is two volts the doorbell not working accurately and find doorbell button and low-voltage wiring
Why Replace A Doorbell Transformer?
The transformer to be replaced is due to it not working well or the doorbell transformer is burnt out.
What Doorbell Transformer Should You Use?
The main purpose of a doorbell transformer is to use due to provdies voltage values from 16 volts to 24 volts to doorbells. For nest smart and rin doorbells. It is recommended to use a 16-volt transformer for the ring doorbell and for the nest doorbell.
How To Replace A Doorbell Transformer
Here are different points explained for the replacement of the transformer.
- First of all, find a transformer.
- After findin the doorbell transformer off brekar that ivin power to doorbell transformer. if you do not find the required breaker off all breakers then check which one is right.
- Disconnect doorbell wires connected with two terminals for the transformer. Access the wiring of the transformer by opening the junction box where the transformer and wiring are connected
- Before removing the wires from the box note the connection of the doorbells.
- Now disconnect the connected transformer wiring in the junction box.
- Remove doorbell transformer. That is connected to a junction box with a plastic or metallic nut that configures the transformer. In the junction box, we can unscrew the thin nut remove it from the wiring of the transformer, and then remove the connected transformer.
- Connect new doorbell transformer in connections where old connected. Remove the plastic nut that is connected to the transformer before connection in the junction box. Pull wires in the junction box after that connected transformer and connect the nuts of the transformer
- Wire the new transformer with the existing wiring in the junction box. According to the previous connection layout.
- not connect the junction box.
- On the power on the breaker.
Where is the Doorbell Breaker Located? Easy Way to Findout
Faqs
Do you need an electrician to replace a doorbell transformer?
During replacement, the transformer can get the services of an electrician to fix this issue. Normally transformer is connected to the junction box or close to the breaker
How do you change a doorbell transformer?
How do you know if a doorbell transformer is bad?
Calculate the voltage on the transformer to check it is generating the required voltage. Connect each probe with each screw head. Voltage must be about 16 volts. If the voltage is low replace the transformer to repair the doorbell unit
Where is a doorbell transformer located?
The doorbell transformer connected to the wall close to the alarm keypad or control station. it can be seen at the utility room where the doorbell transformer is connected.
How do I test my doorbell transformer?
Use voltage tested or voltage meter test transformer by setting the meter to 25 VAC. Measure the voltage on the transformer to check it is generating the required current. Connect probes with transformer terminals and check that voltage is about sixteen volts.
What size transformer do I need for a doorbell?
There is a need transformer with a rating of 16 to 24 volts AC, and 10 to 40 VA to provide the required power to the bell.
Can I use any transformer with a doorbell?
Normally wired doorbell uses sixteen volts and most transformers are 16 volts.
