Hi, guys in this post we will have a look at What Is The Red Wire On A Ceiling Fan? Ceiling fans are a popular addition to houses since they are a low-cost solution to circulate air and keep the indoor atmosphere comfortable. If you’ve ever glanced at a ceiling fan’s wiring, you have seen a red wire among the many colored cables. The main purpose of this post is to explain the use of red wire and to offer a thorough getting knowledge of its role in ceiling fan installations. let’s get started What Is The Red Wire On A Ceiling Fan?
Introduction to What Is Red Wire On A Ceiling Fan
To understand ceiling fan wiring, it is necessary to be familiar with the different wires and their purposes. The ceiling fan red wire, in particular, is important in some wiring configurations. We will learn a lot about how ceiling fans work if you investigate their function and connections.
Understanding Ceiling Fan Wiring
Before we go into the technicalities of the ceiling fan wiring red wire,, let’s first discuss the basics of ceiling fan wiring. A standard ceiling comes with four wires: black that is (live/hot wire), white which is neutral wire, green or bare copper (ground wire), and, of course, red wire. Each wire in the electrical circuit has a certain role and must be correctly configured to ensure safe and efficient operation.
Role of the Red Wire
A red wire in ceiling fans is typically used to regulate the light kit or an additional function, like a separate fan motor speed. The red wire is normally the switched wire that conducts the electrical current to the target component. It is important to understand how the ceiling fan wiring red wire connects in many wiring configurations for optimal installation and performance.
Common Wiring Configurations
Ceiling fans can be wired in many configurations, based on the number of switches and the functionality needed. Let’s look at three common wiring configurations and how the red wire in the ceiling fan is used in each.
1. Single-Switch Wiring
The ceiling fan is controlled by a single wall switch in a single-switch wiring system, which runs both the fan and the light at the same time. The red wire is often not used in these connections since there is no need for separate control of the light and fan motor speeds.

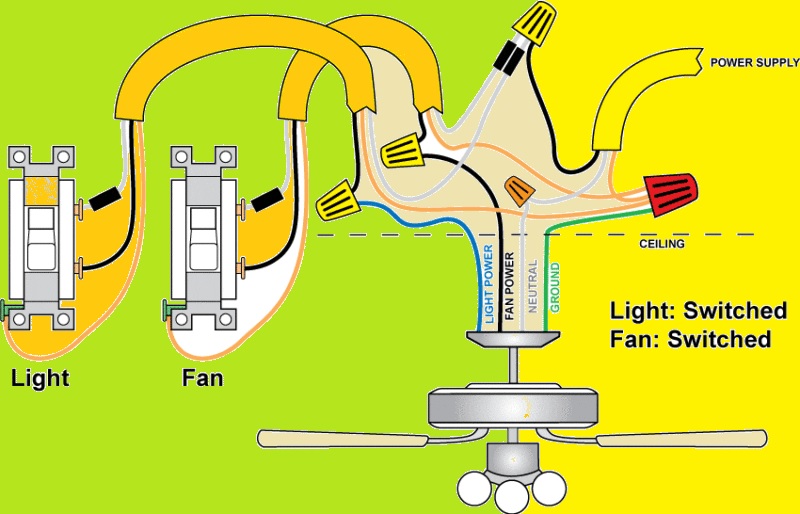

2. Dual-Switch Wiring
Dual-switch wiring entails using 2 different wall switches firs one is used to operate the fan and the other one to control the light. The red wire is used to operate the light kit in this condition. The fan motor is connected to the black wire, while the light kit is configured to the red wire, used for separate control.
3. Three-Switch Wiring
Three-switch wiring provides a high value of control, allowing for independent operation of the fan motor, light kit, and an optional function like fan speed control. The red wire is connected to the extra feature, which comes with independent control in addition to the fan and light switches.
Red Wire Connections
Understanding how to connect the red wire in many wiring layouts is critical for effective installation and performance. Let’s look at the connections for each of the three common configurations stated before.
1. Single-Switch Connection
The red wire is mostly not used in a single-switch wiring design when there is no separate control for the light and fan motor speed. The black wire attaches to the live/hot wire, the white wire to the neutral wire, and the ground wire to the green or bare copper wire. The red wire in this configuration can be capped off or left unused because it is not needed for the fundamental functionality of the ceiling fan.
2. Dual-Switch Connection
The red wire is often used to work the light kit in a dual-switch wiring system with separate controls for the fan and light. The black wire is attached to the fan motor, the red wire to the light kit, the white wire to the neutral wire, and the green or bare copper wire to the ground wire. This configuration provides for independent operation of the fan and light, giving you the freedom to change the illumination and airflow to your liking.
3. Three-Switch Connection
The most extensive control over a ceiling fan is given by a three-switch wiring setup. It enables independent functioning of the fan motor, light kit, and an optional feature such as fan speed control. The red wire is generally used in this configuration to connect the additional function. The black wire connects to the fan motor, the red wire to the extra feature, the blue (if wire used) to the light kit, the white wire to the neutral wire, and the green or bare copper wire to the ground wire. This configuration provides the most customization options, allowing you to independently alter the fan speed, light intensity, and any other supplemental features.
Troubleshooting the Red Wire
While ceiling fan installations are simple, issues with the red wire might occur on occasion. Here are some troubleshooting techniques to assist you in identifying and resolving potential issues:
1. Red Wire Not Connected
If you discover that the red wire is not configured or does not appear to have any purpose in your wiring configuration, it is important that you double-check the manufacturer’s instructions for your individual fan model. Some ceiling fans, especially single-switch models, can not need the use of red wire. If your fan does have a red wire and it isn’t attached, examine the manual or get expert help to verify appropriate performance.
2. Red Wire Connected Incorrectly
If you’ve connected the red wire to the ceiling fan but are still having issues with the fan or light, the wire can have been connected incorrectly. Check the wiring connections again, ensuring the red wire is properly connected to the correct component, whether it’s the light kit or an extra function. If the problem persists, it is best to get the help of an electrician to minimize electrical risks and ensure safe and successful installation.
3. Red Wire Malfunction
In rare circumstances, the red wire itself can be defective or broken, causing operational issues. If you’ve followed the right wiring techniques and are still having issues, consider replacing the red wire. If you’re not sure about the replacement process, find a wire that is according to the manufacturer’s criteria and consult an expert. technician
Safety Precautions
It is critical to prioritize safety when dealing with electrical wires. Here are some important safety measures that must be r when installing or fixing a ceiling fan:
- Before doing any electrical work, off the electricity at the circuit breaker.
- To protect oneself from possible threats, wear proper personal protective equipment like gloves and safety eyewear.
- Follow the manufacturer’s directions carefully and ensure the fan is properly grounded.
- Consult a skilled electrician if you are not sure about any step of the installation or troubleshooting process to avoid accidents or damage to the electrical system.
What Does a Red Wire Connect to?
Depending on the wiring structures, the red wire from the ceiling fan usually connects to the light kit or an extra function, like fan speed control, or another accessory. It works as the switched wire that directs the flow of electricity to the certain component to which it is attached, enabling independent functioning and control. It’s crucial to note that the precise connection of the red wire might change based on the wiring configuration and the manufacturer’s instructions for the particular category of ceiling fan being used.
Can I Leave the Red Wire Unconnected?
In some wiring arrangements, the red wire can indeed be left unattached. Such as, the red wire is often not used in a single-switch configuration when there isn’t a separate control for the light and fan motor speed. To ensure that the red wire doesn’t come into connection with other wires or result in any electrical issues, you can cap off or properly isolate it in this situation. The manufacturer’s instructions for your particular ceiling fan type should be followed to ascertain if it is OK to leave the red wire unattached. Always put safety first, and if you have any questions or concerns regarding the wiring of your ceiling fan, get expert advice.
Can I Connect Red and Black Wires Together?
No, when installing a ceiling fan, you shouldn’t connect the red and black cables together. The roles and purposes of the red and black wires in the electrical circuit are different.
The black wire work as the fan motor’s live or hot wire and is frequently called such. The red wire, on the other hand, is frequently utilized to operate the light kit or an added function. A short circuit or damage to the fan motor or light kit might result from connecting the red and black wires together.
It is essential to follow the manufacturer’s recommendations and configure the red and black wires to the appropriate terminals or parts in order to ensure the safe and effective operation of your ceiling fan.
Where do you Connect the Red Wire on a Ceiling Fan with a Remote?
Depending on the brand and the fan type, there can be different wiring instructions for connecting a ceiling fan to a remote control. Even when using a remote control, the light kit or an extra function is normally still controlled via the red wire on the ceiling fan.
Usually, the receiver unit of the remote control’s red or blue wire must be connected to the accurate red wire from the ceiling fan. The receiver device is often fixed separately in the electrical box or fitted in the canopy of the ceiling fan. For comprehensive instructions on the wiring connections, discuss the manufacturer’s instructions that come with the ceiling fan and remote control.
Do I Need the Red Wire for the Ceiling Fan?
The precise wiring structure and intended functionality of the fan will find if the red wire is required in a ceiling fan installation. The red wire can not always be needed, such as in single-switch configurations where there is no separate control for the light and fan motor speed. The red wire, though, becomes essential in other configurations when independent control of the fan and light is necessary.
The red wire is often necessary if you want independent control over the fan motor and the light kit or if you want to add other features like a fan speed control. It helps the independent wiring and management of individual components.
Can you Leave the Red Wire on the Ceiling Fan?
In some wiring types, it is feasible to leave the ceiling fan red wire unattached. You can opt to cap off or safely isolate the red wire if your ceiling fan configurations do not necessitate its usage for independent control of the light kit or an extra function.
It’s important to keep in mind that disconnecting the red wire only makes sense if it follows the manufacturer’s wiring rules for the certain type of ceiling fan you have. Always check the manufacturer’s guidelines to make sure cutting the red wire is an acceptable choice.
Does Red Wire go Live or Neutral?
In a ceiling fan wiring configuration, the red wire is often attached to the live or hot wire rather than the neutral wire. The live or hot wire delivers electrical current to the fan motor, while the neutral wire work as a conduit for the electrical current’s return.
The black wire in a conventional ceiling fan installation is configured to the live or hot wire, the white wire to the neutral wire, and the red wire, based on the exact wiring layout, is used to operate the light kit or an extra function.
Is a Red Wire Ground?
No, in normal electrical wiring layouts, the red line is not used as a ground wire. The specialized safety grounding conductor in an electrical circuit is the ground wire, which is green or bare copper in color.
In the case of a defect or short circuit, the ground wire serves as a crucial safety component by offering a channel for electrical current. It makes sure the safe operation of electrical systems and devices and helps in protecting against electrical shocks.
On the other side, the red wire is frequently used as a switched wire to control particular parts, such as the light kit or an extra function in a ceiling fan. Its purpose is nothing to do with grounding.
Does the Red Wire Connect to Black or White?
In a typical electrical wiring design, the red wire is not directly configured to the black or white cable. Based on the wiring layout, the red wire is normally utilized for many functions, like operating a light kit or an extra feature in a ceiling fan.
The black wire is linked to the live or hot wire in a standard ceiling fan installation, the white wire is connected to the neutral wire, and the red wire is used for the independent operation of the light kit or an extra function.
It’s important to note that specific wiring configurations can vary based on the manufacturer’s instructions and electrical codes in your region. Always refer to the manufacturer’s guidelines for your specific ceiling fan model to determine the correct wiring connections.
What if I already have a red wire in the ceiling?
If you already have a red wire in the ceiling, it can be a secondary hot wire. That means it is connected with a similar power supply as black wire connected but it can be used to control different lights or appliances. For example, if you have a ceiling fan with a light kit red wire can be used to control light independently of the fan.
if you are not sure what the red wire is for, it is best to discuss it with the electrician. They can help to dins the use of the wire and how to safely connect it to the electrical system.
Do I need red wire for the ceiling fan?
No, you don’t need a red wire for a ceiling fan. But, if you have a red wire, it can be used to control the light on the fan separately from the use of the fan itself. it is done by connecting the red wire to a distinct switch in the wall.
Is the red wire positive?
No, the red wire is not positive. In electrical wiring, the red wire is used to show the switched hot wire. it means that the wire is only energized when the switch is turned on.
What does the red wire hook up to on a ceiling fan?
The red wire on a ceiling fan normally hooks up to the blue wire on the fan. The blue wire is the light wire, so this connection helps to control the light on the fan separately from the fan
How do you wire a ceiling fan with a red wire?
To wire a ceiling fan with a red wire, there is a need to connect the red wire with the blue wire on the fan. There is also a need to connect the black wire on the fan to the black wire in the ceiling. The white wiring on the fan must be connected with the white wiring in the ceiling and the green or bare copper wire on the fan must be connected to the ground wire in the ceiling.
Where do you connect the red wire on a ceiling fan with a remote control?
If the ceiling fan has a remote control, the red wire will not be configured with the blue wire on the fan. but, it will be attached with the remote control receiver. The remote control receiver will then transmit a signal to the fan to turn on or off the light.
What is the function of different wires for a ceiling fan?
The different wires for a ceiling fan have these guidelines
- Black wire: Hotwire that gives power to the fan.
- White wire: Neutral wire that completes the electrical circuit.
- Green or bare copper wire: Ground wire that saves the fan from electrical shock.
- Red wire: Switched hot wire that used to control the light on the fan separately from the fan
- Blue wire: Light wire that give power to the light on the fan.
Why doesn’t my ceiling fan have a blue wire?
Some ceiling fans do not have a blue wire. Since they do not have a separate light kit. If your ceiling fan does not have a blue wire, you will not be able to control the light on the fan separately
FAQs
Q1: Can we use a ceiling fan without connecting the red wire?
Yes, in some wiring configurations, like single-switch installations, the red wire might not be needed for the fundamental operation of the fan.
Q2: What should we do if the red wire is missing from my ceiling fan?
If the red wire is absent from your ceiling fan, it signifies that the fan does not need it. Simply follows to the wiring guidelines that the manufacturer has given for your individual model.
Q3: Can we connect the red wire to control something other than the light kit?
According to the capabilities of your ceiling fan, the red wire in a three-switch wiring configuration can be used to operate an extra function, like fan speed control or another accessory.
Q4: Is it safe to work with ceiling fan wiring on my own?
For some people, installing a ceiling fan might be a DIY effort, but safety must always come first.
Q5: Where can we find more information about my specific ceiling fan model and its wiring requirements?
Consult the owner’s handbook for your ceiling fan model for comprehensive information, and for wiring instructions, get in touch with the manufacturer’s customer service.
