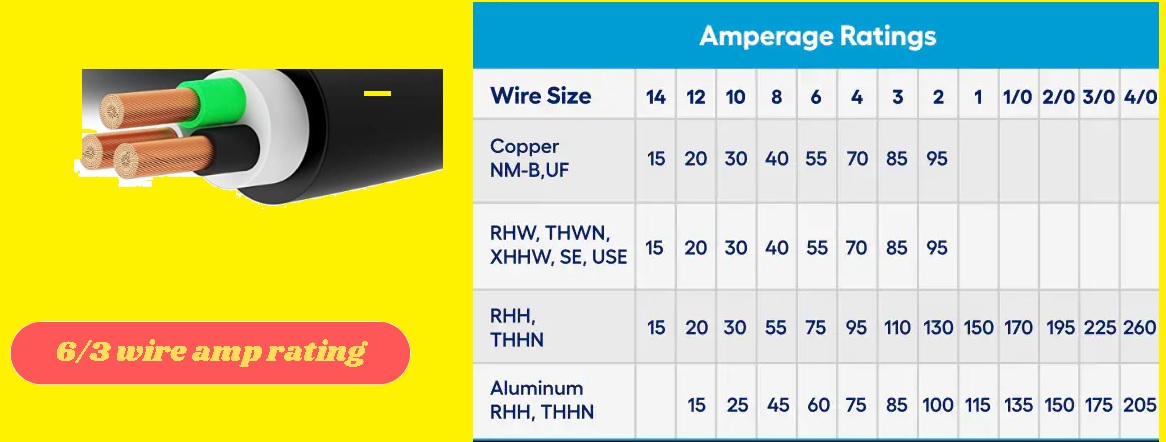

Hello friends, welcome to the new post. Here we will learn Understanding 6 3 Wire Amp Rating: What You Need to Know. The 6-gauge wire is mostly used in marine and residential uses and in industries where the medium-size wire is needed for transferring energy without energy losses. Based on applications, the 6-gauge wire can be of different types of insulation materials and construction. In this post, we will cover the details of the 6 3 wire amp rating, uses, and other parameters. So let’s get started with 6 3 Wire Amp Rating
What is 6 3 wire?
The dimensions of solid copper 6 gauge wire are also called AWG wire and have a value of
- Diameter: 4.1154 mm, 0.1620 inches,
- Cross Section: 13.3018 mm2, 0.0206 inches2.
American Wire Gauge System
The ampere measures the current capacity of the wire without damage due to overheating. Normally, wire amp rating increases with gauge. Small AWG comes with good dimensions, and cross-sectional wire area defines amp rating. Overloading is a safety issue for wire, so proper details of wire dia and current in the circuit must be checked.
Material of 6 gauge wire
Aluminum 6 gauge wire:
Aluminum has lower resistance than copper and has less weight. Aluminum wire with the same gauge as copper is thick but less weight.
Copper Clad Aluminum 6 Gauge Wire:
This wire comes with a core of aluminum, and the external cladding is copper. Due to the existence of aluminum, it is less weighty than solid copper wire with higher conductivity than pure aluminum wire.
Stranded 6 gauge wire:
These wires come with many thin wires and then one solid wire, making it easy to handle. Due to their stranded nature, these wires have a higher diameter than solid copper wires.
Tinned-stranded copper wires:
It has many thin-tinned wires with high corrosion resistance. These wires are commonly used in light industries and marine uses. But are thicker than solid copper wires. Such as the diameter of tinned standard wire is about 5.2mm, and solid copper wire (6 AWG) is 4.1mm.
How Many Amps Can 6/3 Wire Carry?
Normally 6/3 wire comes with an ampacity of 55 amps and is best for different uses. Before using this wire, make sure it is configured with your circuit. The amp rating of the wire is important to make sure the electrical system is working safely and effectively. For 6/3 wire amp rating based on some parameters such as type of insulation on wire and temperature of the working environment.
How Far Can Run 6/3 Gauge Wire?
The wire length is based on ampacity. Normally 6/3 wire can carry about 55 amps for more than 200 feet, but it is based on different factors like wire insulation type, voltage flowing, and temperature.
For longer-distance wire, use a larger gauge wire or connect more wiring.
| 55 Amps (Voltage Requirement) | Maximum Distance |
|---|---|
| 120 Volts | 76 ft |
| 240 Volts | 153 ft |
| 480 Volts | 306 ft |
Amp Ratings for 6 Gauge Wire
| Features | Copper | Aluminum |
| Standard Ampacity @ 30°C | 55 Amps | 40 Amps |
| Ampacity for @ 75°C | 65 Amps | 50 Amps |
| Ampacity for @ 90°C | 75 Amps | 55 Amps |
6 AWG ampacity
The ampacity of wire based on length in inverse proportional
The length of the wire increases by 50 feet, and the ampacity of the wire reduces by 10 percent for painting energy losses.
Let’s suppose 100 feet of 6 gauge wire is used for 60 degrees Celsius or 140 degrees Fahrenheit. Its ampacity will be
Ampacity = 55 x 0.8/1.2 = 36.66 Amps.
Here we make a table for the ampacity of wire for different temperatures and length values.
| Wire Length | 60°C | 75°C | 90°C |
| Default | 55 | 65 | 75 |
| 80% Rule | 44 | 52 | 60 |
| 50 feet | 40 | 47.2 | 54.5 |
| 100 feet | 36.6 | 43.3 | 50 |
| 150 feet | 33.8 | 40 | 46.1 |
| 200 feet | 31.4 | 37.1 | 42.8 |
6-AWG ampacity in Free Air
Let’s suppose we have aluminum and copper wire of the same thickness. Aluminum wire comes with high resistance but low ampacity.
If both wires come with the same weight, the aluminum wire will be less weight and have less resistance and high ampacity.
| Wire Material | Ampacity in Free Air | ||
| 60°C | 75°C | 90°C | |
| Copper | 80 | 95 | 105 |
| Aluminum | 60 | 75 | 80 |
6/3 romex ampacity
The value of the ampacity of 6/3 Romex wire is about 50 ampers. So it has the feature to handle 50 amp current without overheating.
Ambient temperature affects amp rating value. High-temperature conditions reduce the amp rating.
6/3 Romex wire is the non-metallic heated cable made with 3 conductors, 2 live and one grounded. The live conductor is 6 AWG and the ground conductor is 10 AWG.
The ampacity of this wire is based on small conductors, which are 6AWG for this type.
What Is 6/3 Wire Used For?
6/3 wire is commonly used for electric stoves and dryers that need a certain amount of current to operate.
It comes with 3 insulated conductor wires, each 6 gauge. This wire is best for high-current applications like welding instruments and larger AR compressors.
It is also used for RV and camping setups for power to devices that need high current.
How Far Can We Run 6/3 Gauge Wire?
| 55 Amps | Distance |
| 120 | 88 feet |
| 240 | 177 feet |
| 480 | 354 feet |
Does the material affect the amp rating?
The ampacity rating of the conductor is based on the material of conductors, diameter, and rating temperature and condition where the wire is connected.
|
Wire Material
|
Temperature (°C) |
| Copper (6/3 AWG) | 60 |
| Copper (6/3 AWG) | 75 |
| Copper (6/3 AWG) | 90 |
| Aluminum (6/3 AWG) | 60 |
| Aluminum (6/3 AWG) | 75 |
| Aluminum (6/3 AWG) | 90 |
How Many Amps Can a 6 AWG Wire Handle?
| NM, TW, & UF WIRE (Copper Conductor) | SE CABLE (Copper Conductor) |
|---|---|
| 12 AWG – 20 AMPS | 6 AWG – 65 AMPS |
| 10 AWG – 30 AMPS | 4 AWG – 85 AMPS |
| 8 AWG – 40 AMPS | 2 AWG – 115 AMPS |
| 6 AWG – 55 AMPS | 1 AWG – 130 AMPS |
How Many Watts Can A 6 Gauge Wire Handle?
With 240V, a 6-gauge wire carries 12,480 watts. Which is equal to 12.48 kW.

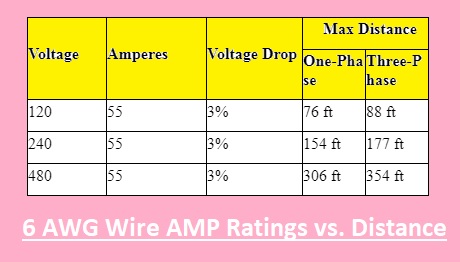

6 AWG Wire AMP Ratings vs. Distance
The maximum distance we can run for wire is based on conductor type, voltage, ampere, voltage loss, and phase category.
With the use of 6 AWG copper wire, the highest distance that can run 55A for 120 volts is 76 feet. With that 240 volts, the area can be 154 feet, and for 480 volts, it is 306 feet. This data is used for single-phase circuits.
A three-phase system increases the length of the 120, 240, and 80-volt circuits through 88, 177, or 354 feet. Since there is only a three percent voltage loss. It is also not suggested to use aluminum wire with 6-gauge
Does Its Amps Change With Distance?
Distance does not have an effect on DC. But most conducts come with resistance that increases the length. Ten miles of wire will have higher resistance than one foot of the same wire. The longer wire has high voltage losses, which cause the decreased current if the source voltage is constant.
How many amps can #6 wire handle?
The ampacity of 6 AWg wire in some installations is about 55 to 65 amperes. It can carry 55 amps, 60 amps, and 65 amps.
What Size Is the Ground in 6/3 Wire?
| Product ID# | 12905 |
|---|---|
| Conductor Material | Annealed Copper |
| Conductor Size | 6 AWG |
| Ground Conductor Size | 10 AWG |
| Ground Type | With Ground Wire |
Is a Conduit Necessary When Installing a 6 3 Wire Underground?
It is based on installation conditions and local electrical codes. In some conditions, 6/3 wire is run without conduit, but the use of conduit can provide more protection for the wire and ensure electrical code compliance.
Will 6 3 wires fit in 1 conduit?
As 6/3 wire comes with 3 conductors, not including grounding, it needed about 3/4 inch conduit for all types of conduit, such as EMT, GRC, and IM. The best is to use a 1-inch conduit.
What does the 6 3 mean for wires?
Based on the wire and the use of cable, 55 to 65 amps can carry the wire. 6 is AWG and 3 is some wires in cable.
Can 6/3 handle 60 amps?
NM-b works on 60-ampere breakers if the operating load is more than 50 but not 55 amperes. If it is 56 amp, then do not use 6/3 G nm-b and a 60 amp breaker.
What is 6 3 wire good for?
6/2 Wire, 6/3 Wire, and 6/4 Wire
- 6/2 Wire: It has two wire conductors and one ground wire.
- 6/3 Wire, It has three wire conductors and one ground wire.
- 6/4 wire, it has four wire conductors and one ground wire.
6/2 Wire
- The 6/2 wire comes with 2 conductors one is a live wire and the other is neutral with ground wire features. This wire is best to use for 240-volt applications that do not work with a neutral connection. This wire is used for single-phase power applications since not have other live or hot wires.
- It also has features for handling about 55 amps according to installation demands.
6/3 Wire
- 6/3 wire comes with 2 conductors out of them two ar live and one neutral with ground features. It is used for 240-volt applications that use neutral wire. The 6/3 wire has features to handle about 55 ampers. It is used in electric dryers, its neutral wire helps to provide a return path for unbalanced currents.
6/4 Wire
- 6/4 wire comes with 4 conductors 2 are live, one neutral and one is ground wire. These wire combinations are used for 240 volts loads using different circuits or ground point.
- It has features for handling 55 amps, 6/4 wire used in different electrical circuits like it make connection of generator with subpanel.
Can I use 6-3 wire outdoors?
Yes. Using an accurate type of wire for any outdoor application is good. Such as the need to use wire with the best insulation type that can handle moisture, sunlight, and high-temperature conditions.
THWN2 wire is best for outdoor applications since it has a moisture-resistant thermoplastic nylon coating.
Can 6-gauge wire used for both indoor and outdoor applications?
The 6 gauge wire can easily be used for indoor and outdoor circuits since it has safety features from the environment. In the case of outdoor applications, it has resistance to moisture and different weather conditions.
Types of 6/3 Wire
THHN/THWN:
- It is commonly used for indoor applications and uses conduits. It can normally be found in feeders and branch circuits.
XHHW:
- It is used in conduits and is mostly used in high-resistance projects. It is also used in feeders.
USE-2:
- It is used in external supply to the structure’s service equipment.
UF-B:
- It is used for direct burial without conduit. 6 AWG UF-B cables help to give power to medium-load structures or underground circuits that power pond pumps, etc.
SER:
- It is used in buildings and homes to connect the main power source with the inner distribution panel. The 6 gauge SER wire is best for service entrance.
RHW:
- The 6 AWG RHW wire is best for damp locations such as basements. It needed conduits for connections.
NM/Romex:
- The 6 gauge Romex wire is best for larger circuits in residential inner settings like power outlets.
MHF:
- The 6 AWG MHF wire helps to connect the electrical system of the mobile home to the power supply.
AC/MC:
- AC means armored cable, and MC is metal-clad. Both are best for medium loads in commercial applications.
Copper vs. Aluminum Conductors for 6 Gauge Wire
Copper Conductors
- Its ampacity is 55 ampers for 6 gauge with low resistance and provides good durable features.
- Its disadvantage is that it is high cost and high weight and difficult to manage for larger connections
Aluminum Conductors
- It is lower weight than copper wire, low cost and easily handled for larger applications.
- It has lower ampacity than copper which is 40 amps for 6 gauge.
- It has high electrical resistance and uses larger gauges with the same capacity as copper.
Read Also:
FAQs
What is the amp limit for 6/3?
6/3 is protected with a 60-amp breaker. As there is no 55 amper breaker, code allo to use the next larger standard size.
What do you use 6 3 wire for?
The electric furnace, larger A/C compressors, or other 240 loads. It is 2 live and ground. If 6/3 with the ground can be used for a subpanel of 60 amp,.
Is 6 wire good for 50 amps?
For 50 amps, a 6 gauge wire is used. A 50-amp breaker is used to power many devices. But the kitchen can need only 50 amps, and the electric dryer also needs a 50 amp breaker.
How many amps is a 6 wire?
The ampacity of the 6 AWG wire is:
6 AWG Copper with 60°C insulation (like TW, UF): 55 Amps. 6 AWG Copper with 75°C insulation (like RHW, THHW, THWN): 65 Amp
What size wire is 100 amp?
Normal wire size for 100 amp service is 5 AWG or 2 AWG for copper wiring and 2 AWG, 1 AWG, or 1/0 AWG for aluminum or copper-clad wiring. These sizes are used for direct burial.
What size wire is 60 amp?
A 60 amp breaker will need 4 awg size wire for maximum protection.
What size wire for 40 amps?
An 8 AWG wire is the minimum size wire for 40 amps of current.
