Hi guys, I hope you all are well and will be enjoying your lives. In today’s tutorial, I am going to demonstrate you Introduction to cup Anemometer. In the preceding part of this tutorial, I have given the introduction to Anemometer. I hope all of you have read it, if not then go and study it so that you can get some knowledge about Anemometer.
Now come to our toady article which is cup anemometer.
“Ánemon” is a Greek term which meaning is wind. The submissions of the anemometer is the calculations of the breeze velocity. Most frequently, the cup anemometer is used to calculate the speed of the wind. This air movement meter has a perpendicular axis and three or four egg-formed half-cups that take in the wind. Its working principle is simple the sturdier the breeze move, the quicker the half-open pliable cups move. The velocity of the cross revolution governs the breeze velocity. I have also posted an article on Introduction to Thermal Anemometer you can read it. Friends if you have any questions about the anemometer and its type you can ask it in the comments. So, let’s get started with an Introduction to Cup Anemometer.
Introduction to Anemometer
- A cup anemometer is used to calculate the velocity of wind. The three flat aligned sphere-shaped cups, which are static at right angles or in a stellar form on the perpendicular axis of the cup anemometer, measure the breeze velocity.
- It working principle is very simple the resilient the breeze blows, the quicker the partial open plastic cups move. The velocity of the cross revolution regulates the breeze speed.
- This PCE breeze flow meter, also denoted as the cup anemometer, proposals an important benefit in association to the typical impeller anemometers.
- The breeze track is not of vital significance in the calculation of the movement rate. In instruction to be capable to finds the breeze velocity finely, the cup anemometer, an alteration to the impeller anemometer, does not have to be retained correctly in the breezeway.
- The placement of the half cups in changed directions confirms that the cup stellar is fixed in indication free of the path. Thus, the flat and less weight cup responds to even the lowest movement speeds. With the perseverance of 0.1 m /seconds, the gaging assortment of the cup anemometer is from 0.9 m / s up to 35 m / s. There are dissimilar components for the movement speeds with m /second, km/hour, knots, miles/hour, ft/min accessible.
- The cup anemometer measures the numeral of revolutions per minute and thus the breeze velocity very precisely. The breeze velocity can be expediently read out from the LCD show (28 x 19 mm) of the cup anemometer.
- The anemometer of PCE Tools stocks extreme and least standards, which can be suitably delivered over on the display far ahead.
- To confirm that the previous dimensions’ consequences showed can be observed again, the cup anemometer also has a concrete data grasp task. The calculation statistics are noted and stowed by a valuable 100 point statistics logger.
- The cup anemometer is manifest IP 65, encounters all the circumstances, and is thus secure in contrast to the dispersion of dirt and humidity.
- To save the battery of an anemometer to discharge when it is not in working condition, the meter has an auto power-off controller. After some meter turns off when it finished its working.

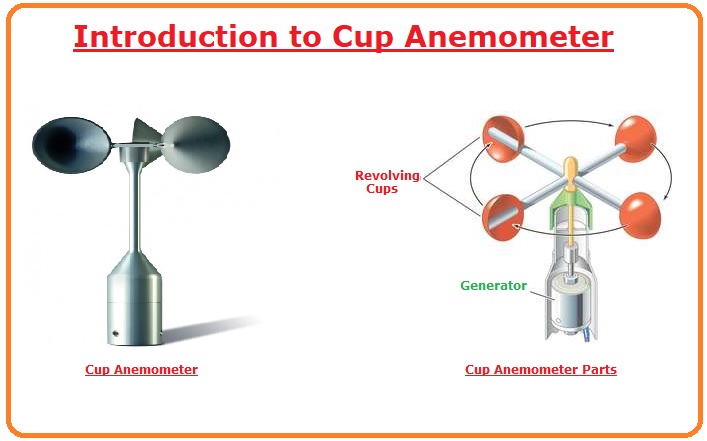

Working principle of Cup Anemometer
- The arms are connected to the perpendicular pole. As the breeze moves the cups revolve creating the pole rotation.
- The durable the breeze blows quicker the pole rotations. The anemometer sum the no of revolutions which is used to compute the breeze speed.
Applications of Cup Anemometer
- Due to its compacted malleable covering, its convenient magnitude, and its little mass of only180 grams, the cup anemometer PCE-A420 proposals extreme movement and elasticity.
- It can be used where the moveable breeze velocities essential to be calculated.
- The cup anemometer permits precise breeze velocity calculations of up to 35 m / s.
- This anemometer is vital were firm and exact breeze velocities close to the earth have to be check.
- Because of its modest action, the cup anemometer is also appropriate for gathering the climate statistics for secretive usage.
- In the weather-related arena, for improved global comparability, the breeze velocity is computed 10 meters overhead the earth.
That is a detailed post about cup Anemometer. If you have any further query ask in the comments. Thanks for reading. Have a nice day.
