What is an Optocoupler
The working principle of an Optocoupler
The input impedance of the photocoupler is a small value that is about some hundred ohms and the impedance of the interference source is high which is 105 to 106 ohms. Based on the voltage division rule, if the amplitude of interference voltage is high spurious voltage given to the input of the photocoupler is small and can produce a small value of current, that is suppressed since there is not enough value to make the dipole light
The photocoupler of the input circuit and output circuit do not have an electrical connection and the other is not common ground, distributed capacitance is also less, and insulation resistance is of high value. So not easy to feed the noise from one side of the circuit to the photocoupler to the other side, affecting the production of interference signals from common impedance coupling.
Different Types of Optocoupler
Photo-Transistor Optocoupler
Here you can see the inner structure of the phototransistor optocoupler. The transistor used can be either PNP or NPN. Phototransistors of two types based on output pins. In the above photo, there is extra pins that innerly connected to the base of the transistor. Pin 6 is used for controlling the sensitivity of this module
Pin is used to connect with ground or negative through the use of a high-value resistor. here false triggering due to noise or electrical transients can regulated.
Before connection of the phototransistor optocoupler must know the transistor rating. Â PC816, PC817, LTV817, and K847PH are a mostly used photo-transistor-based optocouplers. .
Photo-Darlington Transistor Optocoupler
here you can see that there are two types of symbolic representations inner structure of photo Darlington according to Optocouler.
Darlington Transistor is a 2 transistor pair combination of one transistor control 2nd transistor base. here Darlington transistor offers high gain value. Normally LED releases infrared light and regulates base of the transistor pair.
This opto coupler is also employed for DC circuits based on part of isolation. The 6th pin is connected to the base of the transistor used for controlling transistor sensitivity.
Common examples of photo-Darlington based optocoupler are  4N32, 4N33, H21B1, H21B2, H21B3
Photo-TRIAC Optocoupler
here you can see a photo of the inner structure of TRIAC based opto coupler. TRIAC is used for AC-based circuits or switching processes. LED can be controlled with the use of DC and TRIAC used for controlling AC. Optocoupler offers good isolation also. The photo triac-based opto couplers are IL420, 4N35 etc are examples of TRIAC-based optocouplers.

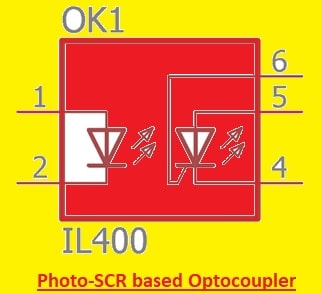

Photo-SCR based Optocoupler
SCR or silicon-controlled rectifier also called thyristor. Here you can see a photo SCR-based opto coupler. That is like other opto coupler LED releases infrared. The SCR is controlled through the intensity of the LED.
Photor SCR opto couplers are used in AC circuits. Common example are MOC3071, IL400, MOC3072 etc.
Advantages of Optocoupler
- it is small in size and less weight so can easily be managed.
- it is low price component and easily operated
- An optocoupler is best for AC and DC high-voltage signals.
- It is also used for detecting the existence of objects for different sensor uses.
- They also have longer working life about many decades.
- It comes with a good response for lower frequencies.
- it does not have contact bounce no circuit wear and uses less energy.
- It comes with a high switching frequency due to short switch-on and switch-off times,
Disadvantages of Optocoupler
- They do not have features to handle high current values.
- They needed external biasing voltage to operate.
- High-frequency response is not enough.
- Phototransistors-based optocouplers do not have the same linear features for variation in light input and output current as photo diode-based types.
Applications of optocouplers
- Photocouplers are used to make different logic circuits as anti-interface operation and isolation working of photocouplers is good compared to transistor and logic circuit make.
- Switching circuits it used to provide separation between the control circuit and sitch that is not easy to get for the normal electronic switch.
- it is also used in bistable output circuits since light-emitting diodes are connected in series in two tube emitter circuits. That solves output and load isolation ground issues.
- Linear photocoupler is used for linear circuits having high linearity and good galvanic isolation properties.
Faqs
- The optocoupler isolated output and input circuits and operated like a switch connecting two isolated circuits on boards. If current not flowing in LED phototransistor devices also stop working and get off.
What is the most popular optocoupler?
- PC817 is a famous optocoupler used in electronics. It is a standard circuit having a phototransistor and infrared LED diode that separates two parts of the circuit and avoids transmission of undesired noise and ground loops.
What is the primary purpose of an optocoupler?
- The main use of an optocoupler is a galvanic separation between circuits. The use of transformed is high cost and done with AC circuits. For safety uses operating mains connected from low voltage electronics parts.
What are other names for optocoupler?
- An optocoupler also called an opto-isolator, photocoupler, or optical isolator used to transfer signals between two isolated circuits with the use of light.
Is an optocoupler a relay?
- Optocpuler relay is used to isolate control signal and load. These compact DIN rail configured relays come with load voltatge about 250 VAC/48VDA, and current ratings are about ten amperes. MOSFET, transistor, or TRIAC output options are used.
Is an optocoupler active or passive?
- organic optocouplers are polymer-based electronic passive optical components mix and split transmission data from polymeric optical fibers.
