What is Frameless stencil, Features, uses

A PCB or SMT stencil is a thin stainless steel sheet that has openings that are laser cut and employed for solder paste applications on the board for making connections of SMD components. PCB stencils are used for solder paste applications on required points on the board, which makes easy connection of components in the required position. There are different types of stencils, like framed stencils and frameless stencils. We will cover details about frameless stencils and their practical applications. Let’s get started.

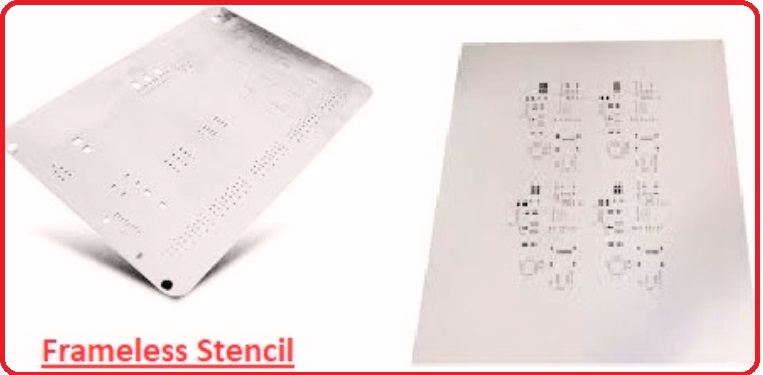

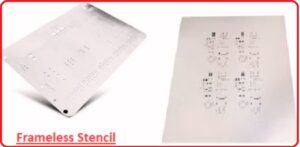

What is a Frameless Stencil?

• A frameless stencil solder paste stencil that part of PCB manufacturing. As compared to a frame stencil, a frameless stencil does not use permanent adhesion for the frame.
• Its design is such that it works with stencil tensioning systems like reusable stencil frames.

• A frameless stencil is low-cost and has lower prices than a framed stencil; it is a low-cost option for PCB production.
• The frameless stencil has good quality features and high performance that help to apply solder paste easily in the PCB assembly process.
• It also saves storage space; it does not have a permanent frame, so it is stored in a compact design and costs less than a framed stencil.
• It is beneficial for PCB suppliers who need a bulk quantity of stencils for storage.
• Frameless stencils are used for different applications, like for fine-pitch components. It also has a simple opening wall that provides accurate solder paste applications on boards having a pitch of 16 mil and is preferred for micro ball grid array components and connections with small-scale electronic parts.
• Frameless stencils also take less time for high-speed production. Its turnaround time is 24 hours standard, which helps us to deliver products to users within a given time.

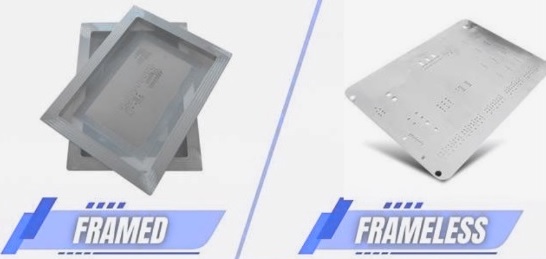

Types of smt Stencils

• PCB stencils are defined based on mounting and opening type. Different types of PCB stencils are used. Common types are.

Framed Stencil

• It comes with a solder paste stencil that is laser-cut and connected with the frame permanently. for connecting the stencil, use the edge to connect the stencil foil in the frame.
• A framed stencil is preferred for bulk volume PCB screen printing. That design further processes a smooth opening that is used for 16 mils or less of spacing.
• It is good stencil printing for making high-volume boards; framed stencils also save boards from high pressures and wear.

Frameless SMT Stencil

• frameless stencil other name is foil, which is a laser-cut stencil made for operating with a reusable stencil frame that is called a stencil clamp system.
• SMT stencil frameless does not use permanent adhesion on the frame.
• It is a lower-cost option than a framed stencil; it not only saves money but also reduces delivery time.

Electroformed SMT Stencil

• An electroformed SMT stencil is a nickel-based stencil that is permanently connected with the stencil frame through a mesh rim that configures the foil in the frame.
• This stencil has good paste release features. It is also used for wafer bumping and flip chips.
• Its trapezoidal sidewalls provide good solder paste application.

Frameless Stencil Advantages

low cost

• It is good for prorotyping or small batches that do not have high prints.

Flexible

• Based on the design, a foil stencil is applied with reusable tension frames. For manufacturing, a metallic frame is used for stretching and holding foil taut at the time of printing.
• A frameless stencil is put on a frame and connected on the edges, then the frame applies tension over the foil.
• In this way, a single frame gets a different foil stencil. This stencil is considered versatile in nature through the standard tension system, where one stencil is used with different printers by putting it into an accurate frame design.

Easy to store

• This stencil cover takes up low storage space without a bulky frame. Many foil stencils can be easily stacked, which requires low volume as compared to framed stencils

Faster turnaround

• These stencils are preferred for making prototypes and short productions. Since no rigid frame is needed to make, frameless stencils are made and delivered faster and have a lower cost than framed stencils.

Lower shipping rate

• Frameless foils come in a smaller footprint and are low-weight, reducing overall packing volume and transportation expenses.

Frameless Stencil Limitations

• It needed a tensioning system to provide quality prints that have less rigidity.
• It is not preferred for high volume,
