What is a Screw Jack? Features, Working, Types

The jackscrew is a type of jack that is operated with a turning leadscrew. It is used for lifting moderate and heavy loads like vehicles and is also used for raising and lowering aircraft horizontal stabilizers. It is compatible for lifting heavy loads and parts in different industries. In this post, we will cover details for screw jacks’ working, features, and other parameters. So let’s get started.

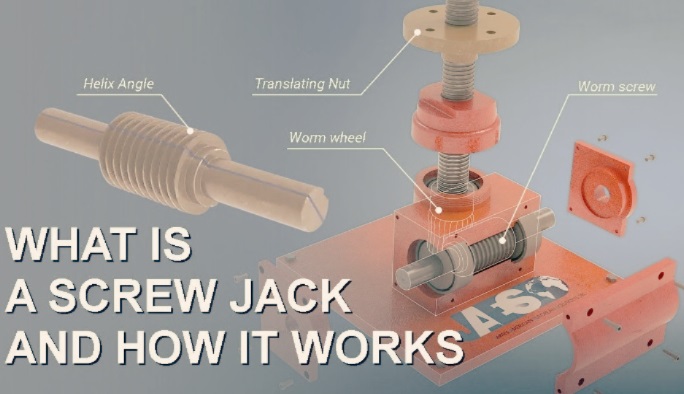

What is a Screw Jack?

• A screw jack, also called a jackscrew, is also called a linear actuator, is used for lifting and shifting heavy loads and performing linear motion operations for certain axes.

• For these works, we can also use lead screws, ball screws, and roller screws as well.

• The screw jack is used for heavy-duty operations and high loads; hydraulic systems are older methods that are low effecctive methods than screw jacks.

• Hydraulic systems waste energy when fluid moves with constant pressure, either work needed for hydraulic positioning or

• The screw jack comes with a heavy-duty vertical screw that has a load table configured on top that screws into a threaded hole in the static frame, and a larger base lies on the ground.

• The rotating collar on the head of the screw comes with a hole where the handle’s metallic bar is connected.

• If the handle is moved clockwise, the screw moves out of the base, and the lift load lies on the table.

• For supporting larger loads, forces, and screws, it is made with Acme threads.

• A screw jack is defined as a translation or reciprocating type, and a translating screw is used for moving a lift shaft or screw in a worm gearbox; a rotating screw jack provides a static lift shaft, and lifting nuts move over it.

Screw Jack Working

• A screw jack is used for lifting, positioning, and aligning different loads and holding them.

• It is reliable and provides synchronization for different uses that alternative methods do not handle well.

• This tool is used in different areas like steel working components, medical and laboratory tools, and nuclear and aviation industries.

• Screw jacks are also used as a replacement for older types of pneumatic and hydraulic systems.

• The screw jack is used for transforming rotational motion into linear motion. It uses features of screw threads to provide mechanical features and is also used for force amplification.

• Screw jacks come with gearbox components like worm gear or bevel gear systems with transmission components such as ball screws or roller screws.

• It is used to convert rotary motion into linear motion using a motor.

• It is used to perform various operations, such as tensioning, locking, pivoting, rolling, lifting, pulling, and lowering loads ranging from a few kilograms to tons.

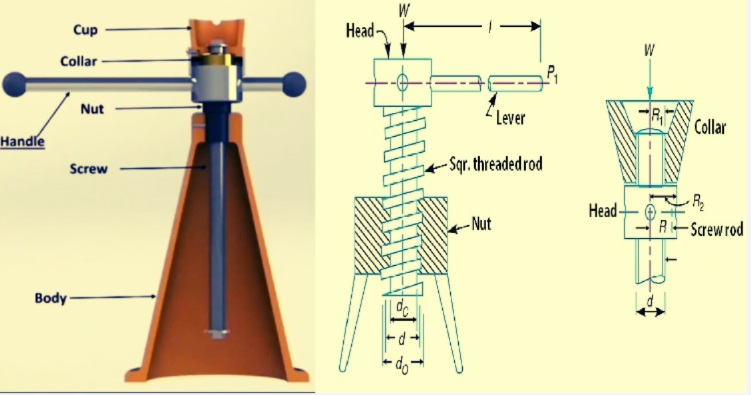

Different parts of Screw Jack

There are different parts of screw jacks, like threaded rod, worm gear, housing, and handle. It transforms rotary motion into linear motion and is used for lifting heavy loads and changing height. The main parts of a screw jack are as

Screw

• The screw is the main part of the jack screw and normally the threaded rod. When it rotates, it converts rotational motion into linear motion, helping to provide lifting of loads.

Nut

• A nut is a threaded part that comes with screw threads. When the screw rotates, the nut moves to provide linear motion for the load.

Handle or Drive Mechanism

• The handle process is the source where force is applied on the screw, resulting in rotation. It can have a manually operated handle according to the jack screw type.

Base or Mounting Plate

• The base or mounting plate provides stability for the jack screw. It can be fixed to a ground or stable place to help the jack screw easily lift or lower loads without any hindrance.

Load Platform

• The load platform area where the load is connected. It has different types, like a cradle and connection point, and is made for holding loads for lifting and lowering purposes.

Housing or Enclosure

• Its housing provides protection to the inner parts of the jackscrew. It controls external dust particles from entering the inner casing and also provides safe places for moving components.

Safety System

• Safety systems come with different parts that help to provide safe working for jackscrews. It comes with limit switches for avoiding overextension, an emergency stop button, or load-holding operations for checking that the load is in position, also if power is lost.

Types of Screw Jacks

Translating Screw Jack

• In this design, rotation of the worm wheel directly operated on the lead screw, which caused linear motion. If the end of the lead screw is not fixed according to the user’s demand, there are features for lead screw rotation due to friction existing between the screw threads.

Keyed Screw Jack

It is like the abovementioned type, but the lead screw rotates to avoid turning. It is important when the end of the lead screw does not have a connection with the load. It has two types of encrypted and non-encrypted features in different uses for providing different screw jacks connected to shared loads.

Rotating Screw Jack

• In this type, the lead screw is fixed with the worm wheel; as a result, the rotation of the worm wheel causes the lead screw to rotate. As a result, the nut moves with the lead screw if the nut is connected to the load.

Worm Gear Screw

• The worm gear screw, also called the worm drive, is a mechanical component that comes with a threaded screw design called a worm and a toothed wheel known as the worm gear wheel.

• The worm comes with a helical thread that engages with the teeth of the gear, providing rotational movement for the worm to cause rotation of the gear.

• This feature is good for controlling speed and providing high torque, making it good for different industrial uses, like machines, vehicle steering systems, and conveyor systems.

• Worm gear screws have features for holding accurate positions and provide self-locking features since they have high friction for worm and gear teeth and avoid back driving if the load is not turning the worm.

Ball Screw Jack

• The ball screw jack is a mechanical device that uses a ball screw system for transforming rotary motion into linear motion and provides easy lifting in any direction with lowering and heavy-weight positioning.

• It comes with a threaded screw shaft with a ball bearing enclosed for protective housing.

• If a screw is rotating, ball bearings move over the helical groove of the screw, converting rotational input into linear motion.

• This feature provides benefits like high efficiency, low friction, and low backlash with high accuracy.

• So it is used in the manufacturing industry, automation, and materials handling for accurate control and easy lifting

Hydraulic Screw Jacks

• A hydraulic screw jack is a mechanical device that operates with hydraulic fluid for high lifting and lowering processes for accurate control.

• It comes with a threaded screw, hydraulic cylinder, and reservoir for fluid. If hydraulic pressure is applied to the cylinder, it applies force on a screw, causing rotation and raising and lowering of the load.

• Hydraulic screw jacks provide high load-bearing features, smooth motion, and features for holding heavy loads.

• It is part of different industries, like vehicles, manufacturing, and lifting loads.

Advantages of Screw Jacks

• It offers good mechanical features for lifting heavy loads with accurate control for proper positioning.

• It has safety measures for avoiding overextension.

• It is used for vehicle maintenance and operates manually and with motors

• It has a longer working life and a lower-cost option than a hydraulic system

• It is an energy-efficient tool and uses low energy.

• It has a compact design and needs low downtime.

Limitations of Screw Jacks

• It has slower operations than the hydraulic system and limited speed for fast lifting.

• It needs high force for manual working

• Larger jackscrews are heavy and cause lead screw rotation if not accurately connected.

• It is not good for high-speed motion
