A CV axle, also known as a half shaft, is the main component that causes vehicle rotation. Its operation is to deliver power from the engine to the wheels. But is the CV axle not working well, affecting steering work and making driving difficult? In this post we will cover the detailed features of the CV axle and related factors. So let’s get started. Introduction to CV Axle

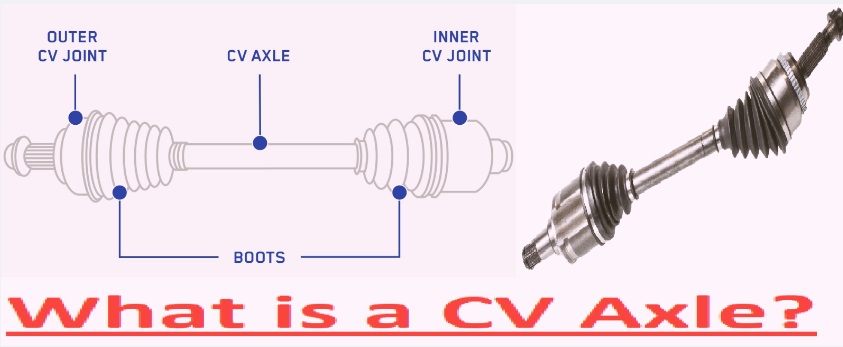

What is a CV Axle?
- CV axle stands for constant velocity axle, which is a shaft-like design used for power transmission to the wheel, handling turns without changing speed.
- Front-wheel-drive vehicles come with CV axles, also seen in all-wheel-drive and rear-wheel-drive vehicles, where an independent suspension system is employed.
- universal joints used in older front-wheel-drive vehicles, such as the Citroën Traction Avant, and also the front axles of all-wheel-drive vehicles such as Land Rovers.
- Universal joints come with cross-like pivots that make connections between two forked carriers. These joints also cause angular velocity changes.
- The CV axle’s most important feature is maintaining a constant velocity of wheel rotation irrespective of axle angle.
- same as without considering wheel angle during a turn, constant power delivery through constant velocity axles.

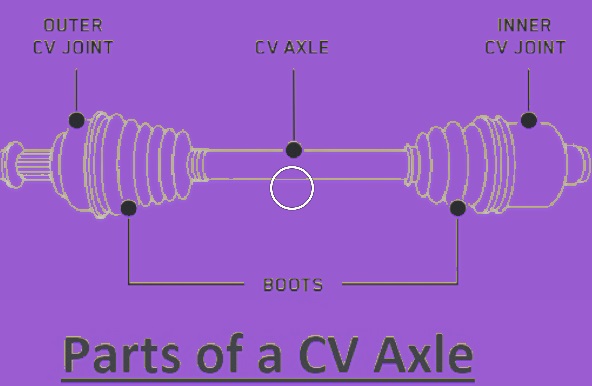

Parts of a CV Axle
- The CV axle comes with an inner CV joint that makes a connection between the half shaft and the transmission, and an external CV joint that makes a connection between the CV axle shaft and the front wheels.
- CV axles move through these joints when vehicles travel on rough or bumpy roads.
- If your vehicle does not have CV joints, the axle can be damaged during turns or when moving on bumps.
- with the internal and external CV joints also having grease-filled boots
Read our related guide What Are Ball Joints, Features & Function in a Vehicle?
Working of CV Axle
- CV axle is employed for vehicles where independent suspension exists on wheel drive. In this suspension type, left-right wheels move up and down on the road.
- For a constantly moving wheel and when the front wheel’s left-right turning is needed, torque is transferred with CV axle joints that also transmit motion at an angle. For these functions, the shaft must have a flexible structure.
- A CV axle comes with two CV joints. The first one is inner, and the second one is outer. The CV joint of the internal type further has 3 rollers on the spider that move inside the CV joint structure, which control CV axle extension and contraction.
- Inner CV joints also provide a working range for low-angle values. The outer CV joint structure helps to transmit rotation with a larger angle.
- These two joints are filled with grease and have rubber seals.
Main Causes of CV Axle Failure?
Normally, CV axles come with a longer working life, but there are some reasons that make CV axles fail.
Boot damage
- Boot damage is a commonly seen reason for CV axles. Due to a boot rupture, the CV axle leaks grease, and it also affects lubrication. Water and debris were added in the boot due to a tear which caused damage.
Lifted Vehicle
- Use of a lift kit on the vehicle makes a separation between the wheel and the differential hub. It sets the CV axle at a high angle, causing CV axle damage.
Wear of an axle
- CV axles also get damaged due to wear; driving conditions also affect the working life of CV axles.
Signs of a bad CV Axle
Read our related guide What Do Struts Do On A Car
Vibration during driving
- Normally, we do smooth driving without any hindrance. But if facing vibration, that is not normal driving. That is a sign of a bad CV axle.
- At the start, vibration is low but increases with time. that we can easily feel on the wheel. vibration due to a broken axle. if a CV joint not spinning accurately cause car vibrations.
- Due to vibrations, steering also becomes difficult. that damaged tires and other components of the vehicle.
Grease on Tires
- If you find grease on tires, that means the CV axle is not working well. If a grease leak occurs, it causes the boot axle to rupture. Since the boot manages grease for smooth CV joint working, due to boot breakage, grease leaks.
- Without grease, lubrication is reduced, which increases wear. In a result, a clicking sound is produced on the axle. So check Tahoe.
- If not taken seriously, grease leakage can cause fully axle damage.
Knocking Sound
- A knocking sound is also a sign of a faulty CV axle. This noise occurs from the front wheel while driving. This sounds like a clunk.
- When a knocking sound is generated, find the cause that normally occurs due to joint damage. Knocking becomes high during speed increases or decreases. So monitor the CV axle for the knocking sound.
Noises at Time of Turning
- A clicking noise is produced when we take a turn. This sound seems to come from wheels. This sound comes during sharp corner turns.
- The sound shows that your vehicle’s CV joint is damaged. Since the joint makes a connection of the axle with the wheels, it causes them to move uniformly, but if the joint is damaged, it causes a sound since the CV joint does not move.
Difference Between an Axle and a Joint
Read our related guide Filling Battery With Water: How to Add Water to Car Battery
CV axle
- CV axles, also called half shafts, are the part of front-wheel-drive vehicles that deliver engine power between the transaxle and 2 drive 2drivewheels.
- CV axles are commonly seen in older vehicle types that have independent rear suspension and are also part of four-wheel and all-wheel-drive vehicles.
- The axle also comes with two CV joints. The inner CV joint makes a connection between the drive shafts and the transmission. Outer CV joints make connections between drive shafts and drive wheels.
- These joints help the axle to transmit the power of the engine to the drive wheels under smooth driving conditions.
- If a constant velocity joint does not exist, axle damage occurs when the vehicle moves on a bumpy road. So good joint condition is important for the accurate working of the CV axle.
CV joints
- CV joints are the main component of the CV axle. CV joints are important for bearing connections and cages that help axle rotation and send power at different angles.
- CV joints. Some assembly components, such as the cage, ball, and internal raceway, are in a casing that is covered with a rubber boot and filled with grease for lubrication.
- These joints cause faults due to damage on the boot layer; as a result, grease leaks and external moisture and dust particles move to the joints, which reduces working life.
- CV joints are damaged due to lubrication, corrosion, and environmental factors
FAQs
How long do CV joints last on a car?
- CV joints normally work more than 100000 miles in basic working conditions. Their working life is based on CVs. If boots are in proper condition and greased to seal, they improve joint performance.
What are the symptoms of a failing CV axle?
- noises and grease leakage, signs of CV axle. If your car faces difficult steering, it means the CV axle is bad. Tire wear also shows the axle is not working.
What happens when a CV axle fails while?
- A damaged CV axle results from loss of control, typically during high-speed turns, and poses a safety risk.
- • A bad CV axle also results from tire wear since the axle shows irregular movement, making wear high and affecting the working.
Can a bad CV axle affect the transmission?
- A bad CV joint applies pressure on the transmission. since drivetrain parts do not work since a bad CV axle causes wear and damage to the transmission
How much does it cost to repair a CV axle?
- Normally, the CV axle replacement cost is about $1,100 to $1,400. Its labor cost is 200 to 300 dollars, and parts cost can be different, normally 900 to 1200 dollars.
What is another name for a CV axle?
- A CV drive axle, also called a constant velocity axle, is a drivetrain part that sends power from the engine and transmission to the wheels.
- Its main parts are the shaft, CV joints, and boots.
What are the 4 types of axles?
- Axles are the main part that causes driving torque transmission, manage weight, and control steering. Axles come with four types thatare front axle, rear axle, stub axle, and transaxle
