A pump is a device that moves fluids (beverages or gases) or once in a while slurries[via mechanical motion, commonly converted from electrical strength to hydraulic electricity.
Mechanical pumps are utilized in a huge range of packages, which includes pumping water from wells, filtering aquariums, filtering and aerating ponds, in the automobile enterprise for water cooling and fuel injection, within the power enterprise for pumping oil and herbal gasoline or for operational cooling of towers and other gadget additives heating, air flow and air conditioning. Inside the medical enterprise, pumps are used for biochemical procedures within the development and manufacturing of medicine and as artificial replacements for body parts, in particular artificial hearts and penile prostheses.
If a pump carries or greater pumping mechanisms, the fluid being directed to drift through them in series, it’s miles known as a multistage pump. Phrases including two-stage or two-degree can be used to particularly describe the wide variety of stages. A pump that doesn’t suit this description, in contrast, is clearly an unmarried-degree pump.
Many exclusive kinds of chemical and biomechanical pumps have evolved in biology; biomimicry is on occasion used in the improvement of new varieties of mechanical pumps.

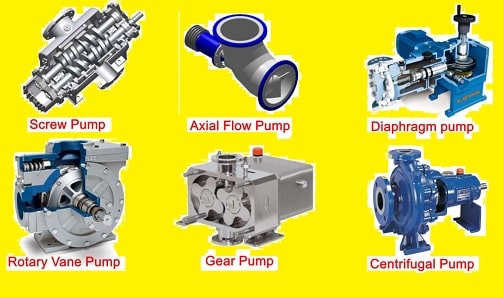

Types of Pumps
- Mechanical pumps may be submerged within the fluid they’re pumping or be positioned external to the fluid. Pumps can be categorized by means of their technique of displacement into positive-displacement pumps, impulse pumps, velocity pumps, gravity pumps, steam pumps and valveless pumps. There are three simple varieties of pumps: nice-displacement, centrifugal and axial-go-with-the-flow pumps. In centrifugal pumps the course of glide of the fluid changes by ninety degrees as it flows over an impeller, whilst in axial float pumps the course of glide is unchanged.
- A fantastic-displacement pump makes a fluid flow by means of trapping a set quantity and forcing (displacing) that trapped quantity into the discharge pipe.
Some superb displacement pumps use an increasing hollow space on the suction side and a lowering cavity on the release facet. Liquid flows into the pump because the hollow space at the suction aspect expands and the liquid flows out of the discharge as the cavity collapses. The extent is regular through each cycle of operation.
Reciprocating positive-displacement pumps
- Reciprocating pumps flow the fluid the use of one or extra oscillating pistons, plungers, or membranes (diaphragms), whilst valves limit fluid movement to the favored course. So as for suction to take location, the pump should first pull the plunger in an outward motion to lower strain in the chamber. As soon as the plunger pushes lower back, it will growth the chamber strain and the inward pressure of the plunger will then open the release valve and release the fluid into the shipping pipe at constant go with the flow rate and expanded stress.
- Pumps in this category variety from simplex, with one cylinder, to in some cases quad (four) cylinders, or more. Many reciprocating-kind pumps are duplex or triplex (three) cylinders. They may be both single-acting with suction at some point of one direction of piston movement and discharge on the other, or double-appearing with suction and discharge in both directions.
- The pumps can be powered manually, by using air or steam, or by way of a belt-pushed via an engine. This kind of pump turned into used drastically inside the 19th century within the early days of steam propulsion—as boiler feed water pumps. Now reciprocating pumps usually pump fairly viscous fluids like concrete and heavy oils, and serve in special programs that call for low float quotes in opposition to high resistance. Reciprocating hand pumps had been extensively used to pump water from wells. Common bicycle pumps and foot pumps for inflation use reciprocating motion.
- Those advantageous-displacement pumps have an increasing hollow space at the suction aspect and a reducing hollow space on the release facet. Liquid flows into the pumps as the cavity on the suction facet expands and the liquid flows out of the discharge because the hollow space collapses. The quantity is steady given each cycle of operation and the pump’s volumetric efficiency may be executed thru habitual renovation and inspection of its valves
- That is the handiest shape of the rotary positive-displacement pump. It consists of two meshed gears that rotate in a closely equipped casing. The teeth areas entice fluid and pressure it around the outer edge. The fluid does now not travel lower back at the meshed part, due to the fact the tooth mesh carefully within the center. Tools pumps see extensive use in vehicle engine oil pumps and in diverse hydraulic electricity packs.
- A screw pump is a more complicated kind of rotary pump that uses two or three screws with opposing threads, one screw turns clockwise, and the alternative counterclockwise. The screws are mounted on parallel shafts that have gears that mesh so the shafts flip collectively and the entirety remains in location. The screws switch on the shafts and fluid pressure through pump. As with different varieties of rotary pumps, the clearance between shifting parts and the pump’s casing is minimum.
Progressing cavity pump
- Extensively used for pumping hard materials, along with sewage sludge infected with large debris, a progressing hollow space pump consists of a helical rotor, approximately ten instances as long as its width. This may be visualized as a crucial middle of diameter x with, generally, a curved spiral wound round of thickness 1/2 x, though in truth it’s miles manufactured in a single casting. This shaft fits internally a heavy-duty rubber sleeve, of wall thickness also usually x. Because the shaft rotates, the rotor steadily forces fluid up the rubber sleeve. Such pumps can broaden very excessive pressure at low volumes.
- Named after the Roots brothers who invented it, this lobe pump displaces the fluid trapped among lengthy helical rotors, each equipped into the opposite whilst perpendicular at ninety°, rotating internal a triangular fashioned sealing line configuration, both on the factor of suction and on the point of discharge. This design produces a continuous drift with equal quantity and no vortex. It is able to paint at low pulsation prices and gives a mild overall performance that a few programs require.
- A peristaltic pump is a kind of tremendous-displacement pump. It contains fluid inside a flexible tube outfitted internally a circular pump casing (though linear peristaltic pumps were made). Some of rollers, footwear, or wipers connected to a rotor compress the flexible tube. Because the rotor turns, the part of the tube below compression closes (or occludes), forcing the fluid through the tube. Additionally, whilst the tube opens to its herbal state after the passing of the cam it attracts (restitution) fluid into the pump. This procedure is called peristalsis and is used in lots of biological structures consisting of the gastrointestinal tract.
- These include a cylinder with a reciprocating plunger. The suction and discharge valves are set up within the head of the cylinder. Inside the suction stroke, the plunger retracts and the suction valves open causing the suction of fluid into the cylinder. In the forward stroke, the plunger pushes the liquid out of the release valve. Performance and common troubles: With the handiest one cylinder in plunger pumps, the fluid flow varies among most glide while the plunger actions through the center positions, and 0 drift whilst the plunger is on the quit positions. Lots of energy is wasted while the fluid is extended in the piping gadget. Vibration and water hammer can be a severe problem. In trendy, the troubles are compensated for by means of the usage of two or extra cylinders no longer operating in segments with each different.
- Devised in China as chain pumps over one thousand years ago, those pumps can be made from very simple materials: A rope, a wheel and a pipe are sufficient to make a easy rope pump. Rope pump efficiency has been studied through grassroots businesses and the techniques for making and going for walks them had been constantly progressed.
Hydraulic ram pumps
- A positive displacement pump sets a fluid in motion by capturing a solid quantity and pushing (extruding) the captured volume into the discharge pipe.
- Some positive displacement pumps use an expanding cavity on the suction side and a shrinking cavity on the discharge side. Fluid flows into the pump when the cavity on the suction side expands and fluid flows out of the discharge when the cavity collapses. The volume is constant during each cycle of operation.
- Valveless pumping assists in fluid shipping in various biomedical and engineering structures. In a valveless pumping system, no valves (or bodily occlusions) are gift to regulate the glide path. The fluid pumping efficiency of a valveless machine, but, does not always decrease than that having valves. In reality, many fluid-dynamical structures in nature and engineering extra or less depending on valveless pumping to transport the running fluids therein. For example, blood flow in the cardiovascular machine is maintained to a degree even if the coronary heart’s valves fail. In the meantime, the embryonic vertebrate heart begins pumping blood lengthy earlier than the development of discernible chambers and valves. Similar to blood moving in one direction, chook respiratory systems pump air in a single route in inflexible lungs, however without any physiological valve. In microfluidics, valveless impedance pumps have been fabricated, and are expected to be especially appropriate for handling touchy biofluids. Ink jet printers working at the piezoelectric transducer precept also use valveless pumping. The pump chamber is emptied via the printing jet because of reduced drift impedance in that direction and refilled by capillary action.
