Simple Siren Enhancer
- The siren enhancer is an electronic device that is used to operate different devices like UM3481 and UM3561 in pair combinations.
- This circuitry is the best choice for applications where the high sound of the siren is required. Here we will make ten-watt circuitry of a siren enhancer through the use of IRF9540 MOSFET of P-Channle. which are the main components of our projects.
- The IRF954 is part of the MOSFET family that is P Channel configured. MOSFET has the ability to operate loads that has twenty-three ampers current and volts value less than a hundred volts.
- To dissipate heat there is a resistance of 0.117 ohms is configured that increases the efficiency of MOSFET
Project Components
- The main components of the project are listed here
- Resistances
- Speaker
- NPN Transistor
- MOSFET
- Voltage source
- PCB from PCBWAY
Circuit Design and Working

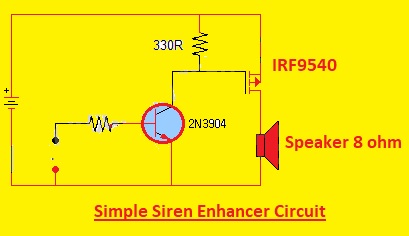

- Here you can circuits are created through the use of all listed components. In this project we have used 1.2k and 330-ohm resistance, a speaker of eight home values used, and NPN configured 2N2904 transistor is used. The transistor is a device that is used as a switch and amplifier.
- A voltage source of nine to twelve volts is used. This circuitry is working in two phases. First, one is the output generated from the siren given to the transistor of the NPN structure. As transistors are working as amplifiers here so they will amplify the input signal to a high value and then move to another part of the circuitry. This amplified signal operates as the control for the gate of MOSFET. This signal is again amplified by the MOSFET after the transmission to the speaker that releases the sound of the siren to the high value that we needed and can be listened to longer distant
Types of Siren
Pneumatic Siren
- A pneumatic siren, which is a free aerophone, consists of a rotating disk with holes in it known as a chopper, siren disk or rotor so that material between the holes interrupts the airflow fixed holes at the external part of the unit.
- As the holes in the rotating disc alternately prevent and allow the flow of air, the pressure of compressed and diluted air alternates, i.e. sound.
- Such sirens can consume a large amount of energy. To reduce energy consumption without losing sound volume, some pneumatic siren designs are reinforced by forcing compressed air from a reservoir, which can be replenished by a low-power compressor through the siren disc.
- In US English language usage, automotive pneumatic sirens are sometimes referred to as mechanical or mountain sirens to distinguish them from electronic devices.
- Mechanical sirens that get power through electric motors are often so known as “electromechanical”.
- One example of this siren is the Q2B siren. Due to its high current draw (280 amperes when power is applied), its use is normally limited to fire apparatus, although it has seen increasing use on Type IV ambulances and rescue squad vehicles.
- Its distinct tone of urgency, high sound pressure level that is about 123 dB at 10 feet, and square sound waves help to explain about is its effectiveness
Electronic Siren
- Electronic sirens contain circuitry such as oscillators, modulators, and amplifiers that synthesize a selected siren tone (wail, scream, pierce/priority/phaser, hi-lo, scan, airhorn, manual, and several others) that is played through external speakers. . It is not unusual, especially with modern fire trucks, to see an emergency vehicle equipped with both types of sirens. Police sirens often also use a tritone interval to help attract attention. The first electronic siren that imitated the sound of a mechanical siren was invented in 1965 by Motorola employees Ronald H. Chapman and Charles W. Stephens.
Applications
- It used in different devices such as PA systems and loudspeakers
- It used in police and ambulances sirens
- It used in civil defense alarming systems
- It is used in industries to give information about fire and other dangerous operation
- It is the main part of the security system and monitoring operations
