The multimeter is a device that is used for measuring current, voltage, resistance, and capacitance. A microfarad is a unit of capacitance that is equal to one millionth of a farad, which defines the charge stored in a capacitor. On a multimeter, we can see the symbol μF, which is microfarad. Here we will get details for the microfarad symbol on a multimeter and learn why it is used and its purpose.

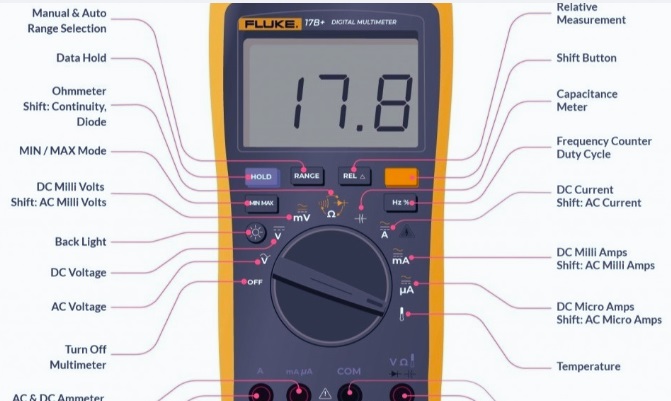

Introduction to Multimeters
- The multimeter is a magnetic electronic tool that has a rectifier circuit that measures different electrical factors such as AC and DC, resistance, and voltage.
- For measuring electrical parameters, it has different ranges.
- This meter is also called a multimeter. comes with a magneto-electric ammeter, circuit, and selector switch.
- With the change of the selector switch, we can measure electrical parameters.
- Its working is based on Ohm’s law, a closed circuit. Different types of multimeters are used based on applications.
- A normal multimeter measures DC current, DC voltage, AC voltage, and resistance value. Some meters also have features to measure inductance, capacitance, power, and DC amplification factor hFE.
What is the farad unit?
- The farad is the SI unit of capacitance, name after physicist Michael Faraday.
- •A capacitor is a device that is used for storing electrical energy in the form of an electric field. One farad features a strong one coulomb of electrical energy in the form of an electric field through a potential difference of one volt over plates.
What are microfarads?
- Microfarad is a unit of measurement that defines the charge stored in a capacitor.
- The capacitor has two conductive plates separated by an insulator that stores and discharges electrical energy. The
- • A microfarad is an SI unit of capacitance that is equal to one millionth (0.000001) of a farad.
- Microfarad is not a small unit of capacitance. But nanofarad and picofarad are small units.
- One nanofarad is equal to 0.000000001 of a farad, and one picofarad is equal to one trillionth of a farad.
- The microfarad is a moderate unit of capacitance. A capacitor comes in different values of capacitance, such as one picofarad to many farads. Microfarad is easily seen on power supplies and audio devices.

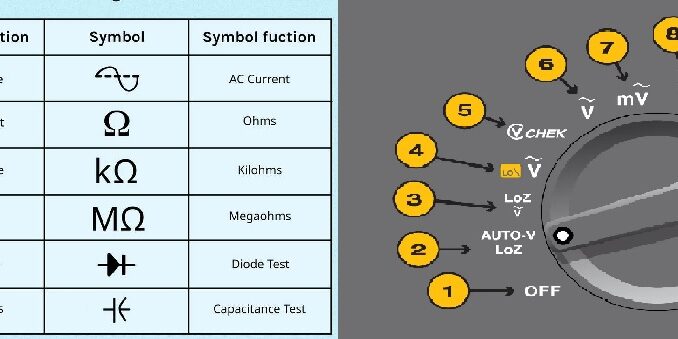

Microfarad Symbol on Multimeter
- • A microfarad is denoted with the symbol µF. This symbol shows microfarads for measuring capacitance value with a multimeter.
How to Measure Capacitance
- The capacitance is an electrical parameter that defines how much electrical energy is stored in materials per unit charge.
- It is a battery chemical energy and provides it in the form of electrical energy. For measuring capacitance with use of a multimeter, first release the stored charge in the capacitor.
- For this short capacitor, use with wire. When the capacitor is discharged, remove the wire and set the meter at the capacitance or microfarad setting on the meter.
- Check the positive lead of the capacitor that has a plus sign and the negative lead that has a negative sign.
- Make a connection of the black lead with the meter and the negative lead of the capacitor, and the red lead of the meter with the positive lead of the capacitor.
- Non-polarized capacitors do not have positive and negative signs. In this meter, make a connection of the leads of the meter with any two pins.
- Now, gets a reading from the meter; the reading is in microfarad form. For getting readings in farads, divide the measured value by 1,000,000 to get the equivalent capacitance in microfarads.
uses of multimeters
The main uses of meter are as follows.
- It is used for measuring volts, and it is the main function of the meter, and is used for measuring the voltage of a battery or power supply.
- The meter is also used for measuring current in a circuit to confirm that devices are working well.
- With a multimeter, we can also measure resistance for resistors, and it also helps to check the connection of wires and switches.
- With a meter, we can also measure the capacitance of a capacitor.
- A multimeter is also used for finding a short circuit or breakage.
- It also helps to perform the diode testing function and the transistor testing.
- A multimeter also comes with thermocouples that help to measure temperature.’
- A multimeter also has features to measure AC power supply frequency.

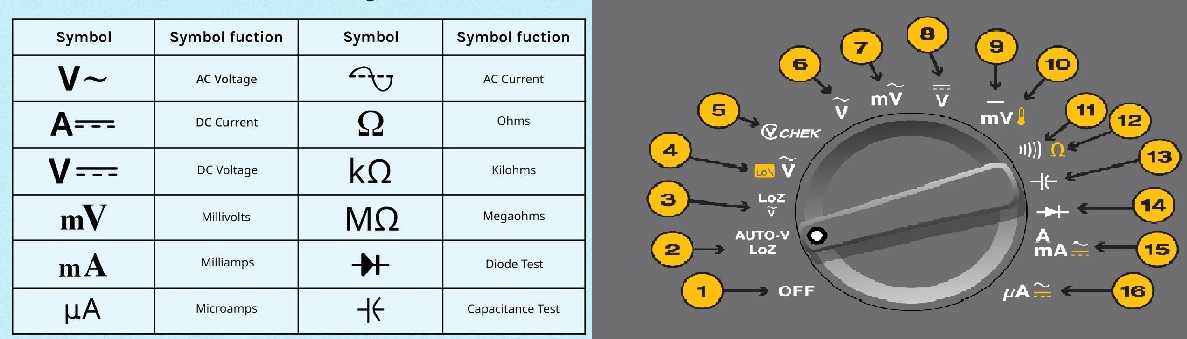

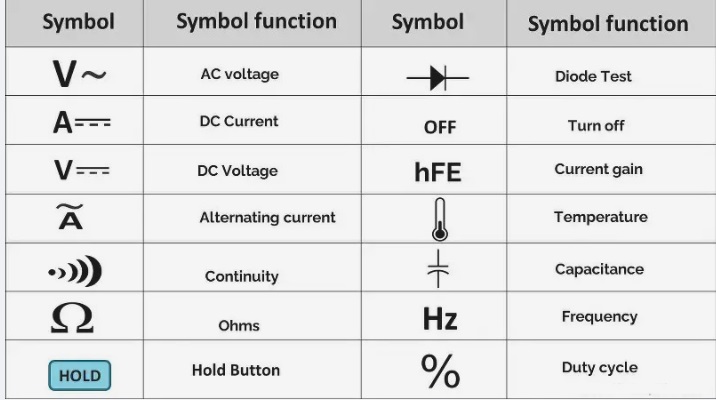

Different Multimeter Symbols
Precautions When Using a Multimeter
Mechanical zeroing
- Mechanical zeroing is setting the hairspring of the meter head without a power supply to make a point at zero.
- Before using the meter, first check that the meter pointer is at the zero scale line on the left side; if not accurately aligned, set it at mechanical zeroing. If not, it has an effect on reading and causes erroneous results.
Do not touch the metallic component of the meter pen.
- During use of the meter, it needed to make a connection with the pen was needed to avoid touching the metallic part of the pen, which would avoid an electric shock.
Do not switch gears during measurement
- For measuring current and voltage of a circuit, it is avoided to switch gears at the same time, which can damage the multimeter. For measuring high voltage and current, switching gears easily produce arcs that affect the switching contact.
- For switching gears, first remove the meter pen, then switch gears, and then measure after the change.
Select gear from large to small.
- If you do not know about the current or voltage measured size, select a high value first and then set an accurate grade based on measurement values, which prevents needle deflection from bending and damaging the meter head.
Connect the multimeter horizontally.
- For using meter, it needs to put in a flat position, horizontal and take a value on the dial to avoid errors
Connect accurate polarity.
- For measuring DC current or voltage, properly make positive or negative poles and rotate in the reverse direction as needed. When positive or negative poles are reversed, set an accurate connection for adding damage to the meter.
Conclusion
- • A multimeter used for micrometer values helps to provide accuracy and solve error for measurements and is good for applications where high accuracy is needed for current and voltage.
- for micrometer values, It is good to work on the calibration of the meter and choose an accurate measurement range. Accurate wiring and avoiding circuit damage help to provide good results.
FAQ
What are the symbols for microfarads?
- The commonly used symbol for microfarad is the letter U with a small circle over it. It is the system international prefix for micro, which is one millionth. One microfarad is equal to one millionth of a farad.
- There is a symbol M with a small circle used over MF or the letter U.
How to read microfarads on a multimeter?
- For reading microfarads on the meter, there is a need to find the symbol of microfarads. The main symbol is mF or μF.
- For reading microfarads on the meter, there is a need to set the meter on the μF setting.
- After that meter is set accurately, take a reading. Make connections between the multimeter probes and the respective pins of the capacitor. As a result, the meter shows capacitance in microfarads.
What are the symbols on the multimeter?
- There are different symbols seen on the meter that have certain functions, such as volts, amps, farads, ohms, and microfarads, denoted with µF or mfd.
- • The letter u is seen for the Greek letter mu (µ).
What is the capacitance symbol on a multimeter?
- The capacitance symbol on the meter is mu (μ). That is the standard symbol of microfarad. A microfarad is a capacitance unit. It is equal to one millionth of a farad.
- • The SI unit of capacitance is the farad, whose name is given after Michael Faraday.
- One farad is a capacitor’s ability to store one coulomb of charge with a potential difference of one volt.
