Hello learners I hope you all are having fun in your life. In this post, we will have a detailed look at Introduction to TDA2005. It is a twenty-watt audio amplifier integrated circuitry audio amplifier and in class B double audio power amplifier Multiwatt11 casing created to use in radio used in Cars or other automobiles.
It also used in different types of power booster circuits since can handle the current value ئpto 3.5 amperes. It is also compatible to run such a load that uses less power up to twenty watts. In this post, we will cover details about its working applications and some other features. So let’s get started with Introduction to TDA2005.
Introduction to TDA2005
- TDA2005 is created to use in such an application where audio-related features get amplification.
- It comprises of variable gain that helps it to use in different types of sound production devices such as radio.
- It comprises eleven pinouts used in different types of functions.
- As it offers large output power so it prefers loudspeakers used in different functions and parties with the it operates woofers.
- It offers the bridge type configuration and uses power to the thirty watts.
- Its impedance value is very less almost 1.6 ohm and the output power value is twenty watts.
Pinout of TDA2005
- There is eleven pinouts of this device that are described here.
- INPUT+(1): This pinout is the non-inverting or positive pinout of first amplifier.
- INPUT-(1): That is the negative or inverting pinout of the first amplifier.
- SVRR: Through this pinout, voltage rejection ratio is provided to the device.
- GND; That is the ground pinout.
- INPUT-(2): This pinout is inverting input of amplifier number two.
- INPUT+(2): That is non inverting or positive input pinout of second amplifier.
- +VS: Positive power is given here.
- BOOTSTRAP(2): It is a bootstrap capacitor configuration for the second amplifier.
- OUTPUT(2): That is the output pinout of the second amplifier.
- OUTPUT(1): It is the output pin of the first amplifier.
- BOOTSTRAP(1): It is a bootstrap configuration for the first amplifier.
What is PCBA
- Friends in electronic industry circuit assembly for any project is a very challenging task and needed highly skills and accuracy for the creation of Project.
- The process of creation through the use of different components on a PCB board is called PCBA or stands for printed circuit board assembly. It comprises of different types of Ic, capacitor, and other electronic components used.
- So if you are making any project with the use of TDA200 above which we have above-discussed details you must need a completes circuit board with the different components so you can create your project through using this module.
- Nowadays there are many PCBA manufacturing is working in this world that offers PCBA services with different features and rates.
- But that I recommend you and also user of that PCBA supplier is PCBWAY.
- PCBWAY is china based PCB supplier that provides different services related to PCB and PCBA that offers PCB prototyping services with reasonable rates.
- They offer twenty PCS of PCBA and components sourcing for just thirty dollars. You can also get complete your project afters providing details related to projects and can get different types of PCBs such as rigid, flex, according to the requirements of circuits.
- Here one thing i want to more that if you have a query that as in your project there are numerous pinouts used for TDA2005 and how you can mange it that, Then you no need to worry about that PCBA also offers design services that you can avail according to your design requirements.
- It provides proteciton from short cirucits.
- It used to avoid losses due to overheating in the circuit.
- It provides protection from load dump voltage surges.
- It uses very few components to make amplifier circuitry.
- It can dissipate thirty watts of power.
- The value of operating temperature for this module is minus twenty-three centigrade to one thirty centigrade.
- The storage temperature range for this device is -40°C to 150°C.
- The voltage range for this device is plus eight to plus eighteen volts.
- The extreme voltage provided to this device are plus twenty-eight volts.
- The value of peak voltage for this component is from plus forty volts for fifty milliseconds.
- The highest value of current drawn from every output terminal is 3.5 ampere.
- The largest nonrepetitive current from every output is 4.5 ampere.
TDA2005 IC Working
- The working and use of this device is very simple and easily accessible. For this given below circuit is shown where it linked.
- The above-given circuitry is bridge amplifier circuitry created for TDA2005. The circuitry can be linked without any tests.
- In this circuit this IC dun a one twenty watt speaker to its peak value.
- In the bridge configuration of the amplifier, it can run voltage gain to the fifty decibels

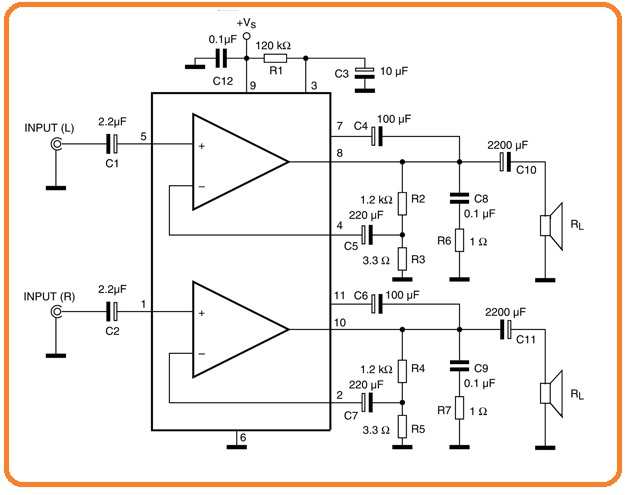

- The above-shown circuitry is a stereo amplifier circuit configuration created through the use of TDA2005. This circuitry can be tested before working and use in different applications directly.
- Here there are 2 ten watts, speakers to their peak are used. this circuit provides voltage value to the fifty-one volts decibels.
- The common applications of this device are explained here.
- It used in different types of music players.
- It used in woofers amplifier circuits.
- IT used in microphones.
That is a detailed post about TDA2005 if you have any further query ask in the comments. Thanks for reading. Have a nice day
