Hi, friends welcome to the new post. We will discuss Introduction to LM4558. It is a monolithic IC circuit that is used for dual operational amplifier applications. It is preferred for volts followers circuits since its features like common-mode input volts and the non-existence of a latch-up maker.
This module is protected from the short circuit and inner frequency compensation that makes sure stability in the absence of outer elements. Here we will cover its different functions working and some other points. That is described here so let get started Introduction to LM4558.
Introduction to LM4558
- The LM4558 IC comprises of two operational amplifiers and is used for amplification circuits. its basic functions are comparator, differential amplifiers, and mathematical operations like addition subtraction.
- It is the option of a fine for voltage follower circuits due to the existence of a high-value common-mode input volts range and not the existence of latch-up.
- Its best feature is that it can be used in two different applications due to the existence of two operational amplifiers
LM4558 Features
- Its main features are explained here
- Its net power dissipation is two hundred megawatt
- Its operating temperatures is zero to seventy centigrade
- Its dual supply volts are plus fifteen and minus fifteen
- Its single supply volts are plus five to plus fifteen volts
- Its common-mode rejection ratio is eight decibel
- Its moisture tracking level is three
- It gives the less not at input resistances
- It has large common-mode and differential volts ranges
- It has not latched up and no frequency compensation is needed
- It needed regular protection for short circuit
- It has less noise interference for operation amplifies
- It consists of two different operational amplifiers
Feature | Details |
Operational Amplifiers |
Two separately operated operational amplifiers
|
Noise Interference |
Low noise
|
Short-Circuit Protection |
short-circuit protection
|
Frequency Compensation |
No frequency compensation required
|
Latch-Up Prevention | No latch-up |
Voltage Range |
Large common mode
|
Amplifier Matching |
Gain and phase match
|
Input Transistors |
Low noise input transistors
|
Moisture Sensitivity Level | Level 3 |
Parameter Tracking |
Recorded for temperature range
|
CMRR | 80dB |
Single Supply Operation | +5.0 V to +15 V |
Dual Supply Operation | +15 V and -15 V |
Operating Temperature Range | 0ºC to 70ºC |
Total Power Dissipation | 200mW |

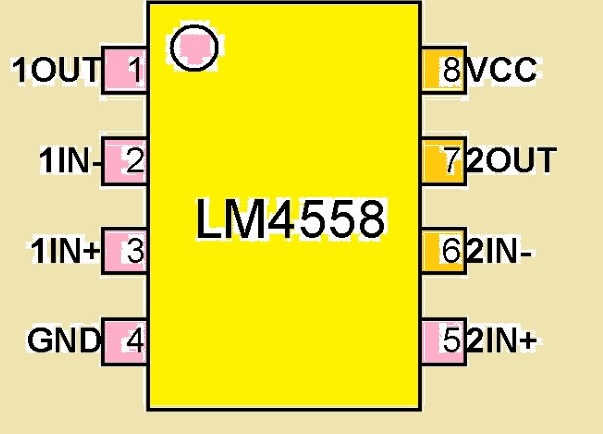

LM4558 Pinout
- Its pinout are explained here
- Pin 1ouput of first operational amplifier
- Pin 2 is inverting input of first operational amplifiers
- Pin 3 is the positive input of the first operational amplifier
- Pin 4 is ground
- Pin 5 is positive input of the second amplifier
- Pin 6 is the negative input of the second amplifier
- Pin 7 is the output pin of the second operational amplifier
- Pin 8 is the input supply
Pin | Name |
1 | 1OUT |
2 | 1IN- |
3 | 1IN+ |
4 | GND |
5 | 2IN+ |
6 | 2IN- |
7 | 2OUT |
8 | VCC |
LM4558 Applications
- It’s main applications are discussed here
- It used for different measuring instruments
- Used in different industries
- Used for logic volts translation
- Used for peak detectors
- Used for comparator circuits
- Used in oscillators
- Used for amplifier circuits and different mathematical operations
- it is also effectively used for signal amplification and makes it good for audio signal generation for reducing noise and painting sound quality. its dual design makes it effective to use for stereo systems providing balance and high-quality amplification output.
- It also produces certain oscillatory circuits. It is also configured with a feedback system and used for signal generators
LM4558 Comparable Op-Amp ICs
- LM158
- LM258
- LM358
- LM2904
- LM747
Working of LM4558 IC

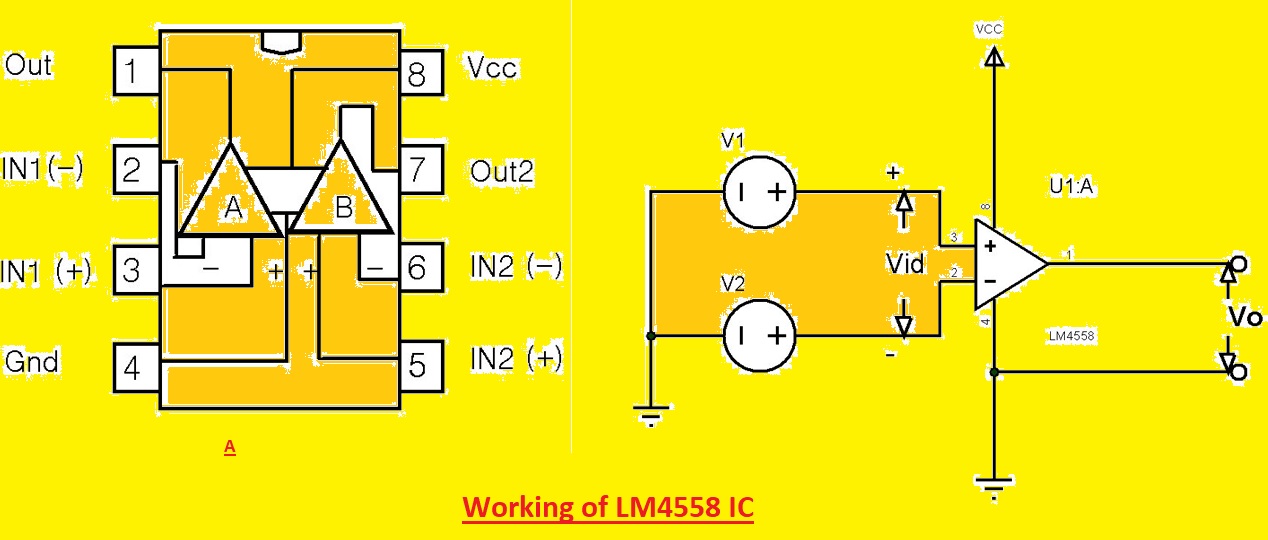

The inner circuit of LM4558 IC with two operational amplifiers is seen in below figure as A.
- The two operational amplifiers for operational amplifiers are circuits such as comparators, differential amplification, and mathematical operations.
- Here we use operational amplifiers to make a simple comparator circuit for understanding the operation of operational amplifiers.
- In the second diagram, we use one operational amplifier for making the circuit.
- There is a comparison made with voltage V1 and V2, and the output is Vo. The VCC supplies power to the circuit.
Vid = V1 – V2
If Vid > 0, then Vo = VCC.
If Vid < 0, Vo = 0V or GND
According to conditions of output, we can find Vid is positive or negative and also V1 is high or V2 is higher at input. With high voltage, the output of the function of the operations amplifier can be seen.
That is all about the LM4558 all details have been explained if you have any further queries ask in comments. Thanks for reading have a nice day
