Hello, guys welcome to new post. Today we will cover Introduction to FSA4480. It is a USB C type high operating port of multimedia switch compatible to the analog audio system. It permits the transmission of communal USB port to send the USB 2.0 signal, analog signal of audio sideband use wires and analog microphone signal.
It compatible to high volts at the SBU port and USB port at the USB C category. In this post we will discuss its working features and some other points. So let get started Introduction to FSA4480.

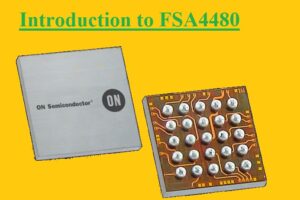

Introduction to FSA4480
- The FSA4480 is a Type C USB port multimedia switching circuit that cooperates with high performance and is compatible with analog audio modules permitting the Type C USB to send USB 2.0 signals analog microphone signals and analog signals.
- It is compatible with the sound-detecting signal trace and optimized and integrated outcomes which make simple design and rescue shot net results or footprints
- It features integrated high voltage protection up to 20 volts (V) DC and offers pinout support for both OMTP and CTIA – sometimes known as American Headset Jack (AHJ) – standards for smartphone headsets.
- The pins of the common node have overvoltage protection (OVP), and the disconnection of any audio device is automatically detected.
- FSA4480 comes with I2C interfacing that is regulated through the user’s processor and the click process decreases with the changes.
- It comes in dimensions of 2.24mmx 2.28mm x 0.5 mm and cascades in WLCSP packaging.
- Its common applications are smartphones, tablets different watches, speakers
- It also used in computer tablets and processors
FSA4480 Features
- Its main features are explained here
- It is compatible to sound sens paths
- It is compatible to OMTP and CTIA
- Used for overvolts protection
- Its high volts protection is about twenty volts dc
- Value of audio ROn is one mega
- Minus three volts to plus three volts is audi switch negative rail ability
- The value of high-speed EOn is three ohms
- Its power supply is about 2.7 volts to 5.5 volts
Features | Details |
Package | WLCSP |
IC Function | Analog Switch |
IC Mounting | Surface Mount |
Interfaces | USB |
Channels | 6 |
Pins | 25 |
On Resistance Max | 5.2 |
Operating Temperature Max | 85 |
Operating Temperature Min | -40 |
Power Supply | Single Supply |
Supply Voltage Range | 2.7V to 5.5V |
Switch Configuration | DPDT |
FSA4480 Advantages
- It can operate different values of input supply
- Its high bandwidth offers protection for data
- It gives the less RDSON in case of least insertion losses
- It is patible to center audio without affecting the operating
- It has less THD+N to ensure the audio quality
- It is compatible to headsets
- To minimize the damage switch are protected
FSA4480 Applications
- It used in media players
- Used in phones
- Used in tablets laptops
- Used in personal computer
- USB C PD Systema and USB -C analog audio solution
Read also
- Transistor Symbols | Definition, Terminals & Operating Condition
- Introduction to BC817 Transistor
- 2N3702 Transistor Working & Application
- Introduction to 2N3703 Transistor
That is all about the FSA4480 all details has explain if you have any further query ask in the ents. Thanks for reading
