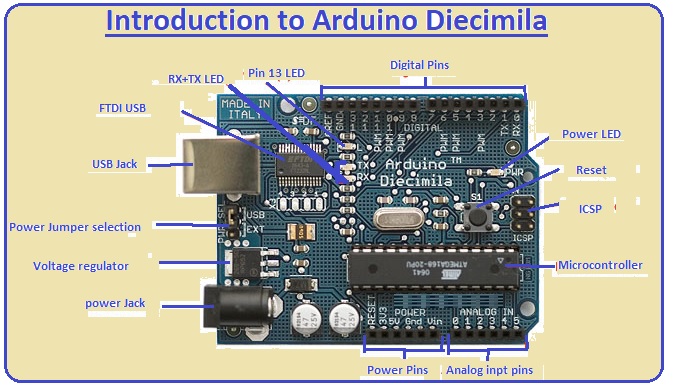

Introduction to Arduino Diecimila
- It is a microcontroller board and comes with ATmega168. There are fourteen pinouts of input and output natures configured on it.
- With that, there are six analog inputs configured to get the analog input, and crystal oscillators of sixteen megahertz are assembled.
- Fourteen peripheral connections there is a USB port, with a power jack and reset button arranged.
- All requirements needed for any type of controller exist on the also AC to DC adapter is connected to it.
- Here Diecimila means then thousand in Italian and it denoted that there is more than ten thousand Arduino boards created.
- This board is the latest in a contest of USB Arduino boards.
What is the Arduino Diecimila?
- A microcontroller board called the Arduino Diecimila is built around the ATmega168 chip. As an upgrade to the original Arduino board, it was originally made available in 2007. The Diecimila, like other Arduino boards, is designed to be simple to use even for those who are just starting with electronics and programming.
- The Arduino programming language, which is based on C or C++ language can be used for baord programming It contains six analog inputs, 14 digital input/output pins, a USB connector for power and programming, and a reset button.
Arduino Diecimila Features
- The main features of these boards are defined here.
- It is Atmega 168-based controller
- Its clock speed is sixteen megahertz
- There is EEPROM of five twelve bytes is assembled on the board
- The static ram of one kilobyte is linked to it.
- Flash memory of sixteen-kilo bytes used on it
- There are six analog input pins used here
- There are fourteen digital input and output pins on board.
- Input volts of six to twenty volts can be given to it
- The operating volts are five volts.
| Feature | Description |
|---|---|
| Microcontroller | ATmega168 |
| Digital input/output pins | 14 |
| Analog input pins | 6 |
| USB connection | Used for programming and power |
| Reset button | Used to reset the board |
| Operating voltage | 5V |
| Clock speed | 16 MHz |
| Flash memory | 16 KB (of which 2 KB is used by the bootloader) |
| SRAM | 1 KB |
| EEPROM | 512 bytes |
| Input voltage | 7-12 V (recommended), 6-20 V (limits) |
| Digital I/O pins voltage | 0-5 V |
| Analog input pins’ voltage | 0-5 V, or 0-3.3 V (max 3.3 V) with a voltage regulator |
| PWM output pins | Digital pins 3, 5, 6, 9, 10, and 11 |
| Communication interfaces | UART, SPI, and I2C |
| Dimensions | 68.6 x 53.4 mm |
Arduino Diecimila pins
| Pin | Name | Purpose | Details |
| 0 | RX | Serial receive |
It operates to receive data from another device over a serial connection
|
| 1 | TX | Serial transmit |
Used for data sending to another device over a serial connection
|
| 2 | INT0 | External interrupt |
Can trigger an interrupt when a specified voltage level is reached
|
| 3 | PWM | Digital output, PWM |
It works for digital output or generates a pulse-width modulated (PWM) signal to control the speed of motors, LED brightness, etc.
|
| 4 | PWM | Digital output, PWM |
It works like Pin 3
|
| 5 | PWM | Digital output, PWM |
It operates as pin3
|
| 6 | PWM | Digital output, PWM |
Same operation to 3
|
| 7 | Digital input/output |
Can be used as a general-purpose digital input/output pin
|
|
| 8 | Digital input/output | Same as Pin 7 | |
| 9 | PWM | Digital output, PWM | Same as Pin 3 |
| 10 | PWM | Digital output, PWM, SPI SS |
Same as Pin 3, can also be used as the Slave Select (SS) pin for SPI communication
|
| 11 | PWM | Digital output, PWM, SPI MOSI |
Same as Pin 3, can also be used as the MOSI pin for SPI communication
|
| 12 | Digital input/output, SPI MISO |
Can be used as a general purpose digital input/output pin, and also as the MISO pin for SPI communication
|
|
| 13 | Digital input/output, SPI SCK |
Can be used as a general purpose digital input/output pin, and also as the SCK pin for SPI communication
|
|
| A0 | Analog input |
Can read an analog voltage between 0-5V using the analogRead() function
|
|
| A1 | Analog input | Same to A0 | |
| A2 | Analog input | Like the A0 | |
| A3 | Analog input | like theA0 | |
| A4 | SDA | Analog input/output, I2C |
it is used as a general-purpose analog input/output pin, and also as the data line (SDA) for I2C communication
|
| A5 | SCL | Analog input/output, I2C |
It employed as a general-purpose analog input/output pin, and also as the clock line (SCL) for I2C communication
|
| A6 | Analog input, External interrupt |
It work as an additional analog input, and can also trigger an interrupt when a specified voltage level is reached
|
|
| A7 | Analog input, External interrupt |
It like A6 pinout
|
Arduino Diecimila Communication Protocol
- There are numerous features it has to connect with other categories of boards, controllers, and computers.
- It comes with the UART TTL serial communication through digital pins 0 (RX) and 1 (TX).
- Â An FTDI FT232RL at the board exists for serial communication through USB and FTDI.
- For sending and receiving simple data, there is a serial monitor is linked to it.
- The receiver and transmitter LED will blink when data is transferred.
Arduino Diecimila Components
Power
- The Arduino Diecimila board has features to get power from a USB connection and power supply connection. The power supply is used through the PWR_SEL jumper for delivery power to the board in USB connections
- This baord can work fro a voltatge range of 6 to 20 volts and provide with less than 7V normally but a 5V pin can provide less than 5V and the board will not be stable.
- If more than 12 volts are provided voltage regulator can get overheated and damaged. So recommended voltages are 7 to 12 volts.
These pis provide power to the board
VIN.
- The input voltatge for the Arduino board with using an external power supply is provided here.
5V.
- The regulated power supply is used for providing power to the controller and other board components. That can be from Vin through onboard regulators or provided through USB or regulated 5V supply.
3.3V
- The 3.3 V supply is produced through on-board FTDI chip. The highest current drawing is 50 mA.
Memory
- This module comes with 16KB flash memory used for storing code and 1KB SRAM and 512 bytes of EEPROM
Input and Output
Serial: 0 (RX) and 1 (TX)
- This pin is used for receiving and transmitting TTL serial data. They are connected with pins of FTDI USB to TTL serial chip.
External Interrupts: 2 and 3.
- These two pins are configured with triggers for interrupting on a low value, increases or falling edges.
PWM: 3, 5, 6, 9, 10, and 11.
- These pins provide 8-bit PWM output through the use of analogWrite() function.
SPI: 10 (SS), 11 (MOSI), 12 (MISO), 13 (SCK).
- These pins are configured with SPI protocol’
AREF.
- It is the reference voltage used for analog inputs with using the command analogReference().
Reset.
- This pin moves line LOW for resetting the controller and is used for adding reset button protection that blocks one on the board.
Communication Protocol
- Arduino Diecimila comes with different communication protocols that helps to connect computers, other Arduino modules, or controllers.
- ATmega168 comes with UART TTL serials communication that comes with digital pins 0 (RX) and 1 (TX).
- FTDI FT232RLÂ is on board channels serial protocol for USB and FTDI drivers offer virtual com port for software on computers.
- ATmega168 uas support for I2C (TWI) and SPI communication.
Programming
- Arduino Diecimila can programmed with the use of Arduino software. The ATmega168 on the Arduino Diecimila has a preburrned bootloader that helps to upload new code without using an external hardware programmer.
- It programming communication with the use of STK500 protocol.
-  We can also bypass the bootloader and program ATmega168 with the use of ICSP (In-Circuit Serial Programming) header.
Examples of Arduino Diecimila Projects
The Arduino Diecimila may be used for a plethora of applications. Here are a few illustrations:
LED Lighting System
- You may design a unique LED lighting system for your house or workplace with the Arduino Diecimila. You may design a specific lighting pattern to meet your needs or use sensors to switch the lights on and off automatically.
Smart Home Automation System
You can design a personalized home automation system with the Arduino Diecimila that can manage anything from your lights and appliances to your security system and thermostat.
Robotics Projects
A fantastic alternative for developing robotics projects is the Arduino Diecimila. The board may be used to drive motors, sensors, and other parts, allowing you to build robots that can move, find items, and carry out other functions.
That is all about the Arduino Diecimila if you have any further queries ask in the comments. Thanks for reading have a good day.
