Hello friends I hope you all are enjoying your life. In this post, we will have a detailed look at Introduction to 2SC1061NPN Power Transistor. This category of transistor is part of the NPN power transistor family and available in the To-220 assembly. The value of dc current gain for this device is thirty-five to three twenty.
In this post, we will have a detailed look at its working operation features pinout and some other related parameters. So let’s get started with Introduction to 2SC1061NPN Power Transistor.
Introduction to 2SC1061NPN Power Transistor
- 2SC1061 is existed in the NPN configuration of transistors and employed in the amplifiers conducts to amply different signals.
- The value of gain for this transistor lies between thirty-five to three twenty according to the design of the transistor.
- The value of frequency for this module is five megahertz.It used in PNP complement transistors in amplifier circuits.
- The value of collector current for this module is three amperes and value of collector to emitter VCE is fifty volts that helps to use it in such applications where audio is amplified.
- By assembling it with its counterpart 2SA671 it used in class B amplifier configuration.
- As it has less value of frequency generally five megahertz so not employed in applications where high frequency is needed.
- The gain value of the transistor relies at the VCE and IC. With the increment in the collector, the current gain reduces.
2SC1061 NPN Power Transistor Features
- The main specifications of the 2SC1061 NPN Power Transistor are explained here.
- It generally exists in the To-220 assembly.
- VCE for this device is fifty volts.
- IC or collector current is three amperes.
- collector to base voltage is fifty volts
- Dc current gain value is three-five to three twenty..
- VBE for this component is four volts.
- It is a power transistor.

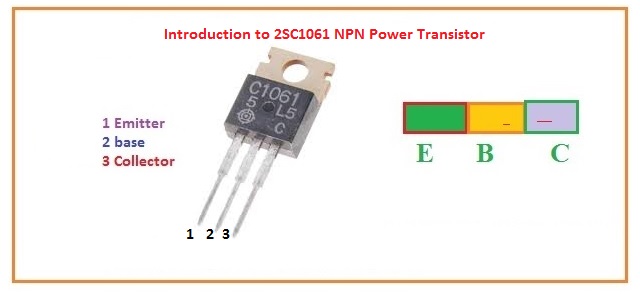

2SC1061 NPN Power Transistor Pinout
- The main pinout of 2SC1061 is mentioned here.
- Base: It is a regulation switch terminal that controls the on and off state of the transistor
- :EMitter: Through this pinout, current comes out.
- Collector: This terminal is linked to the load and the current moves to the transistor through it.
2SC1061 NPN Power Transistor Applications
- The main applications are mentioned here.
- It is used in switching circuits.
- It used to provide a high signal amplification process.
- It is the main part of high-power-consuming amplifiers.
- It is employed in Class B amplifier circuits.
Working of 2SC1061
- 2SC1061 is an NPN power transistor used for amplifier circuits. According to the type of transistor, the gain of the transistor is 25 to 320.
- It comes with a collector current of about 3 amperes, and the collector to emitter is 50 volts, which is good for high-power audio amplifier circuits. This transistor comes with a 2SA671 PNP transistor as an alternative.
- These transistors are part of Class B amplifier circuits. Transistors come with a low transition frequency of 5 mHz and are not used for high-speed switching circuits.
- This transistor gain is based on collector-emitter voltage and collector current of the transistor. Since collector current increases, gain reduces.
What are the special features of a power transistor?
- Bipolar junction transistors come in larger sizes and have maximum current flow.
- BJT has high breakdown voltage and comes with high handling features and also current-carrying features.
What are the characteristics of NPN transistors?
- The NPN transistor comes with an emitter, base, and collector. This transistor comes with two diodes that are configured in a back-to-back design. The diode exists between the emitter base pin, called the emitter base diode. The diode between the collector and base is called the collector-base diode.
What is the difference between a power transistor and a normal transistor?
- Then, the small sign transistor, the power transistor, comes with a larger maximum collector current, high collector power dissipation, and also has a larger size for heat dissipation control. They are protected with metal and have a design with heat-radiating fins.
What is the working principle of a power transistor?
- Power transistors come with devices that have regulated turn-on and turn-off features. These devices are employed to switch features, and work in the saturation region causes low on-state voltage losses. It gets on when the current signal is provided to the base terminal.
So that is a detailed post about 2sc 1061 NPN transistor i have mentioned each and every parameter related to it if you have any further query ask in the comments. Thanks for reading. Have a nice day.
