Hello, readers welcome to the new post. In this post, we will learn the AD3232. It is a sensor and less cost employed to do the measurement of the heart working in form of electrical. The electrical behavior measured by this module is called ECG and its result is shown innumerable forms.
in this post, we will learn different paraments of this sensor with details like pinouts working, application, and common uses. So let’s get started.

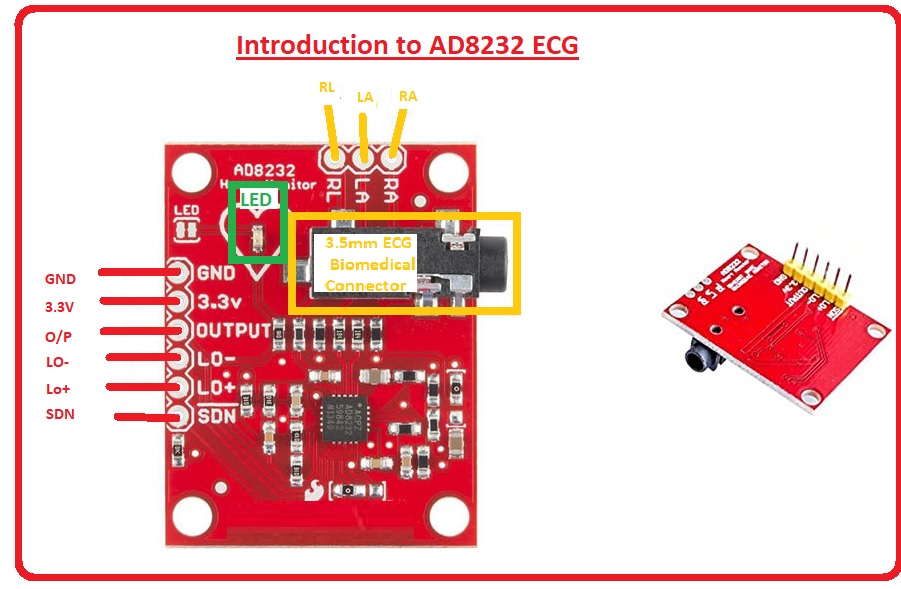

Introduction to AD8232 ECG
- The AD83232 electrocardiogram comes with the integrated circuit of AD3232 and is configured to it through the use of analog components.
- These analog components help to amplify and extract of the signal measured through this module.
- Since the ECG is a very noisy process AD3232 operates like an operational amplifier giving a noiseless sound.
- For configuration to the other sensing devices, there is pinouts RA, LA, and RL are configured on it.
- The 3 main functions of these devices are signal extraction amplification and filtration.
- It is an integrated signal conditioning block of ECG and is used for measuring biopotential values.
- Its layout is such that it gets, amplifies, and filters bipotential signals with noise conditions that are caused by motion or remote electrode placement.
Pinout of AD3232
- The main pinouts of these modules are listed here with the details
- RL: The signal measured through these pins from the electrode attached at right leg
- LA: A signal is taken from these pins linked to the left arm electrode.
- RA: The signal is measured from this pinout electrode linked to the right arm
- SDN:Â It is shut down mode used to control the input power
- Output: From this pinout filtered response of hearts is taken
- 3.3V: Here 3.3 volts are given
- GND: Ground is attached here
AD8232 ECG FeaturesÂ
- The main features of AD3232 are listed here with the details.
- The physical dimension of board is 3.5 by 3 centimeters
- its recording speed is high which helps to filter the signal
- working volts: 2 to 3.5 volts
- It comes with two to three electrodes
- CMR for this board is eight decibels
AD8232 ECGÂ Application
- Its main applications are explained here.
- It used for the biopotential signal acquisition process
- employed in handling ECG devices
- used in health monitor devices
- used to measure the fitness level
- EMployed in games.
Technical Features
- Supply Voltage: 3.6 V
- Maximum Junction Temperature: 140°C
- θJA Thermal Impedance: 2 48°C/W
- ESD Rating
- Human Body Model: 8 kV
- Charged Device Model: 1.25 kV
- Machine Model: 200 V
- Output Short-Circuit Current Duration: Indefinite
Maximum Voltage, Any Terminal: +VS + 0.3 V
Minimum Voltage, Any Terminal: −0.3 V
Storage Temperature Range: −65°C to +125°C
Operating Temperature Range- AD8232ACPZ −40°C to +85°C
- AD8232WACSZ −40°C to +105°C
What is the ECG module AD8232?
- AD8232 Heart Rate Monitor is a low-cost board used for measuring the electrical activity of the heart. This activity is made in the form of graphs like ECG and output in analog readings
How accurate is the AD8232 ECG sensor?
- The error value of detection of the fitness level of a person with a sensor pulse and manual is about 2.043%.
- Its sensitive value is about 97.63%, the specificity value is 5.82%, and the accuracy value is 50.35%.
Where do you put the AD8232 ECG electrode?
- Right arm on the front of the forearm or on the right side of the chest.
- left arm on the front of the forearm or on the left side of the chest.
- Right leg on the middle thigh
What size is AD8232?
- AD8232 is available in a 4 mm × 4 mm
What is lo+ and lo in AD8232?
| Board Label | Pin Function | Arduino Connection |
| OUTPUT | Output Signal | A0 |
| LO- | Leads-off Detect – | 11 |
| LO+ | Leads-off Detect + | 10 |
| SDN | Shutdown | Not used |
Which ECG is most accurate?
- Accuracy is the main factor for ECG machines and 12 Lead ECG machines are high-accuracy machines for measuring heat working. Use 12 lead ECG machines over 6 lead or one lead most reffered.
What is the frequency of the ECG sensor?
- ECG frequency value is about 0.5Â to 150 Hz, and filters made for removing noise for high and low end and are normally easy. The process becomes tricky when interference overlaps to the ECG frequency range.
What is the sampling frequency of AD8232?
- It can be about 2000 hZ without loss of data in serial cable transmission and offers a record of ECG signal for 24h at a sampling rate of 360 Hz.
How does AD8232 work?
- The AD3232 is the chip that finds the electrical activity of the heart. That activity can be defined as ECG. Electrocardiography is used for finding different heart conditions
Read also:
That is all about the AD3232. I have explained the all parameters of this device still you have any further query ask in the comments. Thanks for reading have a good day.
