30 Basic Examples of Inclined Plane

An inclined plane is a type of simple machine that has a sloping surface. It is stationary and lacks moving parts. Inclined planes help raise heavy objects easily by applying force against gravity. Inclined planes are important in our daily lives and play a role. In this post, we will cover daily life examples of inclined planes and learn their practical uses. So let’s get started.

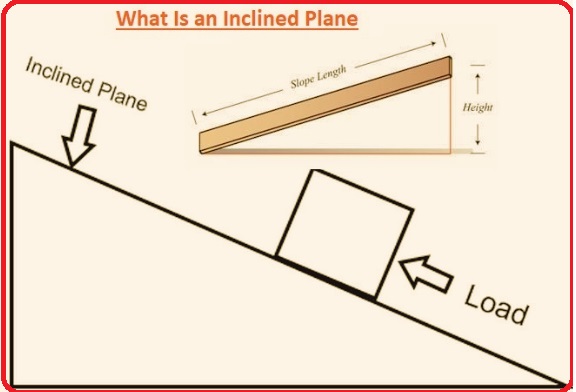

What Is an Inclined Plane?

• An inclined plane, also called a ramp, is a flat surface tilted at a certain angle from the vertical direction, with one end at some height and the other at the ground. It is used for raising and lowering heavy loads that are not easy to move.
• An inclined plane is also a part of simple machines that helps to move heavy loads, like a ramp loading goods into a truck or a railroad train climbing a grade.

• Moving a body upward on an inclined plane needed less force as compared to moving it straight upward.

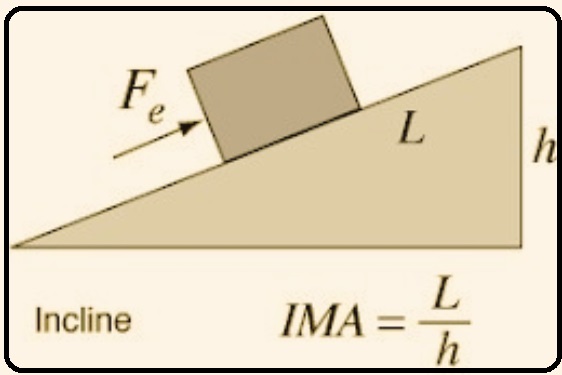

• Its mechanical benefit is that the parameters through which force is minimized are equal to the length of the sloped area to the height.
• According to the conservation of energy, the same amount of mechanical energy is needed for lifting an object at a vertical distance, without friction losses. But an inclined plane allows the same work with a small force applied for a larger distance
• friction angle The other is the angle of repose, which is the highest angle where a load stays in a motionless state on an inclined plane due to friction without moving down. That angle is equal to the arctangent of the coefficient of static friction μs in the surfaces.

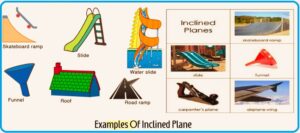

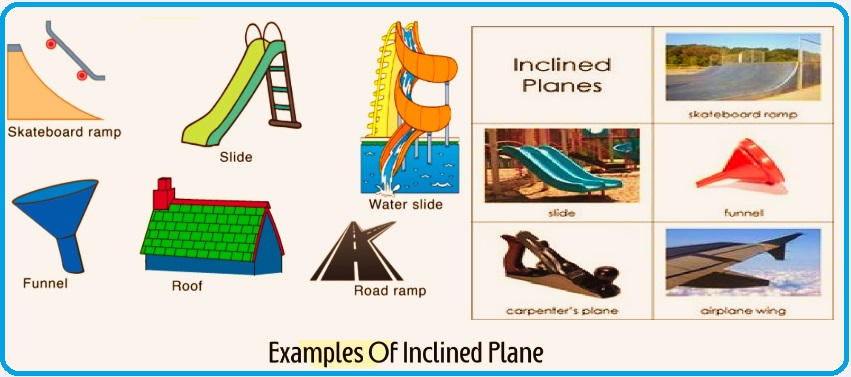

Inclined Plane Examples in Everyday Life

Read also 20 Screw Simple Machines Examples

Garbage Dumping

• Trucks used for garbage dumping come with a system that tilts the container automatically and connects back to the truck for garbage dumping. Container tilted features make an inclined plane. When garbage is dumped through gravity affects.

Pyramids

• When you see pyramids, many questions come to your mind. How they made the pyramid by lifting heavy blocks. So the answer is that they did not lift but used inclined planes for dragging blocks to a high point.
• So we can say pyramid construction used inclined planes.

Stairs and Ramps

• In hospitals, homes, and shopping malls, you have seen inclined planes connected to staircases. This place is used for walking and easily dragging objects.
• in hospital inclined plane helps to move up and down a wheelchair easily

Moving Vans

• Moving vans come with an inclined plane connected at the back side. So heavy objects are difficult to place in the van manually, so an inclined plane helps to load and unload objects easily.

Slide

• Slides, which you may see daily in your nearby park, are also examples of inclined planes. One end of the slide is connected to the ground, and the other is lifted and connected to the staircase.
• The difference in the height of the plane is the inclined plane. when a child sitting on top of the slide reaches towards the lower point, the gravitational force.

Stunt Ramps

• stunt ramps, also inclined planes on which stunts are performed on a skateboard or motorbike.  A raised surface gives the driver the required speed for performing stunts.

Mailbox

• A mailbox is also a simple machine, since chutes used for mail dropping also make inclined planes. Slanting like a channel connected with a letterbox receiving point makes the mail slide easily downward without any hindrance for your mail.

Funnel

• • The funnel is designed with two combined shapes: a cylinder and a cone. The curved area of the cone is used as an inclined plane for pouring liquid in. The inclined shape of the slope makes the easy movement of fluid downward.

Hills

• Hills are also an example of an inclined plane since the top height difference and the lower part of the hill are seen to increase when moving in an upward direction.

Roofs

• In some hilly areas, you have observed that buildings’ roofs are of a slanting design. Since when has a slope added to a building’s roof helped rainwater and snow to move downward? These roofs are classic examples of inclined planes.

Hiking Trails

• Hiking trails also have inclined planes, mostly used for hilly areas where trails cause steep slopes. These inclined paths help hikers go up and down easily while skating and exploring nature.

Ski Slopes

• Ski slopes are also inclined planes employed for snowboarding and skiing. These slopes have different steepness and difficulty levels for skiers. ski slopes used for lifting and tow ropes for shifting skiers to the next run

Roller Coasters

• Roller coasters also operate on inclined planes that cause rides according to gravity-based motion. Inclined tracks help roller coaster cars to move up steep slopes; moving downward, thrill drops, and twists cause a good riding experience.

Escalators

• Escalators we see in our daily routine also examples of inclined planes that are installed in malls, airports, and offices. It has steps and loops that move over inclined planes and help passengers to move to different levels of the building.

Dock Ramps

• Dock ramps are also inclined planes that are part of loading and unloading cargo from ships. Through using these ramps, goods shift between different transportation modes and storage areas, like distribution points and warehouses.

Car Ramps

• Car ramps are used in car parking areas, garages, and vehicle repair centers for maintenance. This ramp helps vehicles move up to a certain level for repairing, inspection, and storage.

Water Slides

• In amusement parks, our children enjoyed every slide, which is a type of inclined plane. where water flows from high to low points causes a ride.
• The rider moves on the plane with water movement and completes the ride, twisting and turning, and gets a good experience.

Sled Runs

• Sled runs are also inclined surfaces covered with snow used for sledding purposes. Such runs also provide enjoyment during winter and help us take down slopes sliding on sleds.

Avalanche Barriers

• Avalanche barriers are used in hilly areas to minimize avalanche damage. This barrier is constructed with concrete or steel and used over inclined surfaces for easy snow movement during avalanches to save lives.

Ski Jump Ramps

• ski jump ramps used in ski jumping competitions. These ramps come with a steep slope and takeoff table, where skiers get speed before launching into the air for jumps, and for skiing skills and athleticism for competition.

Aircraft Carrier Ramps

• Aircraft ramps, also known as ski jumps, are angled decks existing on aircraft carrier bows. These ramps are used for fixed-wing plane launching, where extra lift is produced during takeoff; they are also used for short takeoff and vertical landing.

Read also: Examples of Conduction in Real Life

Applications of the Inclined Plane

There are different applications of an inclined plane.

• sloping rod is used for making a connection between the roadway and the bridge.
• • A ramp is an inclined plane employed in place of a staircase for wheelchairs at different shopping malls and buildings.
• Ancient pyramids used ramps for shifting heavy stones at height.
• In the parking area, you have seen ramps for moving vehicles from the basement to the ground floor and vice versa.
• In front of our homes, a sloped driveway exists that vehicles move through to the entrance area.
• stunt ramp used for performing motorcycle stunts
• Slides are used in playgrounds for fun purposes. And waterslides in water parks are also inclined planes.
• Mailboxes also feature an inclined design to facilitate the placement of letters into the box.
• Funnel-inclined design helps liquid flow easily into the flask.
• In your rooms, slanted roofs exist that help water and snow to move to avoid storage on the roof.
• In math, inclined planes make vector resolution in vertical and horizontal planes.
