WHICH SIZE WIRE IS USED FOR ELECTRIC DRYERS?

Older types of electric dryers come with 3 conductors, which are two hot wires and one is used as ground and neutral wire. There was no dedicated ground slot on the outlet and the dryer cords did not come with a ground wire or ground prong. It worked well but came with chances of electric shock due to a combination of ground and neutral wires. In 1996 NEC used 4 conductor outlets having separate ground that reduces the chance of current back to the machine, which causes shock or fire. All newly used dryers must have compatibility with 4-prong grounded dryer cords. So let’s get started WHICH SIZE WIRE IS USED FOR ELECTRIC DRYERS?

Table of Contents

How Many Amps Does an Electric Dryer get?

The circuit of the electric dryer must need 30 amps minimum. The 30 amp dryer is best to use for homes. With that 40 amps and 50 amps dryer can also used.

40 amps loads are commonly used for dryers having high load and high power needs.

The 50 amp dryer is highly used for power demands. It is used in industries. Most electric dryers used are 220V/240V, and 110/120V is not common and only used for gas dryers.

It is best to use a breaker of accurate ampacity value with an electric dryer. If the circuit ampacity is low for the dryer, it gets tripped and avoids using the dryer. If it is high can chance of current occurrence.

Electric Dryer Wire Size

Copper wire Size

30-amp dryer, =10 AWG copper wire
40-amp dryer, = 8 AWG copper wire
50-amp dryer= 6 AWG copper wire

Aluminum wire Size

30-amp dryer= 8 AWG aluminum wire
40-amp dryer= 6 AWG aluminum wire
50-amp dryer= 4 AWG aluminum wire

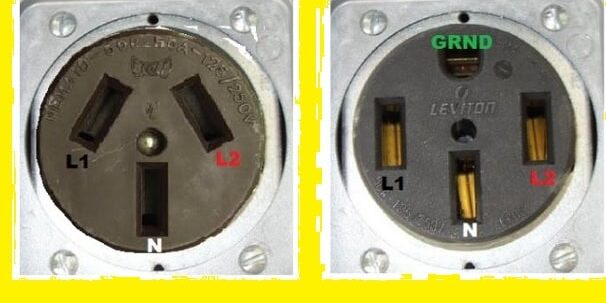

3-Prong vs. 4-Prong Outlets of Electric Dryer

Electric dryers connected at homes before 1996 used 3 conductor circuits that had 2 live wires and one wire used as ground and neutral. The cable does not come with ground slots and does not have a separate ground wire.

it used a 3 spring outlet called NEMA 10-30 and grounding in this outlet is made through a neutral wire.

In 1996, the NEC code used 4 prong outlets with distinct ground and neutral wires.

The 3-prong outlet can work well using a 4-prong outlet enhances safety measures since it reduces the chances of electric shock to zero. Dryer made after 1996 uses 4 prong outlet and cable with 4 conductors: 2 live, one neutral, and one ground wire

Can Aluminum Wire be used For The Electric Dryer

Aluminum cable is safe to use for larger electric circuits like dryers, electric stoves, AC units, and hot hubs. These circuits come with screw terminal connections strongly, which open rooms for aluminum cables. So use aluminum wire for 40 amp and 50 amp circuits.

For a 30 amp circuit with strong screw terminals, the connection is not common so copper is best to use. Aluminum is not a good conductor compared to copper but the reason for choosing it is low weight and cost.

Wire operations for dryers are short and cost parameters for dryer connections are important. The copper THHN/THWN and NM-B are easy to access, and the main cause for choosing aluminum is its good handling.

Installing Factor for Dryer Outlet

Set the dryer outlet box at the proper position for both the dryer cord and dryer vent. If possible dryer must connect close to the wall to reduce the length of the vent run.
Local codes do not define installation height for a dryer outlet so the best is to reach the plug without the dryer away from the wall. For 5A height is 30 to 36 inches from the floor surface to make the plug easy to access.
Set the outlet in the proper direction so an L-shaped slot is best at the lower part. It makes sure the dryer cord does not move down from the outlet.

What Wire Use For a Dryer?

A commonly used electric cable for electric dryers is the NM-B cable. Wheel reinvent is not needed, NM-B is easy to connect for dry places where the electric dryer is connected.
For outlet connected on surfaces like concrete or block wall circuit is connected with the use of insulated wires like (THHN/THWN) within nonmetallic or EMT conduit.
The outlet can be defined as a surface mount outlet or standard dryer receptacle connected to a surface-mounted box. The cause for using THHN/THWN wires is according to NEC. Surface-mounted installations have more protection than conduit provides.

Read also:

Faqs

What size wire to use for a 220V dryer?

10 AWG copper is used for circuit length if the circuit length is larger then use 8 amps. Most electric dryers are 30 amps, that is handle #10 copper will safely carry

Can I use 10^3 wire for a dryer?

If Dyer takes 2 hots and one neutral wire and ground use 10/3 to junction box to breaker box for replacing 10/2 if possible and connect 10/3’s together.

Should I use 3 wire or 4-wire for dryer?

For installation, it is considered code-compliant for the Kitchen range or cloth dryer to be connected with the use of a 3-wire cord and plug. For the new installation of the kitchen range and cloth dryer needed a 4-wire cord and plug

Can I use 12 gauge wire for the electric dryer?

Wire 110V/120V electric dryers that are connected to the wall outlet with the use of 14 or 12 AWG wires. If the outlet comes with a 15 amp breaker use a 14 gauge wire. if the outlet comes with a 20 amp breaker use a wire dyer circuit with use of a 12 gauge wire. for a 30 amp breaker use 10 AWG wire.

What size wire do I need for a 220 outlet?

Wire size for 220 V outlet based on current use and length of wire. For different applications, the 12 AWG copper wire is used for circuits of about 20 amps, and the 10 AWG copper wire is used for circuits up to 30 amps

How many amps can 14 gauge wire handle at 220 volts?

The gauge defines the rating of the fuse or circuit breaker in amperes. The circuit having 14 gauge copper comes with a 15 amp circuit breaker. The circuit with 12# copper wire gets a 20 amp breaker and 10 gauge wire uses 30 amps etc. are heavy to handle the electrical load in amps.

Should I use 8 or 10 gauge wire for dryer?

For 30 amp dryer uses 10 AWG copper wire and 40 amp dryer uses 8 AWG copper wire and the 50 amp dryer, uses 6 AWG copper wire

Can you convert a 3-wire dryer to a 4-wire?

Disconnect the older 3-wire cord from the dryer remove the bonding strap between the ground and neutral terminals and connect the new 4-wire cord. Black L1, red to L2 white or grey to neutral, and green/yellow, or bare to ground.
