What is DB9 Connector, Types, Pins, Features & Uses

DB9 is a connector that is also called D-subminiature connectors. DB9 comes with a small footprint and has a 9-pin or 9-hole pinout. It is normally used for electronic devices for serial data transfer and communication features. It comes with a trapezoidal design, and the connectors come with strong connections and low detachment features. In the metallic casing, their 9 pins are configured in 2 rows. In this post, we will go over features and other factors for finding its practical uses. Let’s get started with an introduction to DB9 connectors.

What is a DB9 Connector?

The D-subminiature comes with 9 pins, also called DB9 connectors, which is part of serial data transmission and communication.
It has 9 pins that are configured in a metallic or plastic casing, and a metallic housing is D-shaped.
For making a strong connection and reducing the chances of disconnection.

Its pins are made with conductive materials like copper and a metallic shield, which helps to avoid electromagnetic interference and provide good connection features.
Their serial communications features are used for industrial automation, telecom, and networking systems and for making connections of different devices such as routers and barcodes.
It is also part of embedded systems, such as those used in PLCs and microcontrollers for programming and debugging.

DB9 Connector Design

Trapezoidal Structure:

For making a connection with the mating connector, DB9 comes with a trapezoidal design. This shape helps the connector to make a strong connection with the cable and reduces the chance of disconnection or damage at the time of insertion.

Metal Shielding:

DB9 connection pins are covered with a metallic shield that is steel. This shielding provides EMI protection, pin protection, and increases connector durability.

Pins:

It comes with 9 pins in two combinations, and the connector casing is made with plastic or metallic housings and pins that are copper or any other conductive material. When connected with any supported connections, each pin is connected in the accurate position.

Mounting Holes:

It has mounting holes on DB connectors that can be used for screw-in connector bodies. The mounting panel connected with the connector through holes with the use of screws for making strong connections.

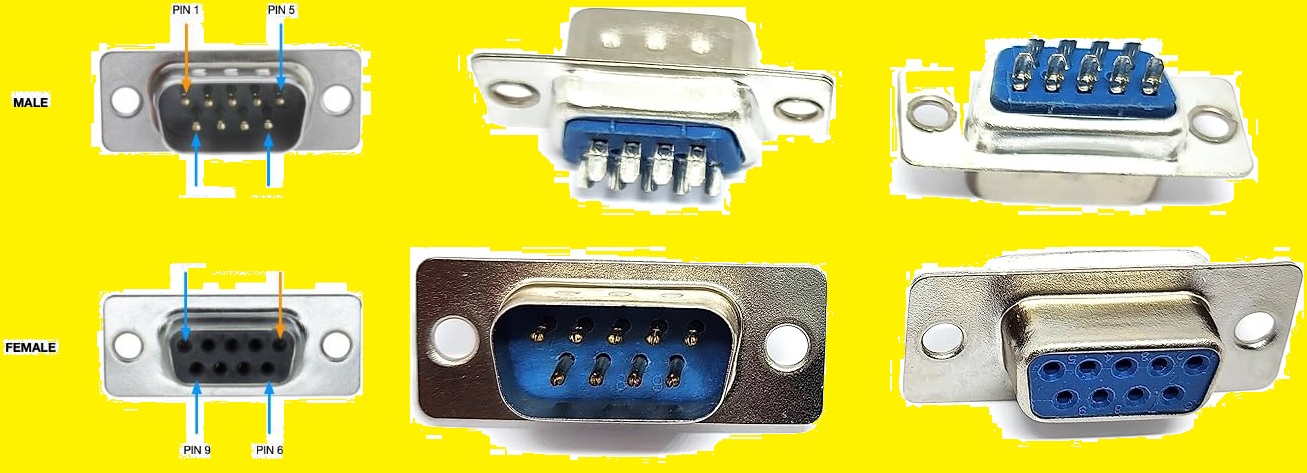

Gender and Orientation:

• The DB9 connector also comes with male and female options; male features come with protruding pins, and the female part has receptacles for pins receiving. Based on the uses, the connected devices’ gender, and the direction of the connector used.

Screw Locks:

It also has locking features for making strong connections between DB9 connectors. These lock features also provide stability for any disconnections.

DB9 Connector Pinout

Data Carrier Detect (DCD)

It is used for connection detection with the modem.

Receive Data (RXD)

It is used for data receiving with connected devices.

Transmit Data (TXD)

It transmits data with connected devices.

Data Terminal Ready (DTR)

It signals devices for communications.

Ground

It is ground communications pins.

Data Set Ready (DSR)

It is a signal that shows the modem is ready.

RTS

It requests permission for data transmission.

CTS

It permits sending data.

CTS

It permits data sending.

Ring indicator

It shows that the modem detected a ring signal.

DB9 Connectors Features

Compact:

The DB9 has 9 pinouts and a compact design and is best to use for devices where space is important or where different connectors are needed to connect.

Standardized Pinout:

This configuration of DB9 is standardized, which helps to make connections with different devices. Devices made from different manufacturers help to communicate wth each other in proper way for standardized pinout.

Durable Design

This connector is made with steel or plastic, providing a durable nature of design and long-term reliability for working. Their durable design easily helps to handle EMI and mechanical damage through metallic shielding surrounding the pins.

Strong Connection:

The locking features of DB9 connectors help to make a strong connection with other connectors. Due to vibrations and movements, disconnections can occur, so the locking system is important to handle vibrations.

Applications:

It is used for industrial automation in telecom systems, also part of networking and computer devices. DB9 connectors are also used for different devices. They are equally used for industries and commercial applications.

Easy Installation:

Threads on connectors help to make a strong connection with the device or mounting panels through screws.

Supported Legacy Systems:

Their compatibility features with legacy systems and devices, DB9 connectors, are used for different fields irrespective of the use of USB and Ethernet.

Low cost

Data transmission on serial connections through the DB9 connector is a lower-cost option than new technologies. They are used for industries and commercial applications.

DB9 Connector Equivalents

Connector Type	Pin	Uses	Description
DE-9	9	Serial communication (RS-232)	It comes with the same pins as the DB9 has but a small size
DB25	25	Parallel and serial communication	It is a larger size as compared to DB9 and used for RS-232, printers, and older networking.
RJ45 (Serial)	8	Serial and network communication	USed for console connections especially for networking devices.
USB-A to Serial	Varies	Serial to USB communication	It transforms DB9 serail connection with USB interfacing, connects old and new technology.
RJ11 (Serial)	6	Telecommunication	It is used in telephone and modern connections for providing serial data.
Mini-DIN (PS/2)	6	Legacy peripherals	It is used for serial connections in older omputer systems

Working of DB9 Connectors

Data Transmission:

Data is transmitted in a serial combination, which means bit by bit. Such as for transmitting ASCII, it is transformed into binary numbers and then sent in a series of voltages. The RS232 standard defines voltage levels for logic states; normally, negative voltage denotes logic 1 and positive voltage shows logic 0.

Control Signals:

For handling data flow control, a signal is also used. Such as requests to send and CTS signals, make compatibility with devices for communications, and provide features to send data when the receiving device is ready to get.

Start and Stop Bits:

Each data packet started with a start bit 0 to signal the start of transmission and ended with one or more stop bits to show the transmission end. This framing helps to define where each byte of data begins and ends.

Types of DB9 Connectors

Male/Female:

Connectors come with male or female terminations that are used for making connections between different connections.

Straight/Crossover:

These connectors maintain pin-to-pin wiring and crossover connectors swap certain pinouts, making a direct connection between devices of the same type, such as a computer with a computer.

Right-Angle:

These connectors come with a 90-degree bend and provide installation in tight spaces.

FAQs

Are DB9 connectors still used?

Either USB and Ethernet are new connectivity standards, DB9 connectors are also used, especially for industries and commercial applications for providing support with legacy systems. It is also used for serial communication and data transfer since they are reliable and low-cost options.

What is a 9-pin connector used for?

Serial 9-pin connectors are used for different applications, such as industrial automation for the connection of the control system and sensors.
In telecommunications, modems and networking devices make connections with these connectors.
It is also used for serial console connections like routers and switches.

Can DB9 connectors support newer interfaces?

There are adapter cables and converters that are used to connect DB9 connectors with new interfaces. USB to DB9 adapters make compatibility with devices like modern computers possible without the use of the driver. The use of DB9 to Ethernet converters helps DB9 to be used for serial communication, then the Ethernet system.

Are there any types of DB9 connectors?

Types of Connectors

Audio & Video Connectors (6)
D-Sub Connectors (88)
MIL-Spec / MIL-Type (60)
Modular Connectors / Ethernet Connectors (1)
Automotive Connectors (2)
Cable Assemblies (448)
Circular Connectors (65)
Power Connectors (34)

What is a DB9 connector?

The DB9 connector is a D-subminiature connector that comes with 9 pinouts. It is used for serial communication, especially RS232 interfaces, and connects devices such as printers and modems.

What are the main applications of DB9 connectors?

DB9 connectors are used for different applications such as serial communication, industrial automation, networking, and legacy devices.

How to connect the DB9 connector with other connectors?

DB9 connectors are made for serial communication and come with a standard pin that helps to make a simple connection with different devices. There are smaller sizes than D-sub connectors, such as DB25, and the best for devices with space limitations.

Can DB9 connectors be used with modern devices?

DB9 connectors are used for different devices with a combination of adapters, like USB to serial converters. That helps legacy devices to connect with the contemporary system while maintaining RS-232 protocol.

Are straight-through and null modem DB9 cables different?

The straight-through cable connected with the resultant pin and was used for the connection of a computer to peripheral devices. While a null modem cable crosses the transmit and receive lines and provides a direct connection between 2 DTE devices without a modem.

What are the typical data transfer rates for DB9 connections?

DB9 connections are compatible with different baud rates, especially for 300 bps to 115200 bps or higher. The actual rate is based on features of connected devices and cable features.

What is the difference between RS-232 and DB9 connectors?

RS-232 defines serial interfacing and handles signal voltage and duration. DB9 defines a 9-pin connector that is used for RS232 connections, with a 25-pin replacement.
