The CR2016 battery is a lithium coin cell battery used in electronic devices. It has a 20mm diameter and 1.6mm length, a working voltage of 3 volts, and a capacity of about 90mAh. The CR2025 and CR2032 are used as replacements for the CR2016 battery since they have the same dimensions. This post will cover details for CR2016 battery features, working, and related factors. Solet’st get started with an introduction to the CR2016 battery.
Introduction to CR2016 Battery
- CR2016 is a lithium coin cell battery that is part of a small electronic device since it has a compact size and longer working life.
- This non-rechargeable battery and chemistry is lithium manganese dioxide (Li-MnOâ‚‚) chemistry, and the voltage for the battery is three volts.
- CR is coin lithium manganese dioxide, and 2016 defines battery dimensions as 20mm diameter and 1.6mm thickness.
- It has a high energy density, constant discharge features, and different working temperature conditions, such as -30°C to 60°C.
- The main uses for batteries are wristwatches, calculators, and other medical devices. It is a non-rechargeable battery and is disposed of after use.

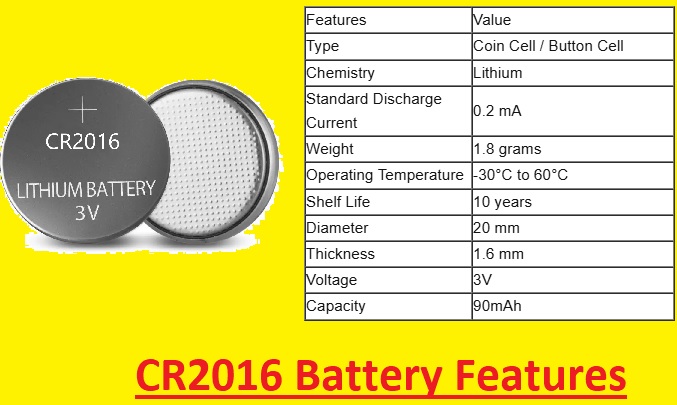

CR2016 Battery Features
| Features | Value |
| Type |
Coin Cell / Button Cell
|
| Chemistry | Lithium |
| Standard Discharge Current | 0.2 mA |
| Weight |
1.8 grams
|
| Operating Temperature |
-30°C to 60°C
|
| Shelf Life |
10 years
|
| Diameter | 20 mm |
| Thickness | 1.6 mm |
| Voltage | 3V |
| Capacity | 90mAh |
Voltage
- The voltage value for the battery is 3 volts and helps to operate our devices properly according to requirements.
Capacity
- CR2016 battery capacity is about 90mAh and does not work where high capacity is needed for more time.
Dimensions
The physical dimensions of the battery are 1.6mm in height and 20mm in diameter.
Brand
- Different brands, such as Energizer and Panasonic, make batteries with different qualities and features.
Application
- It is part of small electronic devices. watches, toys, and other modules

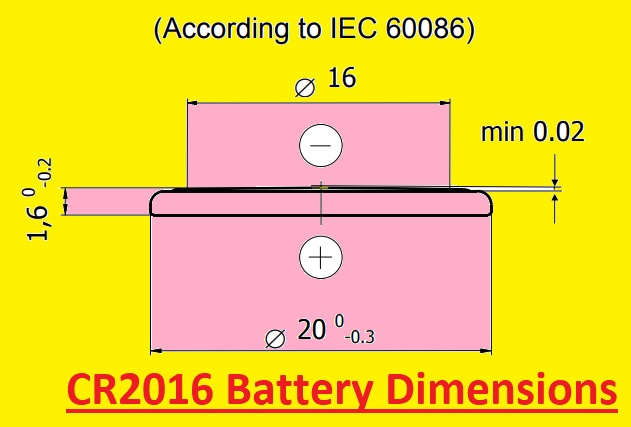

CR2016 Battery Dimensions
- The diameter of the battery is 20mm and the thickness is 1.6mm.
CR2016 equivalent battery
- The main CR2015 equivalent batteries are DL2016, ECR2016, CR2016-1W, 280-208, ECR2016, BR2016, DL2016B, BR2016-1W, SBT11, and KCR2016.
- All these equivalents come with the same height, voltage, and diameter.
- The direct replacements for the CR2016 battery are the CR2032Â and CR2025 batteries. Since they provide the same diameter and voltage, the height for CR2032 is 3.2 mm, and CR2025 is 2.5 mm.
CR2025:
- The CR2032 battery has the same diameter and voltage as the CR2016, with a difference of 2.5 mm in thickness. So it can be used.
CR2032:
- CR2032 has a high thickness of 3.2 mm, so if the battery compartment can handle it, connect the battery and replace it with the CR2016 battery. The working time of the CR2032 is longer as compared to the CR2016.
 CR2016 Equivalent Batteries Chart
| Model | Capacity | Self-Discharge Rate | Drain Current |
Operating Temperature
|
|
Duracell CR2016
|
80 mAh, | <2% annually @20°C | 0.1 mA cont. 5 mA cont. max 15 mA 1s pulse |
-20°C to +60°C
|
|
GP Batteries CR2016
|
95 mAh, | 4.0 mA cont. max. | ||
|
Maxell CR2016
|
90 mAh | – | 0.1 mA cont. |
-20°C to +85°C
|
|
Energizer CR2016
|
100 mAh, | 1% annually @ 20°C | 0.1 mA cont. 6.8 mA 2s pulse |
-30°C to +60°C
|
|
Panasonic CR2016
|
90 mAh | 0.1 mA cont. |
-30°C to +85°C
|
|
|
Murata CR2016
|
90 mAh |
-30°C to +70°C
|
||
|
Varta CR2016
|
86 mAh, |
-20°C to +70°C
|
||
|
Renata CR2016
|
90 mAh | <1% annually @23°C | 0.2 mA cont. 3.0 mA cont. max. |
-30°C to +85°C
|
R2016 Applications
- Heart rate monitors
- Digital watch
- Automobile applications
- Laser pens
- Small PDA devices
- Wireless doorbell for house
- Electronic Toys
- Portable electronics
- Digital thermometers
- Digital altimeter
- CMOS memory backups
- Memory cards
- Fitness applications
- Medical devices
- Calculators
Difference Between CR2016 and CR1616
| Features | CR1616 | CR2016 |
| Type | Coin Cell / Button Cell |
Coin Cell / Button Cell
|
| Chemistry | Lithium | Lithium |
| Standard Discharge Current | 0.1 mA | 0.2 mA |
| Weight | 1.2 grams |
1.8 grams
|
| Operating Temperature | -30°C to 60°C |
-30°C to 60°C
|
| Shelf Life | 10 years |
10 years
|
| Diameter | 16 mm | 20 mm |
| Thickness | 1.6 mm | 1.6 mm |
| Voltage | 3V | 3V |
| Typical Capacity | 50-55 mAh | 90mAh |
Is a DL2016 the same as a CR2016?
- These are lithium coin cells, and the basic difference is their manufacturers: Duracell made the DL2016 battery, and the CR2016 is made by different manufacturers, but the size, voltage, and other features are the same.
CR2016 vs. CR2032
| Features | Cr2016 | CR2032 |
| Battery Type | Lithium Coin Cell | Lithium Coin Cell |
| Model Number | CR2016 | CR2032 |
| Chemical Composition | Lithium Manganese Dioxide |
(LiMnOâ‚‚)
|
| Nominal Voltage | 3 Volts | 3 Volts |
| Diameter | 20 mm |
20 mm
|
| Shelf Life | 5-7 years | 7-10 years |
| Applications |
calculators, key fobs, fitness trackers, small electronic devices like watches, medical devices, etc.
|
|
| Compatibility/Interchangeability | Can be replaced with CR2025 or CR2032, but with low capacity and potential contact issues. |
Can be replaced with CR2025 or CR2016, but low capacity and potential fit issues
|
| Safety Standards | Built-in short circuit protection, over-discharge protection |
Built-in protection against short circuits and over-discharge
|
| RoHS Compliance | Yes, |
Yes,
|
| Height/Thickness | 1.6 mm |
3.2 mm
|
| Nominal Capacity | 90 mAh (milliamp-hours) |
220 mAh (milliamp-hours)
|
| Weight | 1.6 grams |
3.0 grams
|
| Operating Temperature Range | -20°C to +70°C | -20°C to +70°C |
| Max Discharge Current | 0.1 mA (continuous), up to 1.0 mA (pulse) |
1% per year at room temperature
|
Will a CR2032 work for CR2016?
- Both have the same voltage, 3 volts, and it is not good to use a CR2032 battery for a CR2016 battery since they have different sizes and fittings.
Size
- There is 20mm diameter and height is 1.6mm for the CR2016 battery, while the CR2032 battery has 20mm diameter and height is 3.2mm. CR2032 is thicker compared to the CR2016 battery which does not fit in devices where the CR2016 is used.
Performance:
- The CR2032 has a high capacity of between 225 and 250 mAh, and the CR2016 battery has 90 mAh.
Similarities Between CR2016 and CR2032
| Feature | CR2016 | CR2032 |
| Diameter | 20 mm | 20 mm |
| Shelf Life | 7-10 years | 7-10 years |
| Operating Temperature | -20°C to 70°C |
-20°C to 70°C
|
| Voltage | 3 Volts | 3 Volts |
| Battery Chemistry | Lithium manganese dioxide |
Lithium manganese dioxide
|
| Shape | Coin-shaped |
Coin-shaped
|
CR2016Â Discharge Characteristics after storage
FAQs
What is CR in batteries?
- CR is a label used by different battery manufacturers and used for batteries that have chromium, which denotes lithium batteries.
What is a CR2016 battery used for?
- CR2016 lithium coin battery used for providing high power. It is used for digital watches, fitness instruments, calculators, and toys.
Are CR2016 and CR2032 batteries interchangeable?
- We cannot interchange CR2016 and CR2032 for different conditions, since they have different dimensions. The CR2016 battery is thin and has a low capacity as compared to the CR2032 battery, causing improper fitting and affecting devices.
What are the advantages of the CR2016 battery?
- It has a longer working life.
- It works for different temperature conditions.
- It has high energy density and good discharge characteristics.
- It has a high capacity.
Are all CR2016 batteries the same?
- Either CR2016 batteries have the same chemistry and dimensions but different capacity, discharge features, and operating temperature that make them different.
Is the CR2016 battery rechargeable?
- No, it is a non-rechargeable battery.
How many volts should a CR2016 battery have?
- The nominal voltage for a CR2016 battery is three volts. When it works, the voltage drops to 2.7-2.8 volts. In discharged form, the voltage reduces to 2.0 volts.
What is the capacity difference between CR2016 and CR2032 batteries?
- The CR2016 battery has a capacity of about 90 mAh, and the CR2032 has a capacity of about 210 to 240 mAh.
What are the dimensions of CR2016 and CR2032 batteries?
- The diameter of the CR2016 battery is 20 mm, and the CR2032 has a diameter of 1.6 mm, and the CR2032 battery thickness is 3.2 mm.
Can we use a CR2032 battery for a CR2016?
- Yes, we can replace the CR2032 battery with the CR2016 battery since it has a high thickness and does not fit easily. For this purpose, the battery compartment needed more space.
Can a CR2016 battery be used for a CR2032?
- The CR2016 battery can be used for the CR2032 but has a smaller capacity and does not work longer. The CR2016 battery works longer since it has high power.
What are uses for CR2016 and CR2032 batteries?
- CR2032 batteries are used for different devices: watches, calculators, computer motherboards, and CR2016 batteries are used for automobile keys and small electronic devices.
What is the voltage of CR2016 and CR2032 batteries?
- The voltage value for the CR2016 and CR2032 batteries is three volts. That shows that they are supported with each other since they have the same voltage, but size and capacity are different.
Are CR2016 and CR2032 batteries interchangeable?
- They have the same diameter of 20 mm and a voltage of three volts; two batteries are not used interchangeably since they have different thicknesses. The thickness of the CR2016 battery is 1.6 mm, and the CR2032 battery is 3.2 mm. The devices that are used for CR2016 are not used for CR2032.
What is the result if a CR2016 is in a device that requires a CR2032?
- If we use CR2016 in place of CR2032, it can work for a short time, and CR2016 small capacity can cause devices to work well. The thin size also causes issues for making connections and results in damage.
