The 3-way switch is commonly used in our homes, buildings, and hallways to control the light at 2 different points. It also has features for converting 3-way to a single pole switch. This feature also applies to Lutron’s 3-way and multi-location controls like Vareo and Maestro. Here we will partially learn how to convert 3-way switch into a single pole and find its applications. So let’s get started.
What is 3 way Switch?
- The 3 Way switch is a light switch that helps control light soruce at two points. Such as for the control light in the staircase we can connect the light switches at the top and bottom of the stairs. So use of any switch we can control the light on or off.
- The one-way switch can controlled at one point.
Can a three-way switch be used as a single pole switch?
- Yes, it can done but needed a proper wiring process. if the switch is not accurately wired, it does not work in single pole configuration and can affect the system badly even causing fire. So get the services of an expert for conversion of three way switch into a single way.
How to convert?
- For conversion of 3 way switch into a single way remove one switch in the circuit. The easy method is to disconnect wires from one switch and cap it off so not to connect to anything. So make sure that current is not flowing in wires and resulting in short circuit then connect connect standard one-way or single pole switch.
For the conversion of a 3-way switch into a single way different configurations are used that are listed here.

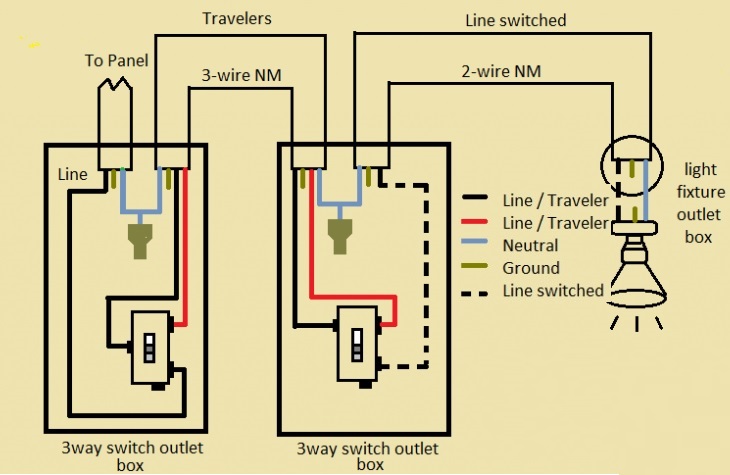

Basic 3-Way Switch Wiring Diagram
Here you can see a basic 3-way switch wiring diagram before converting into a single way.

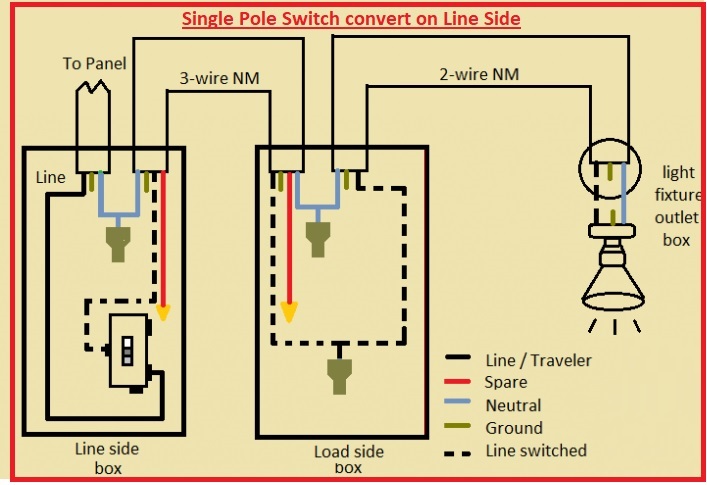

Single Pole Switch convert on Line Side
In the below figure on the line or left side of the outlet box, remove one of the traveler wires from the 3-way switch and connect wire connectors to spare it. The other point of the wire is connected in a load side box.
On the load side box, disconnect the switch. Connect the wire connector for the cap off another point of traveler wire that is spare. Make the connection of a 3-way switch common wire with other traveler wires for providing line voltage to light. Then connect the blank cover.
Single Pole Switch convert on load Side
In the line side box, disconnect the 3-way switch, then connect the line wire with one traveler wire to supply line voltage on the load side box through use of a wire connector.
Then connect wire connectors on each side of the other traveler for sparing it. Then connect the blank cover on the box. If load side box, disconnect the traveler spare wire of the switch and connect the wire connector with it.
Can you wire a 3-way switch with two wires?
- The conventional 3-way switch configuration needs 3 wires, the hot wire, traveler wire, and neutral wire. Without all 3 wires, the standard 3-way switch not work well.
Can we use a 2 way switch for 1 way?
- Yes, it is possible to use 2 way switch for one way switch. Some manufacturers not make one-way switches since they make only two-way switches.
How to Wire 2-Way Switches For 1-Way Switching?
In two-way switches, there is a common pin and L1 and L2 terminals. For 2 way switching, there is a need to make the connection of L1 and L2. For one-way switching, there is one connectionless, so use L1 connection. Then left open connection L2.
Can a Light Switch Convert into Outlet?
Yes we can convert the light switch into an electrical outlet. But as we know outletes and light switches have different workings, the wring of both is different for conversion.
How to convert Switch into an Outlet
Follow these points
- First of all find which circuit is controlled with the switch on and then remove the switch from the wall and label the wires connected to it. Note that generally black and red wires are live wires and white wire is neutral.
- Now connect all wires accurately for the switch to work properly. For this purpose get the services of a professional. If the original connected switch is not accurately wired can cause issues. So accurately do each process.
Difference between a single pole and a three-way switch
- The single-pole switch is a switch type that is used for controlling light or electrical devices at one point. It comes with two points, one used for incoming hot wire and another for outgoing connected with load device.
- While a 3-way switch is used for controlling ight or other devices at two or more different points. Its three main pins are the common terminal and two travelers pins.
Can a 3-way switch have wiring like a single pole?
- The 3-way switch can be connected or wired like a single-pole switch. For this purpose, connect the incoming live wire with the common point and the outgoing wire with any traveler point. The other travler point was not used. So these features can also be used for the conversion of a three-way switch into a single-pole switch.
Why does a single-pole switch have 3 wires?
- The single-pole switch comes with 3 wires that are ground wire, live wire, and neutral wire. The ground wire provides a path for current if there is a short circuit, and the hot wire is used to provide current to the load.
- A neutral wire is used to provide a return path if there is current moving back to the source. So not all single-pole switches need a neutral wire, and some can come with two wires.
