Best NiMH Batteries for Arduino Projects: Power Stability & Setup Guide

The best NiMH batteries for Arduino are not always the cells with the highest capacity. In most Arduino projects, stable voltage delivery is often more important than maximum runtime. Whether you are building a sensor node, educational kit, robot, data logger, or portable controller, the battery you choose directly affects reliability, performance, and operating time.

NiMH rechargeable batteries remain one of the most practical power solutions for Arduino users because they are safe, reusable, widely available, and capable of delivering consistent current under moderate loads. However, using the wrong battery configuration can lead to random resets, unstable sensor readings, wireless communication failures, reduced runtime, and unnecessary troubleshooting.

In this guide, you will learn how Arduino boards use battery power, how NiMH batteries compare with lithium-ion and alkaline alternatives, which battery configurations work best for different Arduino projects, and how to avoid the most common power-related problems that affect stability and long-term performance.

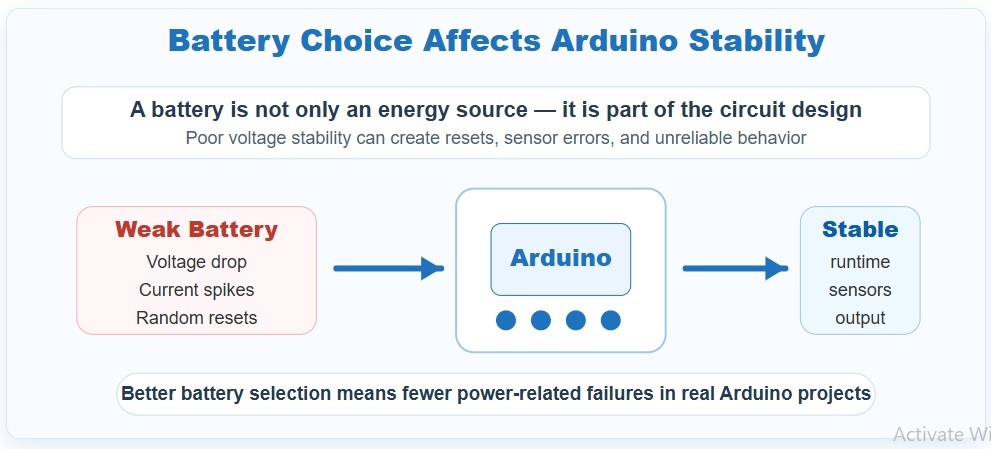

Why Battery Choice Matters in Arduino Projects

When you build an Arduino project, it is easy to focus on code, sensors, modules, and wiring while treating the battery as a simple accessory. In reality, the battery is part of the circuit design. A low-quality or poorly matched battery can make a working prototype behave like a broken one. You may see random Arduino resets, unstable sensor readings, flickering LEDs, wireless modules disconnecting, or motors starting for a moment and then stopping. These problems are often caused by voltage drop, weak current delivery, or using the wrong battery chemistry for the load.

Arduino boards need stable power because the microcontroller, sensors, communication modules, and attached devices all depend on a clean operating voltage. If the battery voltage drops suddenly when a motor starts or when a Wi-Fi module transmits data, the board may enter a brownout state and restart. This is why battery selection for Arduino is not just about choosing the highest capacity cell. Capacity tells you how much energy the battery can store, but it does not tell you whether the battery can keep voltage stable under real project conditions.

For many beginner, educational, sensor, and low-to-medium-power projects, NiMH rechargeable batteries offer a practical balance of safety, reusability, and predictable performance. They are easier to manage than lithium cells and more suitable for repeated testing than disposable alkaline batteries. However, even NiMH batteries must be used with the right number of cells, correct input method, and proper charging practice. Choosing the right battery helps your Arduino project run longer, behave more consistently, and avoid unnecessary troubleshooting caused by unstable power.

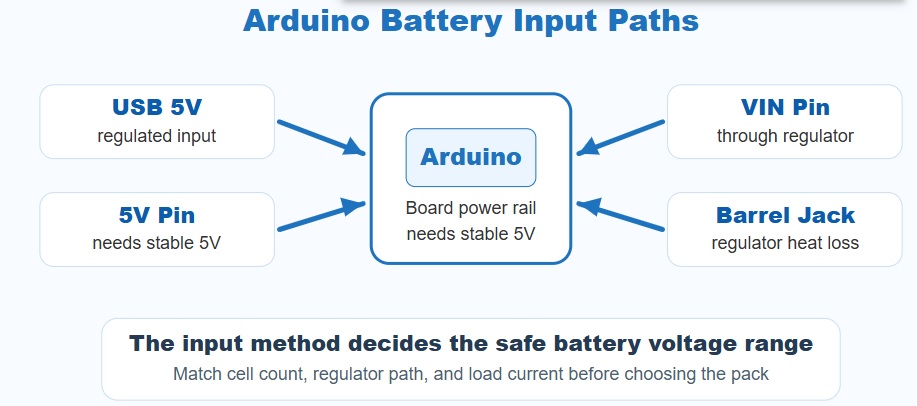

How Arduino Boards Use Battery Power

Before choosing a battery, you need to understand how your Arduino board receives power. An Arduino is not powered in the same way through every input. The most common power paths are USB 5V, the 5V pin, the VIN pin, and the barrel jack found on boards such as the Arduino Uno. Each input has different voltage expectations and different levels of protection. This is why the same battery pack may work well through one input but cause instability through another.

When you power the board through USB, the Arduino usually receives a regulated 5V supply. This is suitable for programming, testing, and low-power operation, but it depends on the current limit of the USB source. The 5V pin can also power the board directly, but this input should only be used when you already have a stable regulated 5V supply. If you connect an unregulated battery pack directly to the 5V pin, voltage that is too high can damage the board, while voltage that is too low may cause resets.

The VIN pin and barrel jack feed power through the onboard voltage regulator. This is useful when your battery pack voltage is higher than 5V, but it also creates energy loss as heat. For example, if you use a higher-voltage battery pack and the regulator has to reduce that voltage to 5V, part of the energy becomes heat instead of useful runtime. This is especially important in battery-powered Arduino projects, where every milliamp-hour matters.

This is why battery cell count matters. A 3-cell NiMH pack, 4-cell NiMH pack, and 5-cell NiMH pack do not behave the same way when connected to different Arduino inputs. You should choose the battery configuration based on the board type, input method, attached sensors, and current demand. Arduino power design is not about randomly connecting a battery; it is about matching battery voltage, regulator behavior, and load requirements so the board receives stable power throughout the project.

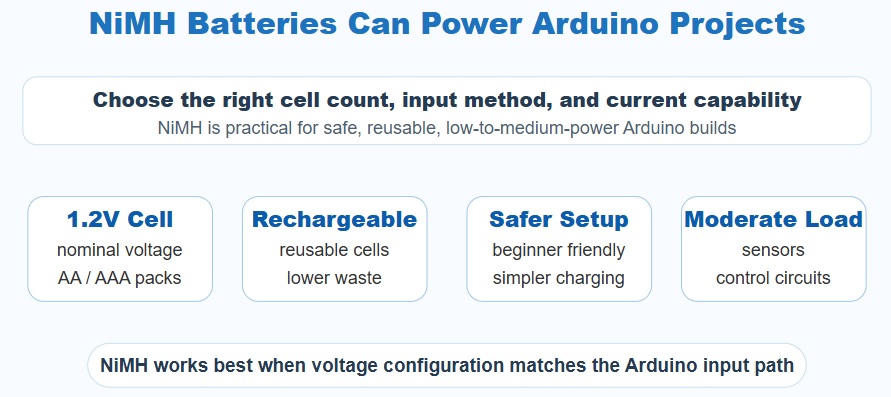

Can You Use NiMH Batteries for Arduino?

Yes, you can use NiMH batteries for Arduino, and they are often a practical choice for projects where safety, reusability, and simple battery replacement matter. A single NiMH cell has a nominal voltage of about 1.2V, so Arduino projects usually use multiple AA or AAA cells in series to reach a usable input voltage. This makes NiMH especially useful for Arduino education kits, sensor projects, portable test circuits, low-power controllers, and many low-to-medium-current embedded systems.

Compared with lithium-ion or LiPo cells, NiMH batteries are easier for beginners to handle because they do not require the same level of protection circuitry, balance charging, or strict safety management. This does not mean NiMH can be used carelessly, but it does make them more forgiving in classroom projects, hobby electronics, and repeated prototyping. If you are building a project that will be tested, recharged, modified, and used again many times, NiMH cells are usually more convenient than disposable alkaline batteries and less complex than lithium-based packs.

For projects that need safe and replaceable cells, NiMH rechargeable batteries are widely used in educational electronics, embedded devices, and portable tools. They provide good performance under moderate loads, especially when powering microcontrollers, sensors, small displays, relays, and control circuits. AA NiMH batteries are often preferred when longer runtime is needed, while AAA NiMH batteries can be useful when the project must remain compact.

The key is to choose the right number of cells and the correct Arduino power input. A 2-cell NiMH pack may be too low for many 5V boards without a boost converter, while a 4-cell or 5-cell pack may work better depending on whether you use a regulated 5V input, VIN, or an external power module. NiMH is not automatically the best battery for every Arduino project, but for safe, reusable, and moderate-current applications, it is one of the most practical options.NiMH works best when voltage configuration matches the Arduino input path

NiMH vs Li-ion vs Alkaline vs 9V Battery for Arduino

There is no single battery chemistry that is best for every Arduino power supply design. The right choice depends on your project size, current demand, required runtime, charging method, safety level, and whether the circuit will be used by beginners or experienced developers. A small desk prototype can often run from USB power, but a real battery-powered project needs a more careful decision. This is why comparing NiMH, lithium-ion, LiPo, alkaline, and 9V block batteries is useful before you build the final circuit.

NiMH batteries are not always the most energy-dense option, but they are often one of the most practical choices for Arduino beginners and educational electronics. They can be recharged many times, are available in common AA and AAA formats, and do not require the same protection requirements as lithium-based cells. For projects that use sensors, relays, small displays, and basic control circuits, a correctly selected NiMH pack can provide a good balance of safety and reliability.

Li-ion and LiPo batteries are useful when you need high energy density in a small package, especially for compact devices, wireless products, or projects where size and weight matter. However, they normally need a protection circuit, charging module, and voltage regulation. This adds complexity and increases the risk of mistakes if the project is handled by beginners. Alkaline batteries are simple and cheap for short experiments, but their voltage can sag quickly under load, and they are not cost-effective for repeated testing.

The common rectangular 9V battery is often misunderstood. Although its voltage looks suitable for Arduino boards with a barrel jack or VIN input, most small 9V blocks have poor current capability and limited capacity. They may power a simple blink test, but they are usually a weak choice for sensors, motors, wireless modules, or real embedded projects. For many practical Arduino builds, especially where safety and repeated use matter, NiMH remains a sensible choice as long as the voltage setup is planned correctly.

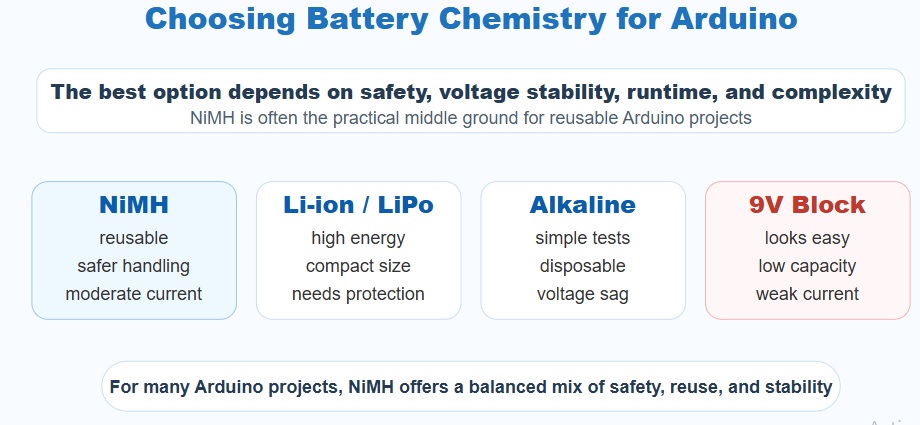

Figure 4. NiMH, lithium, alkaline, and 9V batteries each have different strengths and limitations when used as an Arduino power source.

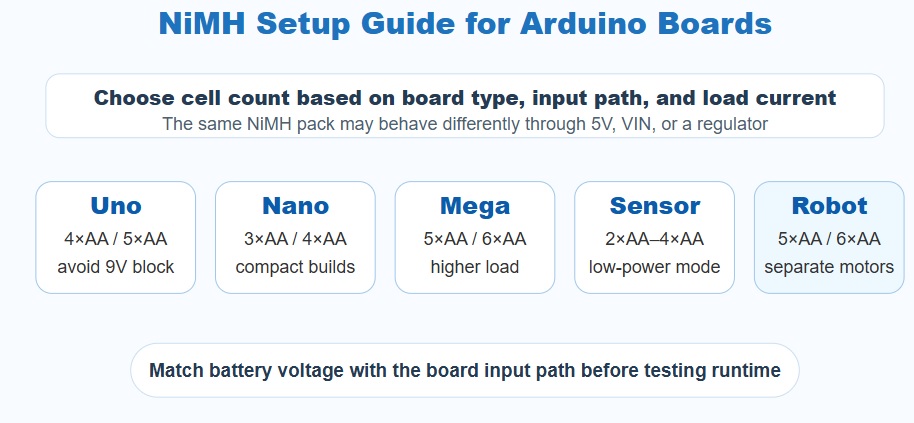

Best NiMH Battery Configurations for Arduino Boards

One of the most common questions in Arduino battery projects is whether you should use three, four, five, or six rechargeable AA NiMH cells. The answer depends on the Arduino board, the input path, and the load connected to the circuit. A 3-cell NiMH pack provides about 3.6V nominal voltage, which may be useful for some compact boards or regulated designs, but it is usually too low for a standard 5V Arduino setup without a boost converter. A 4-cell NiMH pack provides about 4.8V nominal voltage and can be useful when the circuit is designed around a stable 5V rail or an appropriate regulator.

For an Arduino Uno, 4×AA or 5×AA NiMH cells are often more practical than a small rectangular 9V battery. A weak 9V block may show enough voltage on a meter, but it often cannot provide enough current once sensors, LEDs, displays, or communication modules are added. For an Arduino Nano, 3×AA or 4×AA NiMH may work well when the power path is properly regulated. For an Arduino Mega, which may support more modules and higher current demand, a 5×AA or 6×AA NiMH pack with a suitable regulator is usually more realistic.

For Arduino sensor nodes, low-power mode often matters more than raw battery capacity. A well-optimized sensor node can run much longer on a smaller NiMH pack than a poorly optimized circuit using a larger pack. For Arduino robot cars, the motor load is usually the biggest issue. Motors create current spikes, so it is often better to separate the motor supply from the Arduino logic rail and use a regulator for the board. This prevents motor startup from pulling down the microcontroller voltage and causing resets.

For a deeper project-by-project recommendation, see our guide on best NiMH batteries for Arduino. The main rule is simple: do not choose battery cell count by voltage alone. Match the battery pack with the Arduino input method, regulator efficiency, expected load current, and runtime target. This gives your project a much better chance of running reliably outside the lab.

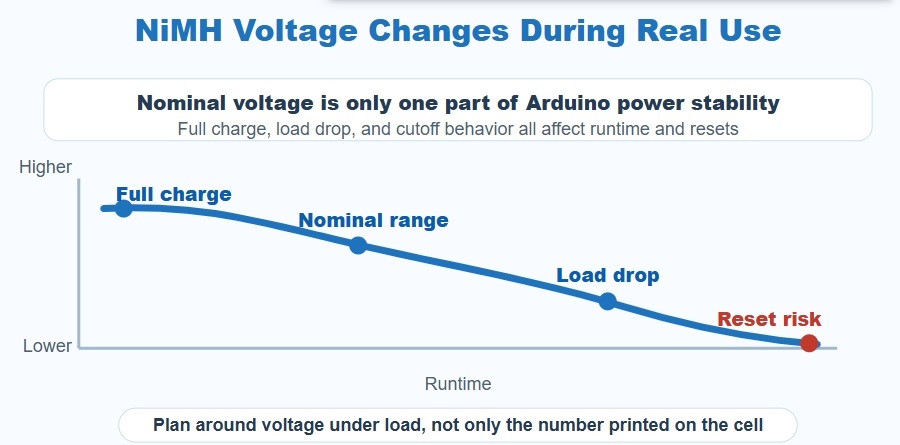

NiMH Voltage Behavior: Why Full Charge and Cutoff Matter

Many Arduino battery guides only talk about the nominal voltage of NiMH cells, but real battery behavior is more dynamic. A NiMH cell is commonly described as 1.2V nominal, but its actual voltage changes during charging, resting, and discharging. A fully charged cell may show a higher voltage than 1.2V, while the voltage gradually drops as the cell discharges. Under sudden load, such as a motor start or wireless transmission, the voltage can dip temporarily. If that dip falls below the level required by the Arduino or regulator, your project may reset even if the battery is not completely empty.

This is why NiMH voltage behavior matters in real Arduino projects. A battery pack that looks acceptable with no load may behave differently when sensors, displays, relays, servos, or communication modules are active. For example, a 4×AA NiMH pack may be close to a usable voltage range for some designs, but if the pack is old, poorly charged, or under heavy load, the voltage may fall low enough to cause instability. This is especially important for battery-powered sensor nodes and portable Arduino devices expected to run without supervision.

Charging behavior is also important. NiMH batteries should be charged with a suitable charger that can detect full charge and stop or reduce charging current correctly. Poor charging control can lead to overheating, overcharging, reduced capacity, and shorter service life. Because NiMH voltage changes during charging and discharge, understanding NiMH battery charging voltage helps prevent overcharging and early capacity loss.

In practical Arduino use, you should not judge a NiMH pack only by its printed capacity. Check the number of cells, expected load current, regulator efficiency, charging method, and minimum voltage your board can tolerate. If your project resets near the end of runtime, the battery may not be faulty; it may simply be reaching the point where voltage under load is no longer high enough. Designing around full-charge voltage, normal discharge voltage, and low-voltage behavior makes your Arduino project much more reliable.

How Long Will NiMH Batteries Power an Arduino?

When you build a battery-powered Arduino project, runtime is one of the most important questions. You are not just asking how much capacity a battery has, but how long it can actually support your circuit under real working conditions. The basic way to estimate runtime is simple and practical. You can think of it as dividing the battery capacity by the average current consumption of your system. This gives you a realistic starting point before you test the actual hardware.

In real NiMH battery Arduino projects, current draw is not always constant. Sensors may be idle most of the time, WiFi modules may transmit in bursts, and motors or relays may only activate occasionally. This means your actual runtime may be different from theoretical calculations. However, the formula below gives you a solid engineering baseline to plan your design before building and testing.

This means a 2000mAh AA NiMH pack running a 50mA load can theoretically last around 40 hours. If your project draws 100mA, runtime drops to about 20 hours. At 200mA, you may only get around 10 hours of operation. Higher capacity cells such as 2500mAh NiMH batteries extend runtime proportionally, but real-world performance will still depend on voltage stability, regulator efficiency, and load behavior.

It is important to remember that real-world runtime is always influenced by additional factors such as voltage conversion efficiency, sensor duty cycles, wireless transmission bursts, WiFi or Bluetooth modules, and motor load spikes. For example, an Arduino sensor node may consume very little current most of the time but spike during transmission, while a robot car may experience sudden current surges when motors start.

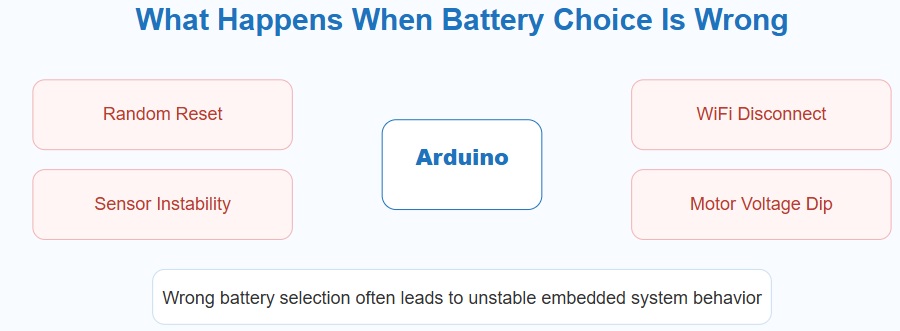

Common Arduino Power Problems Caused by Wrong Batteries

Many Arduino power issues are not caused by code or hardware defects, but by incorrect battery selection or poor power design. When the battery cannot deliver stable current or maintain voltage under load, the entire system becomes unstable. This is especially common in projects with motors, wireless modules, or multiple sensors running at the same time.

Typical symptoms include random resets where the Arduino restarts unexpectedly, unstable sensor readings that fluctuate without reason, and WiFi modules disconnecting during data transmission. You may also notice motor startup voltage dips where the board resets as soon as a motor begins spinning. In some cases, the voltage regulator can overheat if it is forced to drop too much voltage from an inefficient battery pack.

Another common issue is battery pack imbalance, especially in multi-cell configurations where cells age differently or are not charged properly. This leads to uneven voltage distribution and unpredictable performance. Using the wrong charger can also shorten battery life or cause incomplete charging, which reduces available capacity and increases instability during operation.

In advanced Arduino systems, these issues often appear as intermittent failures that are difficult to debug. The key to avoiding them is to treat the battery as part of the system design rather than a simple power source. Matching the correct chemistry, cell count, and load behavior is essential for stable long-term performance in any embedded project.

Best Arduino Project Types for NiMH Batteries

When you choose NiMH batteries for Arduino projects, it is important to match the battery type with the real use case instead of treating all projects the same. NiMH works best in stable, moderate-power scenarios where safety, reusability, and predictable voltage behavior are more important than extreme energy density. In educational environments, sensor systems, and simple embedded builds, NiMH is often one of the most practical and reliable choices.

For classroom Arduino kits, NiMH batteries are ideal because students can safely reuse and recharge them repeatedly without complex battery management systems. For remote sensors, low self-discharge NiMH cells help maintain stable operation over long periods with minimal maintenance. In data loggers, consistent voltage output is more important than peak capacity, making NiMH a reliable option for continuous measurement tasks.

In simple robot projects, NiMH packs can deliver enough current for motors when properly configured with the right number of cells. For wireless controllers, stability matters more than raw energy density, and NiMH provides predictable performance under moderate load. In LED projects, voltage stability ensures consistent brightness without flickering caused by voltage drops. For low-power IoT nodes, NiMH can be used effectively when sleep modes and duty cycling are properly designed.

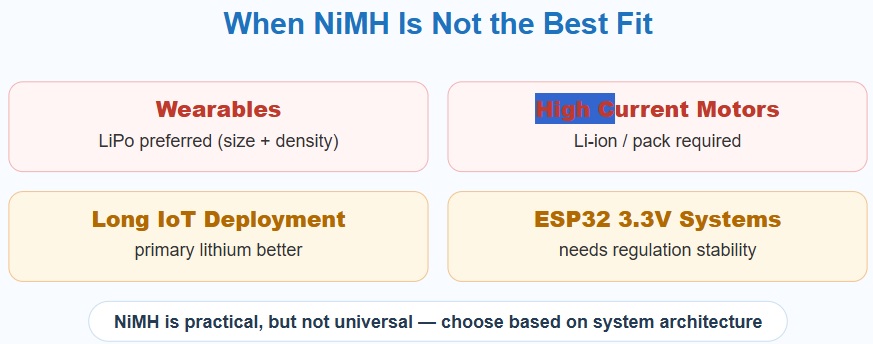

When NiMH Is Not the Best Choice

Although NiMH batteries for Arduino are widely used, they are not the perfect solution for every type of project. In some cases, other battery chemistries are more suitable depending on size constraints, current demand, voltage requirements, and long-term deployment conditions. Choosing the right chemistry is just as important as choosing the correct circuit design.

For ultra-compact wearable devices, LiPo batteries are often better because they provide high energy density in a very small form factor. For high-current motor systems, Li-ion or dedicated battery packs may be required to handle large current spikes without voltage drop. In long unattended IoT deployments, primary lithium batteries can sometimes be a better choice due to their very low self-discharge and long shelf life.

In systems using ESP32 or strict 3.3V designs, voltage regulation becomes critical, and NiMH packs must be carefully managed through step-down or regulation circuits to avoid instability. In these scenarios, battery selection must be driven by system architecture rather than convenience or availability.

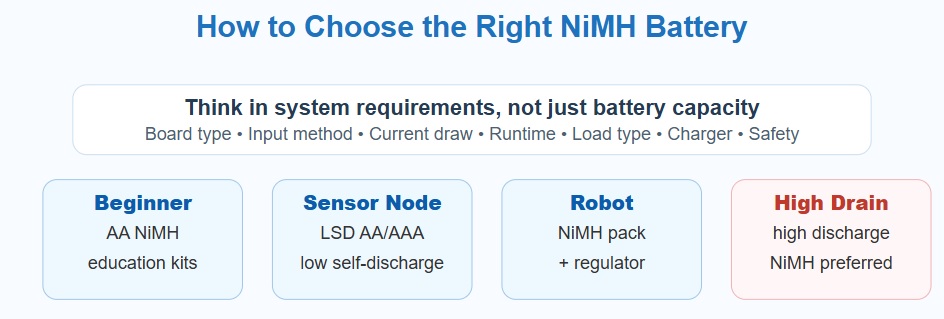

How to Choose the Right NiMH Battery for Arduino

Selecting the right NiMH battery for Arduino projects is not just about picking a capacity value. You should evaluate multiple system factors together to ensure stable performance. The most important considerations include the board type, input method, current draw, expected runtime, load characteristics, charger quality, and overall safety requirements. Each of these factors directly affects how well your Arduino system performs in real-world conditions.

For beginner or educational projects, standard AA NiMH batteries are usually the best choice due to their safety and simplicity. For portable sensor systems, low self-discharge (LSD) AA or AAA NiMH cells are recommended because they hold charge longer during idle periods. For robot projects, NiMH battery packs combined with proper voltage regulation provide better current stability for motors. For high-drain applications, high-capacity or high-discharge-rate NiMH cells are preferred to maintain voltage stability under load.

Ultimately, the best approach is to treat battery selection as part of your system design, not an afterthought. Matching the right chemistry and configuration ensures that your Arduino project runs reliably, avoids resets, and performs consistently across different operating conditions.
