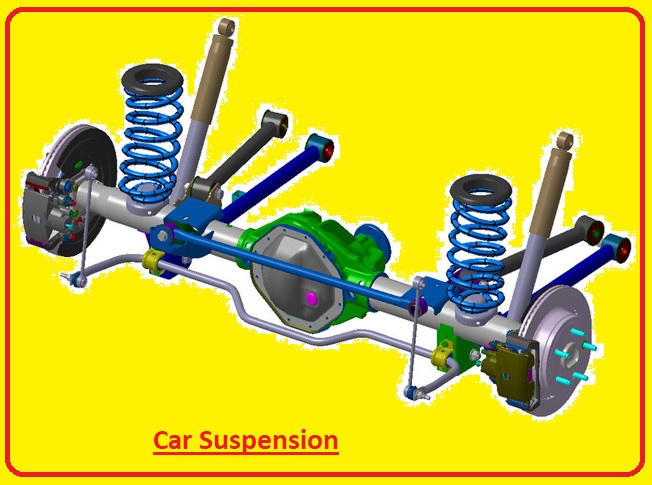

Car Suspension Parts: Types, Working and Features

The car suspension is the main part of the vehicle. This component provides smooth and safe driving, especially for high speed and rough areas. The suspension system comprises numerous parts and components, each serving a specific function to ensure safe driving. This post will cover details for car suspension and its different components. So let’s get started with an introduction to what suspension is in a car.

What Is Suspension in a Car??

• Suspension in the car is a combination of tires, tire air, shock absorbers, springs, and linkages that make the connection of the car with the wheels and provide relative motion between them.

• • The suspension system has compatibility with road holding and riding quality, which are different from each other.
• The suspension turning comes with an accurate composition. The suspension is important for maintaining the connection between the road wheel and the surface of the road, since forces are applied on the vehicle through the road, which are transmitted through the contact patches of the tires.
• Suspension also protects the vehicle and cargo from any damage. The design of the front and rear suspension of the car is different.
• The main parts of suspension are springs and shocks. Springs provide control for the height and load of the suspension and cabin.
• While shocks, also called dampers, absorb and dampen different kinetic energy forces transmitted through tires when connected with the road.

How Does a Car Suspension Work?

• The main function of a car suspension is to increase friction between the tires and the road. That is important for car uniform movement, with it also providing good steering features and handling from the driver.
• As we know, our roads do not have smooth surfaces, so the suspension system has features to handle rough surfaces and hurdles on the road and provide uniform movement for the car.
• For providing stability to the car structure and the body to absorb energy from the tires.
• Car rigging features help to smoothly move on the road that has bumps, and car handling features help to make easy acceleration and applying brakes.
• Some parameters are the main part of the suspension that need to be known for proper understanding of the suspension system, which are

Road isolation

• This factor defines how it is to travel on bumpy and rough roads.

Road holding

• It is the features that help the tire to keep connection with the ground since it helps to move the handle car, apply brakes, and move safely.

Cornering

• It is defined as features of a vehicle to travel a curved path for reducing body roll.

Some other features of a suspension car are as follows.

• Vibration damper
• • Distribution of the car’s weight;
• provide good braking effect;
• Improve overall driving experience, promoting comfort.
• Increases handling and steering response
• Adaptation to road conditions

Parts of a Suspension System

Springs

• The currently used car suspension system uses a steel coil spring for each wheel. If you notice the older car or any pickup truck that comes with a narrow stripe of metals stacked on another in place of springs. That’s called leaf springs.
• Another spring is called a torsion bar, but not like a spring. It is a metallic piece connected with the arm at one endpoint and the other is with the suspension at the wheel end.
• If a car moving on bumps in the suspension moves, the resulting bar twists and absorbs energy. It contains all centripetal forces that work on the body of the car in the corner and make it lean, which is known as the anti-roll bar.

Shock absorbers

• The spring provides good compression features and absorbs energy but is not good for releasing, especially for rebound in an uncontrolled way. In the car, an uncontrolled process affects riding and handling.
• For this process, a shock absorber was used, which is also called a damper. It is a thick, stubby bicycle pump. Based on the suspension type, a damper exists close to the coil spring, which is called a strut.
• The main feature of the damper is to release the spring energy in a controlled way. Mostly have two parts; the upper part is called the outer tube that is connected with the car frame and comes with the piston.
• The lower half, called the reserve tube, is bolted to the axle that carries the suspension system. It comes with hydraulic fluid.
• When a car moves on a rough or bumpy road, the axle rises and compresses the spring and forces the piston to move downward into the fluid. As a result of this motion, fluid moves upward and through a small hole in position.

Independent suspension

• The car that has independent suspension on every wheel, especially the front wheels, connected separately with the car body, helps to move independently. That shows how different forces are working on the car.
• The non-independent system exists in trucks and vans, and the suspension system is connected through an axle fitted with a leaf spring and damper at each end.
• Forces that work on one side of vehicles also affect the other side. It is cured but a low-cost option.

Double-wishbone suspension

• Double wishbone suspension is the bedrock of the independent system and comes with two pressed steel or aluminum arms for one wheel, one over the other, and extended from the wheel hub to the frame of the car.
• The damper in the coil spring is connected with the lower wishbone, and its other end lies on the car body. It is a chance to come with the system on the 4 corners of the car.

Air suspension

• Luxury cars and SUVs come with air suspension; this system uses air springs instead of conventional steel coil springs. Every air spring move-up or down system removes or adds air for painting comfort and reduces body leans to corners.
• It is regulated with the use of microprocessors that make air springs work individually or with each other and provide a self-leveling system that also increases air over rough ground. With that system, it can lower cars to provide stability and reduce fuel use.

Adaptive damping

• From tubes of oils that react with the motion of a car spring, dampers are now an important component that can control effectively. Such as magnetic dampers, they are filled with ferrous fluid.
• The current flow through the fluid can change its viscosity or thickness, which is according to the force applied to the damper. Some systems use a solenoid for controlling the flow of fluid in a damper.

When Does a Car’s Suspension Need to Be Checked?

• Do regular checkups of your car suspension, especially if you are facing uneven tire wear, poor handling, high bouncing, or unusual noise at the time of driving.

How to tell if the car has suspension problems?

There are some signs that indicate suspension has issues.

• Pulling to one side when driving
• Bumpy rides
• One corner lies lower than others.
• Diving, rolling, or squatting
• Oily shock absorbers.
• Steering not moving easily

Why Is a Suspension Service Important?

Regular suspension service provides good vehicle handling and safe driving. It also works for the life of tires, provides good alignment, increases fuel efficiency, and avoids any serious issues for the car.

FAQs

What is the working function of suspension in a car?

• The main function of a car suspension is to increase friction between the tires and road surface for providing steering features with good handling and for an easy environment for passengers.

What are the main parts of a car suspension?

• The car suspension is basically part of the chassis, which comes with all main components that lie below the car structure. That system comes with a frame, a structural, load-carrying component that is compatible with the engine and the body, and a controlled suspension.
• The suspension system provides control weight, absorption, dampens shock, and makes a strong connection for tires.
• It also has a steering system with tires and wheels.

What is the working life of suspensions?

• Suspension of the car is needed to prepare or replace some components after 50,000 miles, like shocks and struts.
