Hello readers welcome to a new post in this post we will discuss What is Capacitive Transducer. Modern technology relies on capacitive transducers to transform physical quantities like pressure or movement into electrical information. Different sectors, from the automotive and aerospace to medical and consumer electronics, use these transducers extensively. The design, functioning, benefits, limitations, and uses of capacitive transducers will explain in this post. Let’s Get started with Capacitive Transducer
Introduction to Capacitive Transducer
Capacitive transducers, also called capacitive sensors, are electronic devices made to measure variations in capacitance resulting from changes in physical quantities like displacement, pressure, or humidity. They are mostly used in systems that need accurate and reliable measurements, making them a main part of different industries.
Principle of Operation
At the heart of a capacitive transducer based on the principle of capacitance variation according to the physical parameter being measured. When an outer force, like pressure or displacement, is applied to the transducer, the distance between its conductive plates varies, altering the capacitance. This variation in capacitance is directly proportional to the physical quantity measured, making the basis for the transducer’s operation.
Construction of Capacitive Transducers

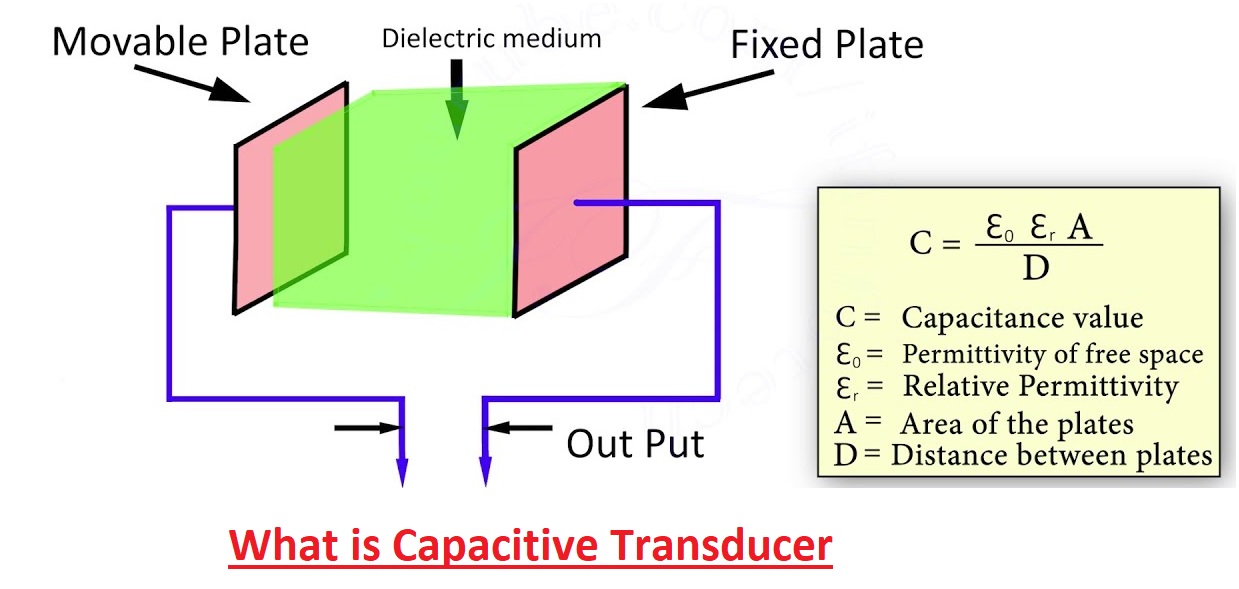

Capacitive transducers have two conductive plates separated by a dielectric material. The conductive plates work as electrodes, and the dielectric material functions as an insulator between electrodes. The shape, size, and configuration of the plates can changes based on certain application needs. Different types of capacitive transducers exist, such as cylindrical parallel plate, , and diaphragm-based transducers
Capacitive Transducer Working Principle
The basic working principle of a capacitive transducer is that the capacitance of a capacitor is inversely proportional to the distance between plates and directly proportional to the area of the plates. The dielectric constant of the medium between the plates also has effects on capacitance but less
In this module, one of the plates is fixed and the other plate can move. The moving plate is attached to an object whose displacement value has to find. When an object moves, the distance between the plates varies, which varies the capacitance of the capacitor.
The variation in capacitance is measured through the electronic circuit and transformed into an electrical signal. This electrical signal can then be used to employ the measured quantity on a meter or to control a system.
capacitive transducers have two main types first one is contacting and the second one is non-contacting. Contacting capacitive transducers come with a movable plate in contact with the object whose displacement is to be calculated. Non-contacting capacitive transducers do not have any physical connection with the object whose displacement has to find
Contacting capacitive transducers have high accuracy than non-contacting capacitive transducers, but they can also be susceptible to noise and damage. Non-contacting capacitive transducers have less accuracy than contacting capacitive transducers, but they are also fewer faces noise and damage
Equation of Capacitance
C = (ϵ * A) / d
- This equation has
- The capacitor’s capacitance, denoted by the letter C, is measured in Farads (F).
- The permittivity of the dielectric medium between the plates is represented by the symbol (epsilon). The quantity describing how well a dielectric can hold an electric charge depends on the substance.
- The area of the capacitor’s plates, A, is equivalent. Square meters (m2) are used to measure it.
- The letter d stands for the space between the plates. Meters (m) are used to measure it.
The capacitance between two plates can be changed through these process
- Distance between the plates (d): The capacitance of a capacitor is in inverse relation to the distance between the plates. So, if the distance between the plates is reduced, the capacitance will increment. This is the basic method to vary the capacitance of a capacitive transducer.
- The permittivity of dielectric medium (ϵ): The permittivity of a dielectric medium is explained that how the electrical field can be configured in the medium. A higher permittivity defines that a capacitor will have high capacitance in a given medium.
- Area of overlapping of plates (A): The capacitance of a capacitor has a direct relation with the area of the plates. So, if the area of the plates is increased, the capacitance will reduce. This is not the main technique used to vary the capacitance, but it can be done in some conditions
Types of Capacitive Transducers
- Parallel plate transducers: These transducers comprise 2 parallel plates separated by a dielectric material. The capacitance of the capacitor varies with the distance between the plates changes, which can be used to calculate displacement, level, or other parameters
- Cylindrical capacitor transducers: This type has two concentric cylinders parted with a dielectric material. The capacitance of the capacitor varies as the distance between the cylinders varies, which can be employed to find torque, pressure, or other variables.
- Semicircular parallel plate transducers: This module has two semicircular plates that are separated with the use of dielectric material. The capacitance of the capacitor varies when the angle between plates varies
- Change in dielectric between parallel plates: This transducer uses a variable dielectric material to calculate the capacitance of a capacitor. The dielectric material can be varied by moving a piston or other mechanism, which can be used to calculate pressure, force, etc
What is Capacitive Pressure Transducer
A capacitive pressure transducer is a pressure sensor type that is used to measure pressure by detecting changes in capacitance. It comes with two capacitor plates, a diaphragm, and an electrode that unpressurized surface. The diaphragm is located between the 2 capacitor plates and is exposed to the pressurized medium. When pressure is given to the diaphragm, it shows movement, which varies the distance between the capacitor plates and in a result, capacitance varies. These variations in capacitance are transformed into an electrical signal, which can be used to calculate the pressure.
Capacitive pressure transducers come to win different structure types, like absolute, gauge, and differential pressure sensors. They are employed in different applications, like medical devices, industrial automation, and environmental monitoring.
Advantages of Capacitive Transducers
Capacitive transducers have different advantages that make them best for a wide range of applications. Firstly, they have high accuracy and precision, making sure the reliable measurements. Additionally, these transducers exhibit good linearity, help easy calibration, and accurate scaling of the measured parameter. They also have a wide dynamic range and can find both static and dynamic pressures. Though, capacitive transducers are compact and less weight, making them good for integration into many systems.
Disadvantages of Capacitive Transducers
With advantages, it also has some limitations. One main drawback is their sensitivity to environmental factors like temperature and humidity. Variations in these parameters can affect the dielectric material, causing inaccuracies in measurements. Also, capacitive transducers can need careful protection and grounding to reduce the effect of electromagnetic interference on their performance.
Applications of Capacitive Transducers
Capacitive transducer is used for differnt applications that are explained here
- Automotive Industry: it is used in tire pressure monitoring systems to measure and monitor the air pressure in vehicle tires. They also used fuel level sensors, enabling accurate measurement and monitoring of the fuel level in tanks. They also employed engine control systems for monitoring air intake and exhaust gases.
- Aerospace Industry: In the aerospace industry, capacitive transducers are used in altimeters to find the altitude of aircraft accurately. They are also part of accelerometers for measuring acceleration and vibration levels. They have importance for structural health monitoring systems, where they detect and measure strain and deformation in aircraft components.
- Medical Field: They are also used in medical applications. They are used in blood pressure monitoring modules to calculate and monitor blood pressure levels. It also finds application in flow rate measurements, like in intravenous drip systems. Tactile sensors configured on capacitive transducers are used in surgical instruments to offer surgeons haptic feedback during the minimally invasive process.
- Consumer Electronics: They are an integral part of modern consumer electronics. They are widely used in enabling precise touchscreens, and responsive touch input. Capacitive proximity sensors are used in devices like mobile phones and tablets for detecting the presence of a finger or object near the screen.
- Industrial Automation: it plays a significant role in industrial automation processes. They are used in level-sensing applications for calculating and controlling the levels of liquids and granular materials in tanks and hoppers. They are part of proximity sensing applications, where they detect the existence or absence of objects without physical contact.
Conclusion
The measurement and conversion of physical properties into electrical signals have been revolutionized by capacitive transducers. They have become significant in a variety of sectors thanks to their capacity to deliver accurate and trustworthy measurements. Despite different drawbacks, their benefits, which are great precision, a broad dynamic range, and small size, outweigh those drawbacks. Capacitive transducers are anticipated to keep playing a significant role in determining the future of measuring systems as technology develops.
What is the working principle of a capacitive transducer?
The working principle of a capacitive transducer is based on the changes in capacitance with respect to the variation in the physical quantity being measured. It uses a capacitor whose capacitance has a direct relation with the physical parameter under measurement. When the physical quantity varies, it results in a change in the spacing between the capacitor plates or the dielectric constant, so changes the capacitance.
A capacitive transducer is an active transducer since it needs an external power supply to operate. The power source is required to create an electric field or charge the capacitor.
Is a capacitive transducer active or passive?
A capacitive transducer is a passive transducer. That means that it does not produce its own energy, but instead based on an external power supply to operate. The external source is used to produce an electric field between the 2 plates of the capacitor. When the physical quantity to be calculated is applied, the distance between the plates varies, which in turn varies the capacitance of the capacitor. This change in capacitance is then transformed into an electrical signal by an amplifier or other electronic circuit.
What are the three types of capacitive transducers?
- Parallel plate capacitive transducers are the commonly used type. They are made of two parallel metal plates spaced apart by a dielectric substance. The area of the plates and their distance from one another define the capacitance of the capacitor in a direct and inverse relationship, respectively. The distance between the plates changes when the physical quantity to be measured is applied, which in turn alters the capacitance of the capacitor. The electrical signal from this variation in capacitance can subsequently be measured or displayed.
- Cylindrical capacitive transducers are like parallel plate transducers, but the plates are cylindrical. This transducer is frequently employed to measure substantial displacements, such as those brought on by force or pressure.
- Semi-circular capacitive transducers are used for measuring the angular displacement. They are created with two semi-circular plates that are spaced apart by a dielectric. When the plates are completely overlapping, the capacitor’s capacitance is at its highest level. As the plates separate, the capacitance decreases. The electrical signal from this variation in capacitance can subsequently be measured or displayed.
What is a capacitance transducer used to measure?
A capacitance transducer is a type of transducer that converts variations in capacitance into physical variables like displacement, pressure, and force. It is created with two parallel metal plates that are spaced apart by a dielectric substance. The area of the plates and their distance from one another determine the capacitance of the capacitor in a direct and inverse relationship. The distance between the plates changes when the physical amount to be measured is applied, so it alters the capacitance of the capacitor. The electrical signal from this change in capacitance can subsequently be measured or displayed.
Where are capacitive transducers used?
- Automotive: Automotive applications include fuel injection systems, cruise control systems, and airbags all make use of capacitive transducers.
- Aerospace: Aerospace applications including airplane control systems and engine monitoring systems employ capacitive transducers.
- Industrial: Industrial applications including level measurement, pressure measurement, and force measurement all employ capacitive transducers.
- Medical: Applications for capacitive transducers in medicine include ultrasound imaging, respiration monitoring, and blood pressure measuring.
- Consumer electronics: Consumer electronics products including touch screens, microphones, and motion sensors employ capacitive transducers.
What is a Capacitive and Inductive Transducer?
Transducers are devices that change a physical quantity into an electrical signal, and they include capacitive and inductive transducers. They are utilised in a vast array of applications, including as force, level, and pressure measurement.
By detecting changes in capacitance between two plates, capacitive transducers operate. The area of the plates and the distance between them both directly affect a capacitor’s capacitance, which is inversely correlated with the latter. The distance between the plates varies when the physical amount to be measured is applied, which in turn affects the capacitance. An electrical signal is then created from this change in capacitance.
By detecting the difference in inductance between two coils, inductive transducers operate. The square of the distance between coils has an inverse relationship with the inductance of the coil, which is exactly proportional to the number of turns in the coil. The distance between the coils varies when the physical amount to be measured is applied, which in turn affects the inductance. An electrical signal is then created from this change in inductance.
Read also: What is Double Pole Double Throw (DPDT) Switch
What is difference between inductive and capacitive?
| Feature | Inductive Transducer | Capacitive Transducer |
|---|---|---|
| Principle of operation | Measures the change in inductance between two coils. | Measures the change in capacitance between two plates. |
| Accuracy and sensitivity | Lower accuracy and sensitivity than capacitive transducers. | High accuracy and sensitivity. |
| Measurement range | Narrow measurement range. | Wide measurement range. |
| Contact measurement | Requires contact with the object being measured. | Can be non-contact or contact. |
| Lifespan | Shorter lifespan. | Longer lifespan. |
| Cost | Lower cost. | Higher cost. |
| Applications | Proximity sensing, motion detection, speed measurement. | Level measurement, pressure measurement, force measurement. |
What is the major advantage of capacitive transducer?
- High accuracy and sensitivity: Capacitive transducers are perfect for sensing minute or subtle changes because of their high accuracy and sensitivity.
- Wide measurement range: From minor displacements to significant forces, capacitive transducers may be utilized to assess a wide range of physical parameters.
- Non-contact measurement: The ability to measure items without touching them makes non-contact capacitive transducers crucial in situations where contamination or damage is a problem.
- Ruggedness: The majority of the time, capacitive transducers are robust and resistant to hostile situations.
- Long life: Typically, capacitive transducers have a long lifespan.
What are the three applications of capacitive transducers?
- Level measurement: In tanks or containers, the level of liquids or solids can be determined using capacitive transducers. The capacitance between the plates is measured by placing the transducer inside the tank or vessel. As the liquid or solid’s level changes, the capacitance will fluctuate as well.
- Pressure measurement: The pressure of fluids or gases may be measured using capacitive transducers. The capacitance between the plates is measured by submerging the transducer in the liquid or gas. As the fluid or gas pressure varies, the capacitance will also change.
- Force measurement: It is possible to measure the force applied by things like weights or pistons using capacitive transducers. The capacitance between the plates is measured with the transducer in contact with the item. As the object’s force varies, so too does the capacitance.
Q: How accurate are capacitive transducers?
A: Capacitive transducers can offer high accuracy, with measurements often getting a resolution in the range of microstrain or microstrain equivalent.
Q: Can capacitive transducers measure both static and dynamic pressures?
A: Yes, they are capable of measuring both static and dynamic pressures, making them good for applications where fast changes in pressure need to be monitored.
Q: Are capacitive transducers sensitive to temperature variations?
A: Yes, it can be sensitive to temperature variations. Variations in temperature can affect the dielectric material, causes inaccuracies in measurements. Proper compensation methods can be needed to minimize this effect.
Q: Can capacitive transducers be used in harsh environments?
A: it is designed to withstand harsh conditions by using accurate materials and protective coatings. However, certain application needs must be considered, and environmental factors should be accounted for in the design.
Q: Are there any safety considerations when using capacitive transducers?
A: Safety considerations based on certain applications. In certain conditions, precautions can be necessary to avoid electrical shock or damage to the transducer due to excessive pressure or force.
