The battery connection affects the working life of batteries and the power provided by them. But if there are many batteries needed for any project can be a difficult process. Here we will learn the process for connection of batteries in parallel and series combination. Battery is considered as the main component of our electronic projects and circuits for delivering power to different components. So let’s get started with Batteries In Series Vs. Parallel
Introduction
Batteries are configured in different configurations based on certain demands of circuits or devices where they are used.
They can configured for series or parallel combinations. Battery connection has an effect on voltage and current in the circuit.

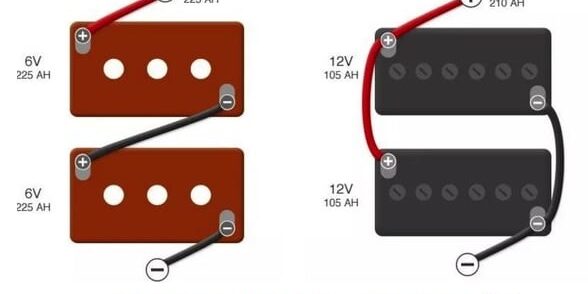

Batteries in Series
The series combination of batteries is end to end, so positive terminals on the battery are configured with the negative terminals of the other battery. The voltage of the battery is added so if two 12-volt batteries are configured in a series combination net voltage will be 24 volts. But the current will be the same as one battery.
For solar energy systems, the connection is made until all batteries in the system are connected. The remaining positive and negative terminals of the battery are used as positive and negative output pins.
Batteries in Parallel
IN a parallel combination of batteries positive terminals of all batteries are connected and the negative terminals are connected. The net voltage of the battery is the same but the current is added with each other. If two batteries having a current value of 2 amp are connected in parallel net current will be four ampers.
Batteries in Series: Advantages
- Series connection of batteries increases the overall voltage of the circuit used for powering devices that need high voltage.
- The load distributing load over batteries and minimizing battery stress, connection in series can enhance system efficiency.
- The series connection also increases system features to enhance energy-storing capability.It can be best for conditions where power for a longer duration like in remote areas.
- The series combination comes with a simple wiring process, so wires cost less than parallel connections.
Disadvantages:Â
- If any battery in a series combination is weak it gets overcharged or undercharged reducing working life and having a bad effect on system operation.
- There is need of some components for charge and discharge balancing like an equalizer used.
- The series combination reduces the working life of the battery. Since batteries do not discharge equally that casues discharge fast and results in premature damage of batteries.
- If a single battery not working will affect the completing working of the system.
- This connection required more wiring and components that make the system complex. So installation is difficult
Batteries in Parallel: Advantages
- Parallel combination increases the output power of the system and is best to use where high power is needed.
- if anyone’s battery not working not affect the other batteries in the system. It reduces the chance of system damage
- There is same voltage for parallel combination which reduces the chances of overcharging or undercharging of battery
Disadvantages:Â
- Battery connection in parallel does not increase the energy storage features of systems like series combinations.
- If the battery is connected in parallel system efficiency reduces due to the different voltage and current output of single batteries
- The parallel combination is costly since it needs more wiring and components.
- If one battery in parallel combination gets overheated causes the other to get heated and affect the system

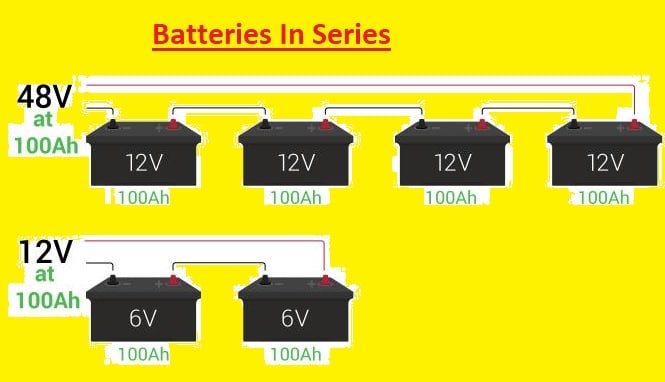

How to Connect Batteries in Series
Series connection of battery increases voltage, but not increases current. Two batteries connected in series means their positive and negative terminals are connected.
Before the connection of batteries in a series check that both have the same voltage and capacity rating.
- Make a connection between one battery’s negative and another positive terminal with each other.
- Continue this process until all batteries are in connection.
- Now first battery’s positive terminal is connected with the positive of the circuit and connect negative of the last battery is with the circuit’s negative
How to Connect Batteries in Parallel
- Parallel combination can increase battery bank capacity and total voltage remains constant. In simple words, two 12-volt 30Ah batteries in parallel combination will provide a total of 60 amp hours. The voltage is 12 volts.
- For connection connect the terminals of each battery with the negative of the other battery. positive with the positive terminal
- Make the connection of the positive terminal of the last battery with the positive of the circuit and the negative with the negative.
How Many Batteries Can Wire In a Series?
- the battery numbers are based on battery types and brands such as lithium batteries 4 can connected in series combinations to make a 48-volt system. Also, check battery manufacturers to make sure not cross the suggested limit for batteries in the series
How Many Batteries Can Wire In Parallel?
- There is no limit for battery connection in parallel combination. More batteries in parallel circuits with more capacity and longer working time will come. Note that more batteries in parallel longer time will be taken for charging. With larger parallel battery banks will have high current features.
Charging Batteries in Series Vs. Parallel
- if there is an accurate voltage charger, the battery for series or parallel is charged in the same way. For series connection, connect the positive charger pin with the positive of the first battery in the series and the negative charge cable with the negative to the last battery for the series.
- For charge about parallel bank connect charge in the same way, as positive connected with first battery and negative with last battery
What happens if batteries are not accurately connected?
- Improper connection of batteries resulted in different problems such as bad performance and efficiency also affected.
- One or more batteries can discharge faulty as compared to others if not connected inaccurately connection, affecting battery working life
- Batteries can overheat due to improper connection causing inner damage and affecting the working life of the battery.
- There can be short circuits that can affect batteries and circuits connected.
- Voltage losses also occur for improper connection and losses to the efficiency battery system.
- For circuits where high current or voltage is involved chances of electric shock or battery explosion
Can you connect two different amp-hour batteries in parallel?
- Parallel connection 2 batteries with different amp hours can casues uneven distribution of current and voltage for batteries since they come with different inner resistances. As a result, larger batteries discharge slowly, and low capacity discharges faster.
- Different problems like less capacity, short battery life, and safety issues can cause.
- For different batteries in parallel connection, it is important to consider battery features. Follow the balancing and monitoring system to ensure that batteries are matching voltage, capacity, and inner resistance.
- Try to use batteries of the same age, brand, and type.
Why do batteries in parallel increase capacity?
- If two same batteries are connected in parallel combination all positive terminals are connected. Every cell comes with a negative terminal that is connected with the negative terminals of another cell.
- The large number of electrons flowing from positive terminals increases the capacity in parallel connections.
Why do batteries in series increase the voltage?
When added 2 batteries in a series combination voltages are added because to same charge is moved double through the same voltage and the total work done is 2V but the current is the same
How does the 4S2P configuration of batteries work?
- 4S2P configuration of batteries defines the battery pack comes with four batteries connected in series and 2 in parallel combination. S is series and P is parallel. It is called a series-parallel or “4S2P” configuration.
- Now 4S2P battery pack comes with the main component of the power supply in different battery devices
Which of Battery connections last longer, a series or parallel?
- battery capacity increases for parallel combination and provides a longer time working, The Battery for the series does not have high capacity. but can charge after using stored energy.
- The connection configuration working life is based on energy stored. If the battery is made and connected in parallel combination store charge for a longer time
 Batteries in parallel vs series is safer?
- Batteries can connect in both connection configurations but follow safety measures to avoid short circuits. It is safe to connect more thatn two batteries for a parallel Vs series combination. But the connected battery must be of the same manufacturer and have the same capacity so they do not overheat.
Read also:
- What is a 1.5 volt battery, Pins, Equivalent & Application
- l1154f vs LR44: Top Picks for LR44 Battery Equivalents
- CR1220 Battery Equivalent, Features, Specification, Chat and Application
- What are a76 battery equivalent, Features, uses and advantages
- What Battery is Equivalent to sr920sw
- CR1/3N Battery Equivalent To Replace: 1/3N vs 357 vs 2L76 |Detailed Guide
Faqs
- Parallel wiring is commonly used since it is easy as compared to series wiring and not need loop cables back to the amplifier. This wiring structure reduces impedance and the speaker uses more power from the amplifier and makes it louder.
- Battery parallel connection increases duration when battery provdies power to instruments, due to high amp hour capacity can take a longer time for charging than a series connection. This time can be minimized without affecting the battery through fast charging.
- Battery connection in series increases voltage but does not increase overall amp hour capacity. Batteries in the series bank should come with the same amp-hour rating.
