Hello, friends, I hope all of you are enjoying your life. In today’s tutorial, we will have a look at Aluminum PCB. The word PCB is the abbreviation of the printed circuit board this circuitry now used in almost each and every electronic device and engineering project. From your calculator to GPS (Global Positioning System) all consists of a printed circuit board.

With the construction, there are numerous types of PCB such as single sided PCB, double Sided, Multilayer PCB, Flex PCB, Rigid PCB, and Rigid Flex PCB. In today’s post, we will have a look at another category of PCB called Aluminum PCB. Here we will learn how to get  Aluminum PCB Assembly in 2$.

What is Aluminum PCB

• Aluminum PCB is constructed by aluminum and has a high heat dissipation factor so it is mostly used in lighting products like light-emitting diodes.
• This module has 2 sides on the first side that is white in color is have numerous light-emitting diodes and the other side aluminum is used.

• There are normally single-sided aluminum printed circuit boards comprises 3 different layers first one copper foil, the second one is an insulated sheet and the third one is metal.
• But if there are a double-sided circuit board then it has a circuitry layer, insulating layer, aluminum-based layer, circuitry layer.
• But very rarely multilayer circuit board is used that is constructed by the normal multiple layer board having insulated layers and aluminum-based material.
• In past aluminum-based substrate was constructed by fiberglass but due to its low heat bearable capability it was replaced with aluminum but in some other applications, a substrate is still constructed with fiberglass.
• If we compare FR-4 (flame retardant) with the aluminum base material then aluminum decreases the thermal resistance value
• In heat transfer applications, to fulfill the needs of the manufacturing process, occasionally by decreasing the thermal resistance for the increment of heat transfer, and sometimes there is an increment in the value of thermal resistance to overturning heat transfer, the aluminum substrate has outstanding thermal conductivity, if we do its comparison with thick-film ceramic circuitry, its mechanical features are very outstanding.

• There are normally single-sided aluminum printed circuit boards comprise 3 different layers first one is copper foil, the second one is an insulated sheet and the third one is metal.
• But if there are a double-sided circuit board then it has a circuitry layer, insulating layer, aluminum-based layer, circuitry layer.
• But very rarely multilayer circuit board is used that is constructed by the normal multiple layer board having insulated layers and aluminum-based material.
• In the past aluminum-based substrate was constructed by fiberglass but due to its low heat bearable capability it was replaced with aluminum but in some other applications, a substrate is still constructed with fiberglass.
• If we compare FR-4 (flame retardant) with the aluminum base material then aluminum decreases the thermal resistance value
• In heat transfer applications, to fulfill the needs of the manufacturing process, occasionally by decreasing the thermal resistance for the increment of heat transfer, and sometimes there is an increment in the value of thermal resistance to overturning heat transfer, the aluminum substrate has outstanding thermal conductivity, if we do its comparison with thick-film ceramic circuitry, its mechanical features are very outstanding.

Types of Aluminum PCB

• There are many types of this circuitry board according to construction and designing. The main function of all types is alike and used to reduce the high temperature produce in different circuits.

• These are some types of aluminum PCB.
  • Flexible Aluminum PCB
  • Hybrid Aluminum PCB
  • Multilayer Aluminum PCB

How to Get Aluminum PCB Assembly in 2$

• The Aluminum PCB manufactured at the JLCPCB is created with the high quality and less expensive substance used in the creation prototyping of the Aluminum PCB can get from JLCPCB in just 2$.
•  JLCPCB is the best PCB supplier that offers boards with high quality and affordable prices JLCPCB has been at the forefront of the PCB industry. With over 14-year continuous innovation and improvement based on customers’ need, they have been growing fast and becoming a leading global PCB manufacturer, who provides the rapid production of high-reliability and cost-effective PCBs and creates the best customer experience in the industry They create the cheapest but top quality PCBs possibly because of scale effect, extremely high production efficiency, and less manpower cost.
• JLCPCB Founded in 2006, JLCPCB has been at the forefront of the PCB industry. With over 14-year continuous innovation and improvement based on customers’ need, they have been growing fast, and becoming a leading global PCB manufacturer, who provides the rapid production of high-reliability and cost-effective PCBs and creates the best customer experience in the industry.

Practical Products Created with Aluminum PCB Board

• There are numerous practical implementations of the PCB board to get the different types of products and modules. Here we introduce two products that are created with the use of an Aluminum board.

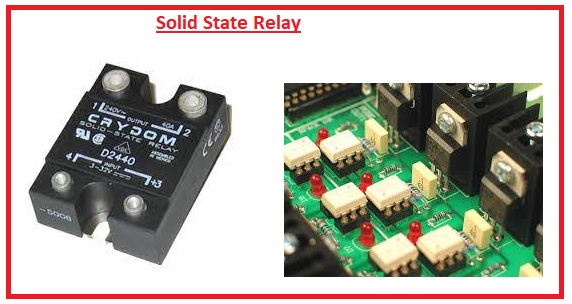

Solid State Relay

• A solid-state relay or SSR is a switching module that operates as a switch to break and connect the circuit and has the ability to work on the both ac and dc supply.
• Its function is like the electromechanical relay with the difference that absence of moveable component and this feature reduces its operating life.
• Its configuration is that can be employed for both ac and dc loads.
• To get retain the values of current about the hundred amperes there is the use of semiconductor components such as transistors and thyristors.

• Its operating speed as compared to the electromechanical relay is fast.
• Due to high reliability and good working states its internal circuitry is created and designed on the aluminum PCB that increases its working state and operating life.

Aluminum PCB Base Light System

• Most commonly found in street lighting, traffic control lighting, interior building lights, landscape lighting, and camping gear as aluminum PCBs are lightweight and can be very small in size.
• There is many products in a lighting system that are designed and created with the use of aluminum PCB very commonly nowadays. Such as street light system is founded on aluminum PCB boards traffic controls circuits are also based on aluminum PCB, landscape lightening system, inner lights modules.
• The feature less weight and small size assembly process encourages the assemblers to apply in these devices

JLCPCB Aluminum PCB Features

• JLCPCB offers the five pieces with dimensions 50mm x 50mm aluminum PCB for just 2$. The board of this PCB supplier does the dissipation in an effective way.



Applications of Aluminum PCB

• Now we describe some practical applications of the aluminum printed circuit board.
• All types of amplifiers circuits used in electronic industries consist of this board like input, output amplifiers, acoustic amplifiers, etc.
• Different power supply modules like switching regulators, analog to digital converters, etc use aluminum PCB for circuit construction.
• Your computer motherboard, floppy disk, also consists of this circuit board.
• Different inverters, relays, rectifiers have also consisted of this circuit board.
• Different types of light-emitting diodes also comprise an aluminum circuit board.
