Alkaline batteries are part of different devices, like clocks, flashlights, remotes, and others. Alkaline battery voltage is a performance and safety factor. Getting its features and related factors helps to understand practical applications. In this post we will cover detailed features of alkaline batteries and related factors, so let’s get started.

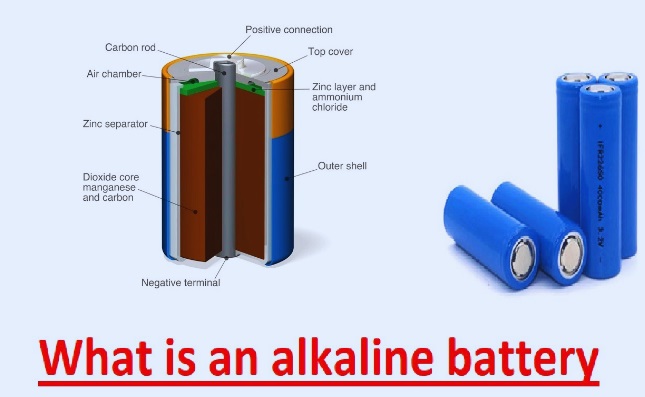

What is an alkaline battery?
- An alkaline battery is a one-time-use battery that is non-rechargeable. It operated with zinc and manganese dioxides on both sides. It comes with alkaline liquid that is potassium hydroxide.
- This battery works longer, provides smooth power, and works better compared to a zinc-carbon battery.
- Voltage is generated with the chemical reaction occurring between the zinc anode and the manganese dioxide cathode.
- In a fresh battery, a chemical reaction occurs quickly and gives a stable voltage. The standard alkaline battery voltage is 1.5 volts in small batteries like AA, AAA, C, and D.
- Button cells, also alkaline batteries, come with different ratings, like 6 V or 9 V, but the commonly used one is 1.5 volts.
- Alkaline batteries come with higher energy density than zinc-carbon batteries and longer working life while providing the same voltage.
- Alkaline batteries come with zinc or manganese dioxide, which is a cumulative neurotoxin and becomes a hazard for high concentrations.
Standard alkaline battery voltage for different battery sizeand volts
| Battery Size | IEC Code | Common Name | Standard Nominal Voltage |
| AAA | LR03 | Triple A | 1.5 V |
| AA | LR6 | Double A | 1.5 V |
| C | LR14 | C Cell | 1.5 V |
| D | LR20 | D Cell | 1.5 V |
| N | LR1 | N Cell | 1.5 V |
| AAAA | LR8D425 | Quadruple A | 1.5 V |
| 9V | 6LR61 | 9-Volt | 9 V |
| 4.5V | 3LR12 | Flat Battery | 4.5 V |

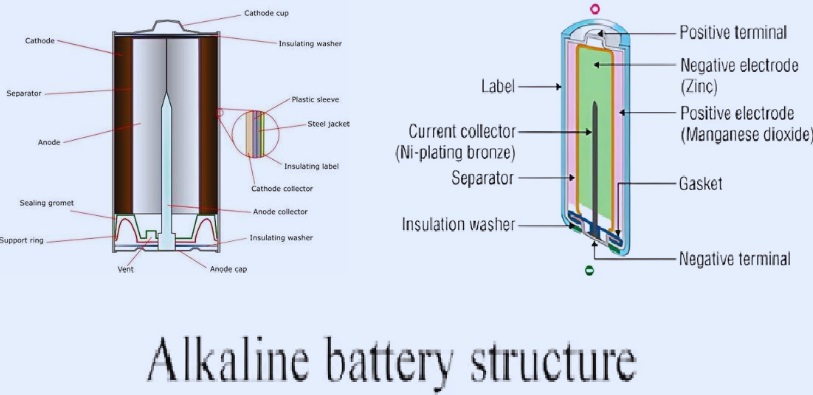

Structure of an alkaline battery
The alkaline battery comes with different components, and each performs certain functions.
- An anode made of zinc metal and a cathode made of manganese metal, with that ion-conducting separator dipped in alkaline electrolyte.
- It has a metallic casing and positive pins and a collector pin that connects with the negative pin. for coin-type collector material applicable in the terminal
- The gasket for the separator negative terminal is from the casing. that is supported with a vent for minimizing pressure generation during malfunction.
Maximum and minimum voltage of an alkaline battery
The maximum alkaline battery voltage is the high power of the battery that is generated in new condition. Peak voltage only occurs when the battery is in new condition.
Maximum alkaline battery voltage:
AA and AAA batteries
- In new condition, the battery voltage is 1.6 volts, and it is a high alkaline battery voltage for a new battery.
C, D batteries
- These batteries are also 1.6 volts in new condition, and peak alkaline battery voltages are like those of AA and AAA.
9V alkaline battery
- New battery volts are 9.6 volts, and it is the highest alkaline battery voltage before degradation.
Minimum voltage of alkaline battery
Minimum voltage is the location where battery power becomes very low for operating devices. In these conditions, the battery is dead, and also has low energy.
AA and AAA batteries
- Its low voltage is 0.9 volts less than this voltage; it does not give power to devices.
9V alkaline battery
- Its low voltage is 6-volt losses; it does not operate devices connected.
C and D batteries
- It comes with a low-voltage value of 0.9 volts; if the value is less than that, it will not operate for high-drain devices.
Features of Alkaline Batteries
Long battery shelf life
- It is a type of battery that comes with a good shelf life and battery life of an alkaline battery for a device getting power. A longer working life shows an alkaline battery has a charge if not applied for a longer time when manufactured.
- It is different from other batteries that are used or charged a minimum of one time per year.
- The average alkaline battery works for about 7 years, also without using, and loses five percent of its energy during this
Safe handling
- Different batteries are dangerous materials and difficult to handle. Lead and acidic batteries come with bad health factors when damaged. While alkaline batteries are not the best to open, since hazardous materials are difficult to get with low chances for leakage. so are safe to handle
High energy density
- Another competitor for alkaline batteries is zinc carbon batteries, but alkaline batteries perform well since they have high energy density. A normal alkaline battery comes with double the energy density compared to the same-size zinc-carbon battery. this high density helps alkaline battery generated similar energy for longer time
Operate at different temperatures
- Another factor is that other batteries do not work well or also work in extreme conditions. Alkaline batteries perform well in hot and cold temperatures without affecting performance.
- So alkaline batteries are the best type of battery for flashlights and other related batteries.
why the voltage of an alkaline battery changes with time
- Alkaline battery voltage varies with time when used. These variations occur according to a certain design that helps to understand battery operation.
losses at the start
- When the battery is used for the first time, voltage losses occur at the high point of 1.6v. It is normal and occurs for some time at the start.
Steady time
- When small losses occur, alkaline battery voltages are steady for the battery’s complete working life. In this phase, it helps to operate devices without faults.
high-speed losses at the end
- If the battery is empty, voltage degrades quickly. It makes devices dim and not turn on.
The battery is no longer useful.
- If voltage is less than the minimum level, like 0.9 to 1 V for AA/AAA and 6 V for a 9 V battery, it will itnot provide stable power.
How to test alkaline battery voltage
For this purpose, a multimeter is used. Using the multimeter, set the meter at DC voltage and make a connection of the red lead with the positive end and the black lead with the negative end.
Check the number shown on the display; if it shows 1.5 V or higher, the battery is good; less than 1.0 V means it needs replacement.
less than 6V for a 9V battery, charge it
Another method for checking voltage is a battery tester, which is used for battery inspection. Connect the alkaline battery in the tester, and the voltage will show, like with the green meaning the battery is good and red meaning it is low.
How to maintain alkaline battery voltage
- For this purpose, store the battery in a cool and dry place.
- Do not mix old and new batteries, since different voltages result in leaking.
- Disconnect batteries when devices are not in use to avoid draining and leaking.
- Make battery terminals dry since dirty terminals reduce voltage.
- New batteries are employed for high-drain devices and set alkaline battery voltage high
- not use high-temperature conditions, since low or high temperatures affect the working of the battery
Alkaline batteries vs lithium batteries
- Alkaline battery voltages are higher, higherthat offers high power for camera flash. Voltage and milliampere-hour capacity are minimized when the battery discharges.
- Lithium is constant until close to fully discharged and is best for devices where constant power is used.
- An alkaline battery’s working life is two to three times higher than lithium battery. The limitation of lithium batteries is that they have a higher price than alkaline batteries, which makes them less beneficial.
- For backup power, alkaline batteries are best. For all batteries, it is self-discharge, not use, but with a two percent per year rate.
- This discharge is less than lithium metal but lower than lithium-ion.
Alkaline batteries vs nickel batteries
- than rechargeable batteries like nickel and alkaline, which are of high weight with different working lives. It is based on the current. For high-drain devices such as digital cameras, the working life of an alkaline battery is shorter.
- In low-drain devices like remote controls, they work longer. Alkaline batteries are also best for devices where standby power is required, like smoke alarms.
- It has a self-discharge of 2 percent per year, less than nickel operating modules, which become flat after one year when not used.
Alkaline Battery Capacity
- Alkaline battery capacity is based on connected load. An AA alkaline battery has a capacity is 3000 mAh with low drain, and with a load of one ampere, which is normally used for digital camera capacity, it is 700 mAh.
- The voltage of the battery slowly reduces when used, with the net using capacity based on the cutoff voltage of devices
Difference between rechargeable batteries and alkaline?
| Feature | Rechargeable Batteries | Alkaline Batteries |
| Types | Nickel-Metal Hydride (NiMH), Lithium-ion (Li-ion) | Alkaline (Zinc-Manganese Dioxide) |
| Rechargeable | Yes, can be recharged hundreds to thousands of times | No, single-use only |
| Initial Cost | High upfront cost | Low upfront cost |
| Long-term Cost | Cheap with time | Expensive over time |
| Voltage (AA/AAA typical) | Usually 1.2V (NiMH) | 1.5V |
| Best For | High-drain devices | Low-drain devices |
| Lifespan | 2–5 years, depending on use | Used once until drained |
| Environmental Impact | eco-friendly | more waste |
| Self-Discharge Rate | Higher (loses charge when not in use) | Lower (long shelf life, 5–10 years) |
| Performance Over Time | Stable voltage until nearly empty | Voltage gradually drops during use |
| Charger Required? | Yes | No |
Can rechargeable batteries be replaced for alkaline?
- The answer is no; we can use a rechargeable battery, such as a lithium battery, for replacement until we ensure the voltage supply and discharge current have the same value.
Frequently Asked Questions
Can alkaline batteries be rechargeable?
- No alkaline battery charging is dangerous. If the condition is not operating well, it causes a safety hazard, and in certain conditions, it is easy to result in safety faults, and the main requirement is a small charging current. This charging technique is not proper, since most chargers have high current.
What happens if we recharge an alkaline battery?
- If recharging of an alkaline battery occurs, so leaking can occur for the internal liquid of the alkaline battery, causing corrosion and safety faults.
What are the advantages and disadvantages of alkaline batteries?
Advantages of alkaline batteries
- Alkaline batteries work longer when discharging. It can be replaced easily.
- An alkaline battery is low cost and reliable since it works for a long time and is also not used for long durations.
- Low temperature increases alkaline battery working life, but not for very low temperatures.
Disadvantages of alkaline batteries
- Alkaline battery, not a rechargeable battery, so it needed replacement. Circulating electrolytes enhance leakage chances and cause environmental pollution.
- The output power of an alkaline battery reduces with the passage of time.
Is it best to use rechargeable batteries or alkaline batteries?
- Rechargeable batteries are best to use since they offer a charging cycle higher than 500 times. Rechargeable batteries are commonly used. For rechargeable batteries, lithium comes with high energy density and a longer working life of about 4000 times.
- It is not affected by the memory effect that minimzes wokring life.
