AAAA Battery equivalent: Features, Types, Dimensions

AAAA batteries are cylindrical in shape and small in size, and they are used in calculators, flashlights, and other small devices. In this post, we will cover details about AAAA battery features and other factors that affect its practical uses. So, let’s get started with what AAAA batteries are.

What Are AAAA Batteries?

AAAA batteries have an alkaline composition and a small, cylinder-shaped battery. This battery is commonly used, and different manufacturers are making this battery, such as Energizer, Duracell, etc.
Each manufacturer has its features and chemistry for AAAA batteries and is used based on features.

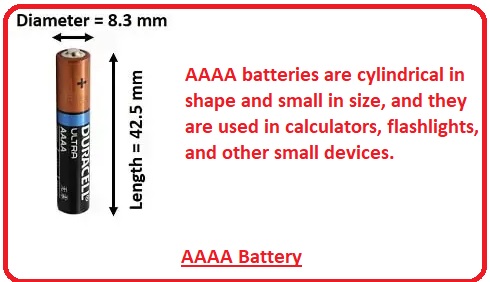

The dimensions of the AAAA battery are 42.5 mm in length and 8.3 mm in diameter. The weight of the battery is about 6.5 grams, and the voltage is 1.5 volts.

If we make a comparison between AA and AAA batteries, we find that they are different in size and capacity.
An AAA battery is small in size has less capacity and is used for small power-using applications.

AAAA battery types

different types of AAAA batteries are shown with their features

	Zinc–carbon	Alkaline	NiCd	NiMH	Li-ion
IEC name	R8D425	LR8D425	KR8D425	HR8D425
ANSI/NEDA name	25D	25A
Typical capacity	300 mAh	500–600 mAh		325–500 mAh	160–170 mAh
Nominal voltage	1.50 V	1.50 V	1.25 V	1.25 V	3.7 V

Technical Specifications AAAA Battery

AAAA Battery Nominal Voltage	1.50 Volts
Capacity	≈ 500-600mAh
Operating Temperature	0°C – 60°C
Diameter	8.3mm
Height	42.5mm
Chemistry	Alkaline

AA vs AAA vs AAAA battery

Type	Length (mm)	Diameter (mm)	Voltage (V)	Capacity (mAh)	Applications
AA	50.5	14.5	1.5	2000-3000	flashlights, toys, Remote controls,
AAA	44.5	10.5	1.5	1000-1200	Remote controls, computer mice, wireless keyboards,
AAAA	$43	$8.30	$2	200-300	penlights, Laser pointers, medical devices

AA Batteries

AA batteries are small in size and part of flashlights, toys, and remote controls. The dimensions of the battery are 50.5 mm, and the diameter is 14.5 mm, and the voltage rating is 1.5 volts. AA batteries come with alkaline and lithium chemistry and also have rechargeable nickel-metal hydride (NiMH).

The basic differences of AA batteries from AAA or AAAA batteries are capacity and size. AA batteries come in larger sizes and capacities and are best for devices where high power is needed and use more current.

AAA Batteries

AAA batteries are smaller compared to AA batteries, with dimensions of 44.5mm in length and a diameter of 10.5mm. It also has a rating of 1.5 volts. The chemistry used in batteries is lithium, alkaline, and rechargeable NiMH.

AAA batteries are part of devices that use low power, like remote controls. wireless keyboards.

As compared to other batteries, AAA has less capacity and a small size and is best for features where low power is needed. But it is higher cost than AA and lower cost as compared to AAAA.

AAAA Batteries

The AAAA battery is small compared to the other two batteries and has dimensions of 42.5 mm in length and 8.3 mm in diameter. The rating of the battery is 1.5 volts and has alkaline and lithium chemistry. AAAA battery used for laser printers, medical devices.

AAAA batteries are small in size and low in capacity and are best for devices that need low power or use low current. It is not easily gotten and has a higher cost than AA and AAA batteries.

chemistry of AAAA batteries

Chemistry	Alkaline	Zinc-Carbon	Nickel-Cadmium	Nickel Metal Hydride	Lithium-Ion
Rechargeable	No	No	Yes	Yes	Yes
Voltage	1.5 V	1.5 V	1.2 V	1.2 V	3.6 V
Capacity	400 – 600 mAh	300 mAh	200-400 mAh	350 – 500 mAh	170 mAh

AAAA Battery Equivalent?

Based on manufacturers and brands, there are different batteries used as equivalents of AAAA batteries.

The commonly used AAAA battery replacements are MN2500, E96, LR8D425, and MX2500. These batteries are commonly used as direct replacements for AAAA batteries.

These equivalent batteries have the same size and dimensions as AAAA batteries but are not used as direct or accurate replacements since they have different chemistry and working features.

AAAA Batteries Applications

Digital Thermometer
Electronic Toys
Smoke Detectors
Medical Devices and Instruments
Calculator
Laser Pen
Flashlight
Security System Panel
Memory Backup
Battery Pack Application

Non-Rechargeable AAAA Batteries

The commonly used non-rechargeable AAAA battery is an alkaline AAAA battery with a nominal voltage of 1.5 volts and a capacity range of 400-600 mAh. The other common uses of non-rechargeable features are

Battery Datasheet	Capacity	Temperature Annual Self-Discharge Rate
Duracell MX2500	300mAh to 500mAh	-20°C to 54°C
Energizer E96	680mAh down	18°C to 55°C
GP AAAA	525mAh	–

Zinc-carbon batteries are low cost compared to alkaline AAA batteries, but they have stable voltage, larger capacity, and longer working life, which is preferred when creating batteries.

Rechargeable AAAA Batteries

Rechargeable AAAA batteries have nickel cadmium (NiCd), lithium-ion batteries, and nickel metal hydride. Nickel Cadmium (NiCd) AAAA batteries are rare for common uses since they have cadmium, which is a toxic and heavy metal.

NiCd batteries have low inner impedance and have features for providing larger current. With that, they also have a larger self-discharge rate and come with a strong memory effect, are compatible with fewer charging and discharging cycles as compared to NiMH batteries, and have a low capacity.

NiCd and NiMH batteries come with 1.2 volts, and some devices that are used for 1.5V zinc carbon or alkaline batteries work well for 1.2-volt NiCd and NiMH batteries.

The real capacity is based on discharge conditions and battery working life, which is less as compared to NiMH batteries.

Nickel Metal Hydride (NiMH) batteries are also compatible with larger charging/discharging cycles as compared to NiCD batteries and do not have a memory effect.

AAAA Battery vs. 4LR61 6V Battery

The 4LR61 battery is six volts with dimensions of 48.5 x 35.6 x 9.18 mm, and its design helps to use it in the battery proper room in a single direction. 4LR61 batteries come with 4 LR61 batteries in a series combination.

The LR61 battery is small compared to the AAAA battery, and in some devices, there is a plastic battery holder that has 4 AAAA (8.3 x 42.5 mm) batteries.

Uses of AAAA Batteries

AAAA batteries are small and thin compared to AA and AAA batteries and are used for different devices.

Non-rechargeable alkaline AAAA batteries are best to use for longer working life and have a stable nature and are best for low-drain uses such as laser pointers, LED penlights, and remote control devices.

Rechargeable lithium AAAA batteries are a low-cost option and best for devices where high energy is needed and are commonly used in medical devices, cameras, and high-end audio devices.

FAQs

What is a AAAA battery also known as?

AAAA batteries are small batteries with a cylindrical shape and are known as LR61 or MN2500 batteries and are used for LED penlights and Bluetooth headsets.

Is the AAAA battery the same as the A23?

The A23 battery is cylinder-shaped and 2/3 the length of a AAAA battery, with dimensions of 28.2 mm in length and 10 mm in diameter, with a weight of 8 grams. The A23 battery is an 8-cell battery having a nominal voltage of 12 V.

Is E96 the same as AAAA?

The direct batteries used for AAAA batteries are LR8D425, E96, MN2500, and MX2500. These batteries are accurately used for AAAA equivalents; the only difference is their names.

Is the AAAA battery the same as the A27?

The A27 battery is a dry cell alkaline battery that is thinner compared to a standard AAA battery. The A27 battery is used for remote control and electronic lighters.

What battery is equivalent to AAAA?

AAAA battery equivalents are MN2500, K4A, 25A, GP25A, 4061, X91, MX2500, E96, LR61, 25A-U2, LR8D425, Quad A, and Quadruple A.

How many volts is a AAAA battery?

AAAA Battery Nominal Voltage	1.50 Volts
Capacity	≈ 500-600mAh
Operating Temperature	0°C – 60°C
Diameter	8.3mm
Height	42.5mm

What is the difference between AA and AAAA batteries?

AA battery length is 50 mm and 14 mm in diameter, and AAA battery length is 45 mm in length and diameter is 10.5 mm. The difference is capacity. The alkaline AA battery capacity is 2100mAh, and an AAA battery has 1150mAh.

Can AA batteries be used for AAA batteries?

No, we cannot use an AA battery in place of a AAA battery. Both AA and AAA batteries have a voltage of 1.5 and are used for different sizes and capacities.

Which battery size is best for remote controls?

AA and AAA batteries are used for remote controls; AAA batteries are more commonly used for small remotes and AA batteries for larger remotes.

Can you use AAA instead of AAAA?

The AAA and AAAA batteries are not here. The main difference is their size and capacity. AAA batteries are larger in size and have high power, used for larger devices like TV remotes and game controllers.

What is the shelf life of AAAA batteries?

AAA batteries have a working life of 3 to 5 years in good storage conditions. For a working longer life, a battery must be kept in cool conditions, dry places, and away from direct sunlight.
