Hello electronics students, welcome to a new tutorial. In this post, we will cover the comparison details of 6V and 12V batteries. Almost all devices, whether small or large, operate with batteries. Commonly used 6V and 12V batteries are used to provide power to other batteries. Here, we will cover detailed features for finding their differences. So get started with 6V vs. 12V batteries.
6V vs 12V Battery: Comparison chart
Feature | 6V Battery | 12V Battery |
| Nominal Voltage | 6 V | 12 V |
| Rated Voltage per Cell | 2 V | 2 V |
| Number of Cells | 3 cells | 6 cells |
| Typical Capacity (Ah) | 180–240 Ah | 40–200 Ah |
| Energy Capacity (Wh) | Moderate (Wh = V × Ah) | Higher for the same Ah |
| Internal Resistance | Low | High |
| Current Draw | Higher | Lower current |
| Charging Voltage | 7.2–7.4 V | 14.2–14.8 V |
| Charging Time | Longer | Shorter |
| Efficiency | Lower due to higher current losses | Higher efficiency |
| Cable Thickness Required | Thicker cables | Thinner |
| System Scalability | series connection for higher voltage | Easier design |
| Typical Battery Chemistry | Lead-acid | Lead-acid, AGM, Gel, Lithium |
| Operating Temperature | −20°C to +50°C | −20°C to +55°C |
| Applications | Golf carts, solar banks, forklifts | Vsolarehicles, UPS, inverters, |

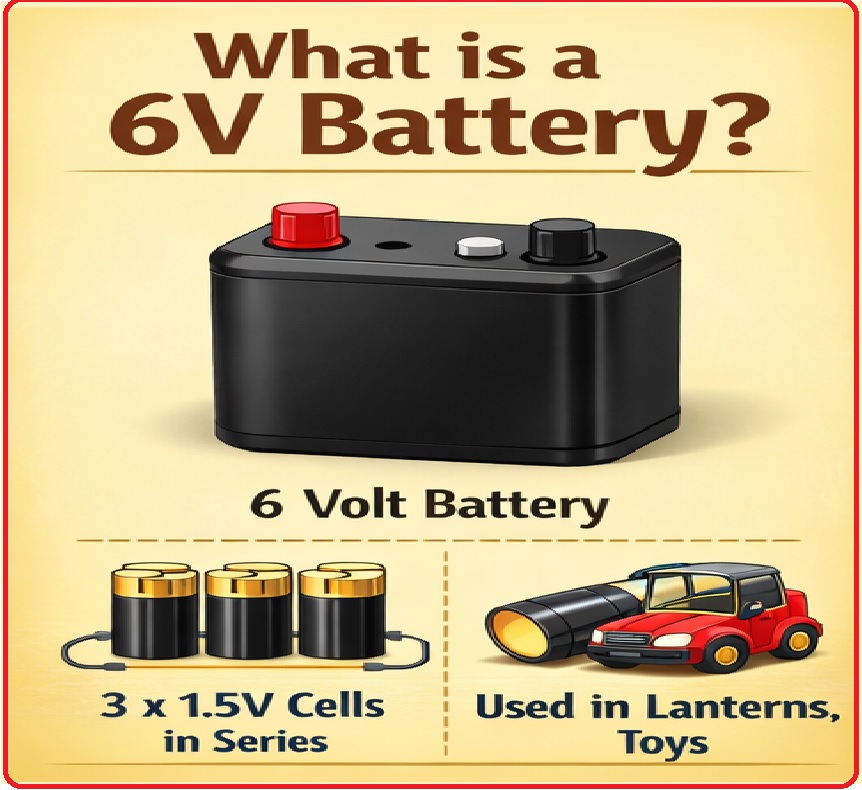

What is 6V Battery
- A 6V battery provides stored power up to six volts since it has storage features. It provides a stable voltage during operation and is used as a steady source.
- This battery is employed where low power, about 6 volts, is needed. It is best for devices and projects where low voltage is needed, like toys and small devices.
- It comes with lead acid, alkaline, and lithium compositions. But commonly used lead-acid 6V batteries are part of backup power circuits with electric wheelchairs.
- Alkaline 6V battery: not very common, but has good energy density and low-weight features

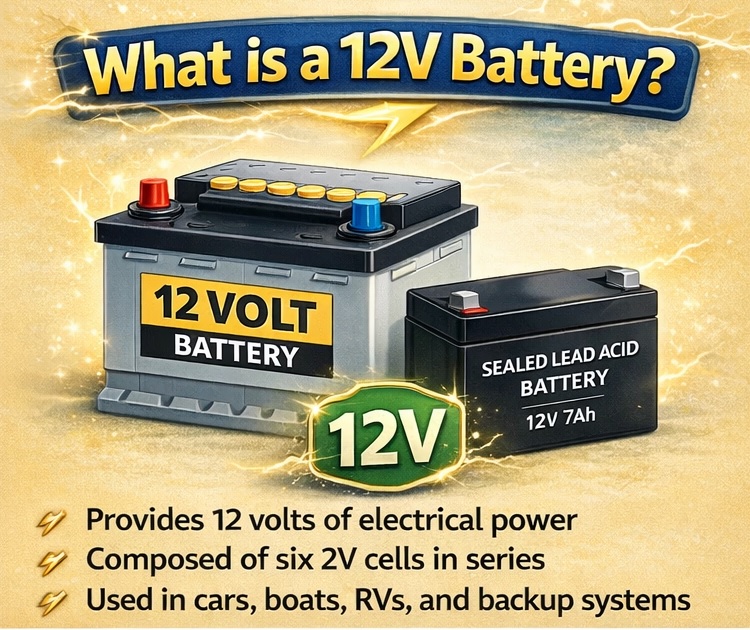

What are 12V batteries?
- A 12V battery is a commonly used battery that has different shapes, sizes, and uses. It is a commonly used battery part of different devices.
- It comes with different dimensions, as well as cylindrical and square designs.
- It is part of vehicle batteries, boats, and other transportation applications. 12V battery design based on ampere-hour.
- applications and projects where high power is needed 12-volt battery. like high-voltage power storage systems, like trucks, cars, and recreational vehicles, and a backup power system,
- It is also part of a solar system installation for engineering storage and provides power to the load.
- These batteries provide power to a larger electrical system where high, constant power is required, like a 24/7 operating system.
6V Battery Types
Lead-Acid Battery
- Lead-acid batteries are rechargeable batteries and an older type. Its composition comes with lead dioxide and sponge lead plates that are dipped in sulfuric acid.
- It is low cost, with high current features, but has a higher weight and lower energy density than advanced feature batteries.
6V Lithium-Ion Battery
- These battery chemistries are made with a lithium cathode and provide lightweight features with high energy density.
- Its working life is longer with high efficiency. but costly compared to lead-acid batteries.
- These batteries are used in small devices and parts of electric vehicles’ compartments to provide energy.
6V Nickel-Cadmium Batteries
- 6V nickel-cadmium battery has a high discharge rate. It works well for different temperature conditions.
- These batteries are used in emergency lighting systems and power devices.
6V Gel Cell Batteries
- • A gel cell battery comes with lead acid chemistry that has gel electrolyte rather than liquid acid. so is the spill-proof design.
- It needed low maintenance and a safe design, but was costly compared to lead-acid batteries.
- These batteries are part of wheelchairs and alarm circuits.
AGM Batteries
- Absorbent glass mat battery, also a lead acid battery, uses fiberglass mats for absorbing electrolyte and has a leakproof design.
- It has a high discharge rate and vibration resistance. Its cost is higher than that of flooded lead-acid batteries.
- AGM batteries’ common uses are for high-performance vehicles due to their working features.
| Battery Type | Voltage | Energy Density (Wh/kg) | Weight | Cycle Life | Maintenance | Charging | Advantages | Disadvantages | Uses |
| Lead-Acid | 6V | ~40 | Heavy | Moderate | High | Slow | Low cost, re | Heavy, needs maintenance | Backup power, vehicles |
| Lithium-Ion | 6V | ~150 | Very Low | High | Very Low | Fast | high efficiency Lightweight, long life, | high cost, uses a protection circuit | Portable devices, electronics |
| NiCd (Nickel-Cadmium) | 6V | ~50 | Moderate | Very High | Low | Fast | well for extreme temperatures, durable | Memory effect, toxic materials | Emergency lighting, tool |
| Gel Cell | 6V | ~45 | Heavy | Moderate | Maintenance-free | Slow | Leak-proof, vibration-resistant | Sensitive to overcharging | Medical devices, |
| AGM (Absorbent Glass Mat) | 6V | ~50 | Moderate | High | Maintenance-free | Moderate | Spill-proof, good power output | costlier than lead-acid | Marine systems, vehicles |
Different 12V battery types
12 batteries also come in different types, and each has its own features and applications.
12V flooded lead-acid batteries
- 12 flooded lead-acid batteries are commonly used batteries. This battery has suspended lead plates in sulfuric acid solution. That helps to make a chemical reaction for energy storage.
- This battery needed a certain level of water for continuous working. So we needed to maintain this battery regularly.
- This battery is common and older, so it is easy to find. It is used for starting vehicle engines.
- This battery needed regular maintenance and monitoring since the proper liquid quantity was required for accurate working. Its working life is reduced due to different environmental conditions like high temperature and cold conditions.
12V sealed valve-regulated lead-acid battery
- This battery is an upgraded version of the open flooded lead-type battery. This battery has an enclosed structure for the chemical reaction that causes the creation of hydrogen gas pressure.
- That gas is converted into water pressure of the gas is higher than the required pressure. So press the control with the regulator valve according to battery demand.
- The working life of a battery is two to eight years.
- Either it is costly, but it does not need high maintenance.
12 Gel 12V batteries
- This type of lead-acid battery uses a gel-like electrolyte where the lead plate is suspended. The working life of a 12-volt battery is about 2 to 5 years.
- Gel batteries work well in different temperature conditions. so needed less maintenance.
- A gel 12 V battery needed a proper charging process. it needed charging with a charge controller and needed different charging cycles for low voltages.
AGM 12V battery
- AGM is a sealed lead-acid battery with absorbent glass mat technology. This battery has lead plates between fiberglass-saturated electrolyte mats.
- that controls battery charging and discharging. This battery’s working life is four to seven years.
- An AGM battery requires little or no maintenance, so it works well in harsh conditions. It does not need special charging features and has a longer working life.
- But AGM batteries cost more than lead acid or gel batteries.
Lithium-ion 12V battery
- These batteries are common to use. This battery has higher power than a lead-acid 12-volt battery. Lithium-ion batteries come with lithium salt compared to liquid or acid. that increases its capacity. Lithium-ion batteries make the safe operation of devices possible, but their high cost makes them less effective for small projects.
| Battery Type | Details | Maintenance | Advantages | Disadvantages | Uses |
| Flooded Lead-Acid (FLA) | lead-acid battery with liquid electrolyte | High | Low cost, available | Heavy, spills possible, shorter life | Cars, tractors, backup power |
| Sealed Valve-Regulated Lead-Acid (VRLA) | Sealed battery with pressure-release valves | Low | No spilling, safer | overcharging, limited repair | UPS, emergency lighting |
| Gel 12V Battery | gel-type electrolyte | low | Deep-cycle capable, good for hot environments | costly, slow charging required | Solar systems, wheelchairs |
| AGM (Absorbent Glass Mat) 12V Battery | Electrolyte absorbed in fiberglass mats | Very low | speedy charging, vibration-resistant, spill-proof | costly than flooded | Motorcycles, RVs, solar power |
| Lithium-Ion 12V Battery | Uses lithium chemistry instead of lead | Very low | Lightweight, long life, high efficiency | High cost, needs a protection circuit | Solar storage, portable power, EVs, |

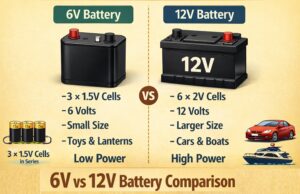

Difference between 6V and 12V Batteries
Voltage
- A 6V battery has a lower voltage output, and through a series combination, we can get 12 volts from 2 six-volt batteries.
- 12V battery provides 12 volts and is applied in different applications where 12 volts are needed.
Capacity
- 6v battery capcity is 1000Ahto200Ahthat providerequried capacity for and12vbattery capity is 50Ah to 300Ah, according to design requirments
| Battery | Voltage | Capacity |
| 6V | 6 Volts | 100Ah – 220Ah |
| 12V | 12 Volts | 50Ah – 300Ah |
Dimensions
- Normally, a six-volt battery is small in size and low in weight compared to a 12-volt battery. The standard 6V battery dimensions are 10 inches in length, and the weight is 60 lbs. The 12V battery is is12 inches longer, and the weight is 70 lbs.
Cost
- A 6V battery comes at a lower cost than a 12V battery having the same capacity.
Efficiency
- The 6V battery has efficient features for applications, while the 12V battery is used for applications where high power is needed.
working lifespan
- The working life of a 6V battery is three to five years. 12-volt batteries work for 4 to 7 years or longer, depending on working conditions.
- These two batteries needed low maintenance.
Applications of 6V vs. 12V Batteries
6V Batteries
- 6V battery common uses are for RVs and camping devices. It is also part of electric vehicles and golf carts since limited space is needed with high amp hours.
- It has high capacity with low ampere output.
12V Batteries
- It used different vehicles like cars and trucks.
- Also, part of marine applications to give power to boats.
- It is preferred for energy storage systems and solar
12V Battery Advantages
- Its main advantage is providing a constant voltage for loads and maintaining 12 volts during working life.
- It has higher amp hours, that make it work longer. so used in EVs and other applications.
- Deep-cycle lithium 12-volt batteries are lower cost than 6V batteries.
- Through their series connection, we can get high ampere-hours.
Disadvantages of 12V Battery:
- Its normal working life is shorter than a 12-volt battery, and either its amp hours are higher, or its rating is lower compared to a 6-volt battery.
- This battery’s high weight and larger size make it difficult to use in confined spaces.
Advantages of 6V Batteries
It has good discharge features and increases the working life of connected devices.
- Its discharging and recharging features are better.
- Its good voltage features enhance small ampere output features.
- It has larger ampere-hour features and performs well for different applications.
Limitations of 6V Batteries
- Its high prices make it less effective for small projects.
- Larger size makes its handling difficult for device connections.
6V battery: less common than other batteries, it has good discharge features and increases the working life of connected devices.
- Its discharging and recharging features are better.
- Its good voltage features enhance small ampere output features.
- It has larger ampere-hour features and performs well for fordifferent appliations
Limitations of 6V Batteries
- Its high prices make it less effective for small projects.
- Larger size makes its handling difficult for device connections.
- 6V battery is less common than other batteries
FAQs
Is it possible to charge a 6V battery with a 12V charger?
- No, it is not recommended to use a 12V charger for a 6V battery. Since a 12V charger causes overheating of the 6V battery and damages the battery. So use a supported charge.
Can a 6V battery be used for a 12V motor?
- Yes, a 6V battery is used to operate a 12V battery. But it does not work at full capacity and moves on at a lower speed. With that torque, the 12-volt motor is low. So use a 12-volt battery for a 12V motor.
Can we replace 6V with 12V batteries?
- Yes, we can replace a 6V battery with a 12V battery. But check that device for replacement. such as a 12-volt battery equal to two series batteries, so use one 12V battery for two 6-volt batteries.
How to test a 12V battery
- We can check the battery conditionwith multieter. normally acurteworking battery providemore thatn 12 volts in full chared state. Working of the battery also telll aboutits health. 12 v faulty battery normally has less than 12v
What is the difference between a 6V vs. a 12V battery?
- The basic difference is their voltage, which is based on cells. A 6V lead-acid battery has 3 cells in series seriescombination and a 12V battery has 6 cells in series combination.
- The 6V lithium battery comes with 2 cells with 3.7V, and the 12V lithium battery has 4 cells.
Are two 6V batteries better than one 12V battery for an RV?
- It lies on battery capacity, so 2 six-volt high-capacity batteries are better than 1 twelve-volt battery to use in RVs. RVs also needed high power.
Is a marine battery a 6V or 12V 12vbattery?
- 12V batteries are used in marine applications, but 6V batteries are also employed. Before using batteries for marine applications, check the marine-required battery voltage.
Why do golf carts work on 6V rather than 12V batteries?
- Gold carts require high power, so 6V golf car batteries are preferred compared to 12V 12vbatterys
