The 6V battery is reliable, with a high-efficiency battery that is used for different industries. It used to provide power to small vehicles and was part of renewable energy sources like solar power systems. In this post, we will cover detailed features of the 6V battery and related features. So let’s get started.
What Are 6V Batteries?
- 6V battery basically discharges electricity through energy storage with 6 volts constant voltage. This battery provides constant power for a longer time.
- It comes in different chemistries; the lead-acid 6V battery is rechargeable. basically lead-acid batteries are the first rechargeable batteries.
- This battery is rectangular-shaped and is employed for heavy-duty projects, with 4 x 1.5V D-size batteries in series combination.
- This battery comes with different cells, but 6V lead-acid batteries have 3 cells with a capacity of 2.35 to 2.4V in fully charged conditions.
- so full charge 6V lead-acid battery volts are about 7.2 volts. A 6V lithium battery has two cells in series combination, so a single cell is 4.2 volts, and the 6V lithium battery batteryvoltage are about 8.4V when fully charged.
- It provides effective power through a low-weight design, so it can be applied where balanced energy is needed.
6V Batteries: Different Types
6V batteries come in different types; each performs certain features and operations.
6V Lead-Acid Battery
- 6V lead-acid batteries are rechargeable and part of older 6V lead-acid batteries. This battery comes with lead dioxide and lead plates dipped in sulfuric acid solution.
- These batteries have high current in a compact design and are part of EVS and solar backup power supplies.
- Its limitations are that it has a higher weight and lower efficiency than advanced models.
6V Lithium-Ion Battery
- These batteries are high energy density with lightweight. Its electrodes are made with lithium, which makes for a lightweight design with high efficiency.
- These batteries are part of small electronic devices and vehicles, but their prices are higher than those of lead-acid batteries.
6V Nickel-Cadmium Battery
- These batteries have high discharge features and work well in harsh conditions. So part of the emergency lighting system
- But its capacity reduces with time.
6V Gel Battery
- These batteries are lead-acid chemistry, which has gel electrolyte for leak-proof applications. It needed less maintenance and was part of indoor applications.
- They are used for alarm systems and wheelchairs, but are costlier than conventional lead-acid batteries.
6V AGM Batteries
- AGM battery is also a lead-acid chemistry battery. It has a fiberglass mat for electrolyte absorbing and provides leakproof features.
- These batteries are employed for marine and high-performance vehicles since they work well in different conditions.

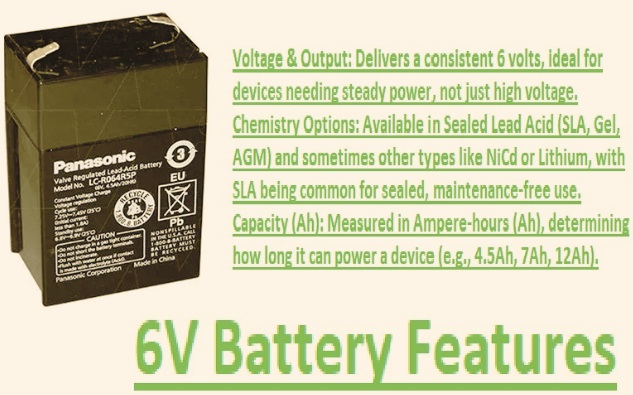

6V Battery Features
- Their main feature is high-discharging features, and they provide power to devices for a longer time.
- Its charging and recharging features are also effective since it has longevity features.
- Either has high voltage but has a small amp output according to applications.
- If we make a comparison with a 12V battery, a 6V battery provides a larger ampere-hour capacity for a longer charging time, maintaining the same features.
| Feature | details |
| Nominal Voltage | 6 volts |
| Chemistries | Lead-Acid, NiMH, NiCd, Alkaline, Lithium-ion, |
| Capacity Range | 1.2 Ah to 300 Ah |
| Energy Density | Low to medium |
| Rechargeable Option | yes (Lead-Acid, NiMH, Li-ion) |
| Primary (Non-Rechargeable) | yes (Alkaline, Lithium primary) |
| Discharge Characteristics | Stable voltage output |
| Internal Resistance | Low to moderate |
| Weight | Heavy (Lead-Acid) to lightweight (Lithium) |
| Charging Time | 4–12 hours |
| Operating Temperature | −20°C to +50°C (varies by type) |
| Maintenance Requirement | None (sealed types), periodic (flooded lead-acid) |
| Cycle Life | 200–500 cycles (Lead-Acid), 2000+ (Lithium) |
| Self-Discharge Rate | Low (Lithium), moderate (NiMH), higher (NiCd) |
| Safety | Vent valves, thermal protection, and short-circuit protection |
| Environmental factors | Lead types require recycling |
| Applications | Toys, emergency lighting, industrial controls, solar backup, medical devices, |
| Cost Range | Low to high (Lead-Acid lowest, Lithium highest) |
| Size & Form Factors | Lantern battery, cylindrical pack, sealed block, |
| Efficiency | 80–95% according to chemistry |
Charging process of a 6 volt battery
For charging a 6V battery, a certain charger is used. So make sure to charge according to battery types. follows these points for accurate charging of a 6V battery
- First connect the positive pin of the battery with the charger’s positive point and the negative with the negative point.
- When the charger connects, keep monitoring the charging process, avoiding any damage, but some chargers come with automatic trip features for controlling overcharging.
- To avoid overcharging, check with a multimeter that the battery is not overcharged. since overcharging causes damage to lead-acid batteries, especially reducing their working life
- Lead-acid batteries take a longer time to be charged, so wait until the complete charging process is done to get the required battery performance.
6 Volt Battery Working Process
The 6V battery working involves different processes, which are explained below.
chemical reaction
- When the battery is connected to circuits or devices, chemical reactions start between the plates and electrolytes. For lead-acid batteries, a sulfuric acid reaction occurs on lead plates, causing lead sulfate energy, and water.
Ion movement
- During chemical reactions, ions are produced that flow between positive and negative plates in an electrolyte. That ion motion causes current.
Voltage production
- Voltages of battery cells added for providing net output battery volts. A 6V battery generated six volts since it has 3 two-volt cells in series.
Power
- In the last current produced, move from the battery to the connected devices. We get 6V voltage power for device operations.
Lead Acid 6V Battery Life
- Lead acid 6V batteries work based on maintenance and uses but usually last about seven years. Its working temperature is 25 degrees; for high temperatures, it does not work for long.
6 volt battery Constructions
A 6V battery comes with different parts that perform operations.
cells
- The main part of a 6V battery is the electrochemical cells. Each cell produces a certain voltage due to a chemical reaction. This battery has three cells that generate 6 volts since each is 2 volts.
Electrolyte solution
- This solution of battery helps ion movement between positive and negative battery terminals. Due to ion flow, energy is produced.
Battery Plates
- A 6V battery has positive and negative plates made of lead or other materials dipped in electrolyte. These plates cause the production of chemical reactions.
Separator
- To avoid short circuits between positive and negative plates, nonconductive materials exist between plates, called separators.
Battery Terminals
- Battery terminals help the battery to make connections with circuits and deliver power to the load.
6 volt batteries connections and configurations
A 6V battery has two circuit connection configurations.
Series connections
- A battery series configuration provides added voltage, and amperes remain the same. In a series connection, the batteries’ negative terminals are connected to the positive of the second battery. and the other positive and negative of these batteries connected through small wires.
- If we connect two six-volt batteries in series, the combination’s net voltage is 12 volts.
6V battery parallel connections
- Parallel connections of batteries provide a current addition with the same voltage if they are of the same value. In batteries in parallel connection, the positive terminals of both batteries are connected, and the negative ones are also connected. In parallel combinations, voltage remains the same, but the current value is added.
How to Maintain 6-Volt Batteries
Follow these points for the maintenance of 6V batteries.
Maintain proper charging.
- manitain accuratecharnging level of battery according to the guidelines of manufacturers and battery requirements that avoid any damage ofbatteryand discharnging
Terminal Maintenance
- Make battery cleanings and prevent corrosion to make strong connections.
Storage
- Keep batteries in locations that are dry and cool; avoid high-temperature conditions.
What is a 6-volt deep cycle battery?
- A 6-volt deep cycle lead-acid chemistry battery works for longer through a fully charged state. This battery has a steady current for a longer time, so it is employed in marine vessels, RVs, golf carts, etc.
6-volt deep cycle battery features
Chemistry
- Lead acid chemistry used for this battery also has a positive plate of lead dioxide and a negative plate made with sponge lead with a sulfuric acid electrolyte solution.
Construction
- This battery comes with a thick plate design and high-density active materials that manage deep discharging cycles.
- These batteries can discharge about 80 percent capacity without any damage.
Capacity
- Battery capacity is measured in ampere-hours. The capacity of a 6-volt deep-cycle battery is 200 Ah to over 400 Ah, according to type.
Voltage:
- Nominal voltage for this battery is 6 volts, but the working voltage can be different according to charging and discharging cycles.
Durability
- It has repeated deep discharging and recharging cycles without capacity degradation.
Weight and size
- It is a high-weight battery and a larger size since lead materials exist, but it makes it useful for mobile uses.
Cost
- Their special design and longer working life make them useful for vehicle batteries, so they are high-cost batteries.
6 Volt battery vs 12 Volt battery
6v batteries come with heavy plates incells with longerlife than12v batteries. Their working life is 4 to 8 years according to typesand battery uses.
some other differences for 6v battery and 12v batteries are as
Technical Feature | 6 Volt Battery | 12 Volt Battery |
| Nominal Voltage | 6V DC | 12V DC |
| Cell Configuration | 3 cells | 6 cells (≈2V per cell) |
| Energy Output | Lower | Higher |
| Current Requirement | Higher current is required for the same power | Lower current for the same power |
| Power Delivery (P = V × I) | low for high-power loads | More for high-power loads |
| Internal Resistance | higher | Lower, preffered for current flow |
| Voltage Drop Over Distance | High voltage drop | Low voltage drop |
| Cable Size | Thicker cables | Thinner cables |
| Efficiency in Large Systems | Less efficient | More efficient |
| Weight (Same Capacity) | Heavier | Lighter |
| Charging Time | Slower charging | Faster charging |
| Charging System Complexity | Simple | more complex |
| Compatibility With Modern Electronics | Limited | Widely compatible |
| Heat Loss (I²R Losses) | Higher | Lower losses |
| Series/Parallel Flexibility | Often connected in series | Easily scalable |
| Maintenance (Lead-Acid) | Higher maintenance | Moderate maintenance |
| Cost | Lower initial cost | Higher initial cost |
| Applications | Toys, lanterns, golf carts, and small solar systems | Cars, UPS, inverters, solar systems |
| Automotive Uses | Rare | Standard |
| Solar System Suitability | Small off-grid setups | Medium to large systems |
| Backup Power Capability | Limited | Strong |
| Efficiency Rating | Moderate | High |
6V Battery vs Other Batteries – Technical Features Comparison
Technical Feature | 6V Battery | 1.5V Battery (AA/AAA) | 9V Battery | 12V Battery | 24V Battery |
| Nominal Voltage | 6 Volts | 1.5 Volts | 9 Volts | 12 Volts | 24 Volts |
| Typical Cell Count | 3 cells (2V each) | 1 cell | 6 small cells | 6 cells (2V each) | 12 cells (2V each) |
| Energy Capacity | Medium | Very Low | Low–Medium | High | Very High |
| Current Capability | Medium | Low | Low | High | Very High |
| Power Output (P=V×I) | Moderate | Very Low | Low | High | Very High |
| Internal Resistance | Medium | High | High | Low | Very Low |
| Voltage Drop Over Distance | Moderate | Very High | High | Low | Very Low |
| Cable Thickness Required | Medium | Thin | Thin | Moderate | Thin (for same power) |
| Efficiency in Power Systems | Moderate | Low | Low | High | Very High |
| Heat Loss (I²R Losses) | Moderate | High | High | Low | Very Low |
| Charging Complexity | Simple | Simple | Moderate | Moderate | Complex |
| Rechargeable Availability | Yes | Yes | Limited | Yes | Yes |
| Weight (Relative) | Medium | Very Light | Light | Heavy | Heavier |
| Maintenance (Lead-Acid) | Moderate | Low | Low | Moderate | Higher |
| Scalability | Series connection common | Poor scalability | Limited | Excellent | Excellent |
| Compatibility with Modern Electronics | Limited | Very Limited | Moderate | High | Industrial-grade |
| Solar System Suitability | Small systems | Not suitable | Very small systems | Medium–Large systems | Large systems |
| Automotive Use | Rare | No | No | Standard | Heavy vehicles |
| Applications | Toys, lanterns, golf carts | Remotes, clocks | Smoke alarms | Cars, UPS, inverters | EVs, telecom, industry |
Applications of 6v battery
Main uses of of6v battieresare as
Lighting system
- Night working needed a continuous power supply and a working lighting system. A 6V lithium battery is preferred for the lighting system since it has a longer working life than other batteries.
- Their recharging features make the 6V lithium battery effective for flashlights. Its internal cells’ power makes these batteries highly strong and gives them a longer working life.
Golf cart batteries
- The golf cart also uses 6V lithium batteries for operating and working other components. As compared to 12V batteries, 6V lithium golf cart batteries provide high power. since it has a low self-discharge rate, high capacity, and durable and lightweight features
Backup power source
- 6V rechargeable batteries work as backup power supplies in computers and other electronic devices. These batteries’ deep-cycle structure helps to provide high-speed charging.
So it is the best backup power supply sources
How to select Right 6V Battery
Different factors help to choose6v battery for applications
Application
- Before getting 6v battery, check that itsupported our required applications. such as this battery used in a solar power system, an electric scooter, toys
Chemistry
- Battery chemistry is also important, such as lithium-ion and lead acid battery employed. Each comes with its own features, such as weight and cost. A lithium-ion battery is part of RC vehicles since light weight and has a high cost.
Capacity Rating
- battery capcity measured inampere hours, that give details about the energy storage capcity of the battery and its performance in load conditions. for longer running time, high ampere hour rating preffered
Flooded vs Sealed Lead Acid Batteries
The basic differences between 6v flooded and sealed lead-acid batteries are as
| Flooded battery | Sealed battery |
| It comes withremovebale caps on the cell upperparts for adding water. | Sealed desing and no maintenance needed |
| expensive | low cost |
| low energy storage | 10-15% high energy storage |
| Not as quick-charging | Charge up to 4 times faster |
| damaged from high movement | strong design |
| less working life in extreme conditions, where the water evaporates or freezes | it has liquid to help electrolytes to move and can handle conditions effectively |
| Longer working life | Not long-lasting |
FAQs
Can a 6V battery be charged with a 12V charger?
- It can be possible, but it is not recommended to charge a 6V battery with a 12V battery charger. A 12V charger causes overheating of a 6V battery, damaging the battery plates.
- So the recommendation is to charge the battery with a supported charger for safe charging.
- supported charge maintain battery working life and working performance
Can we replace the 6V battery with 12v batteries?
- Yes, we can replace a 6V battery with a 12V battery. But before replacing, consider the device’s requirements and size.
How can you tell if a 12V battery is good?
- Yes, we can tell the 12V battery is working well with the multimeter. A proper 12V battery must have more than 12 volts in infull charged conditions. if the battery is not good, the voltage is less than 12v in fully charged conditions.
