How to feed wire to a 400 Amp meter base?

For 400amp service, we can use standard AWG wire values. Use thick Kcmil copper and aluminum wires. With that considered teh voltage losses for services of 100 feet distance. For 400 there is a need for wire that has features to handle about 400 amps. It means wire must have about 400A ampacity.

400 Amp Wire Gauge Source 0-500 Feet Away

Wire Length (3% Vd):	400 Amp Copper Wire Size At 120V:	400 Amp Copper Wire Size At 220V:
0 Feet	600	600 kcmil
50 Feet	600	600 kcmil
100 Feet	600 kcmil	600 kcmil
150 Feet	600 kcmil	600 kcmil
200 Feet	600 kcmil	600 kcmil
300 Feet	900 kcmil	600 kcmil
400 Feet	1250 kcmil	700 kcmil
500 Feet	1500 kcmil	800 kcmil

Why 400 Amp Meter Base Use

The meter base is a glass covering used for the protection of the electric meter to make connections with other components and circuit parts and also protects from moisture.

The electric meter is a device that measures the current used at home. The meter is connected outside the home or external wall, connecting the house system with utility cables.

The meter base is made for handling different ampere values. So 400 amp meter has features to a single 400 Amp panel.

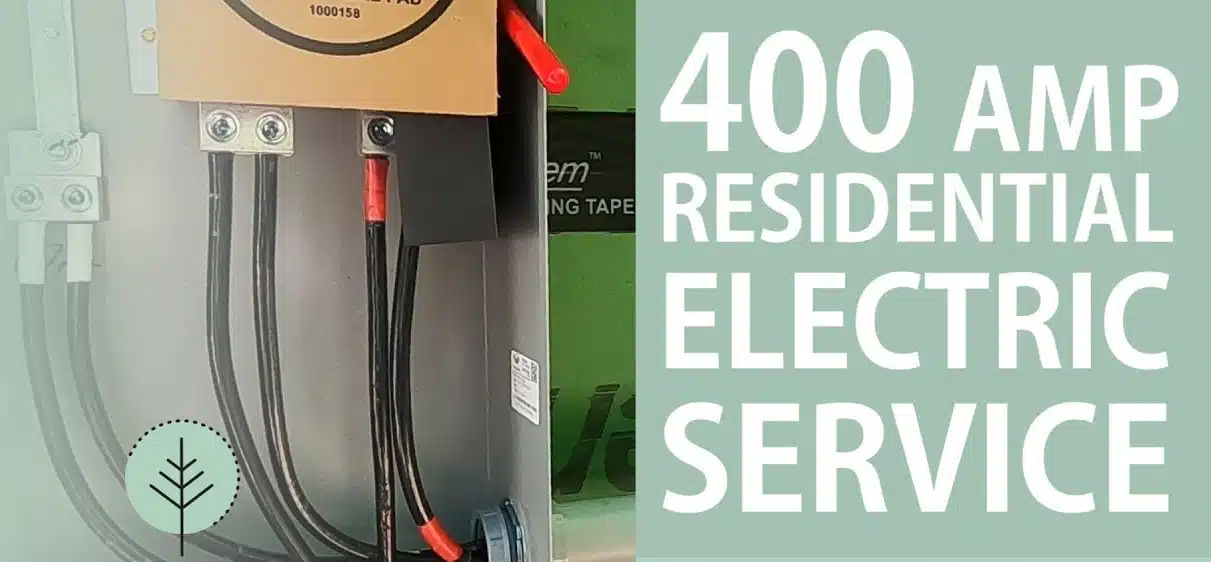

When is 400 Amp service used?

The 400 amp service is best for larger load houses having HVAC systems, air conditioning, and heating requirements. With that, it is used for houses that have hot tubs, saunas, or electric vehicle charging stations.

You must upgrade the system to 400 Amp service panels if needed to renovate the house and increase the electrical load with different electric devices. Before using 400 amp services first measure the load value.

The cable used for the 400 Amp Meter Base

Service entrance cables:

• SE-type cable with copper and aluminum is best to use for a 400 Amp meter base above ground.

THHN/THWN

• These cables are best for 400 amp meters based conduit in copper and aluminum material

XHHW/XHHW-2

• It is like the THHN/THWN but with the use of XPLE insulation and good moisture and heat resistance also exists in copper and aluminum

UF underground copper feeder

• This cable is used from meter based to panle to underground. This wire used for direct burial uses

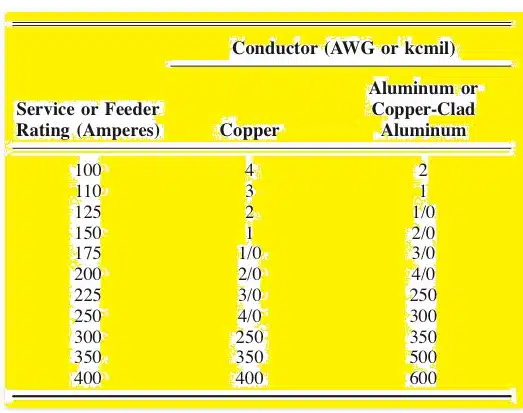

Size of the cables for 400 Amp Meter Base

• The 400 amp service and 400 amp meter base uses 750 kmil (750 MCM) or 1000 kcmil (1000 MCM) aluminum wire for 194 F or 1000 kcmil (1000 MCM)for 167 °F.
• For copper wire there is a need of 600 kcmil (600 MCM) copper wires at temperature values of 167 °F and 194°F.
• For 140 °F underground service, 1250 kcmil aluminum and 750 kcmil copper cables are  best to use
• These sizes values can used for single-phase and three-phase service.
• For grinding conductors about 3AWG copper wire and 1AWG aluminum or aluminum copper-clad are used. it is the minimum size for a grounding conductor, according to  NEC 2020.

Factors Affecting the Wire Size

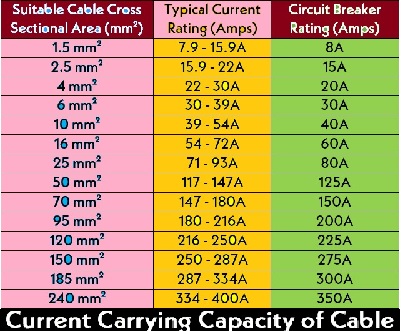

Current Carrying Capacity:

• The current of the wire flowing based on size, make sure it has features to handle the current without overheating

Voltage Drop:

• For longer distances considered voltage losses for maintaining efficiency and accurate function of the system

Ambient Temperature:

• Environmental different temperature conditions also affect featues to dissipate heat and affect current-carrying capacity.

Insulation Type:

• Different insulating materials come with different thermal and electrical features and affect the performance and size requirements.

Installation Technique:

• The installation method either conduit or cable tray connected affects dissipating heat and size

Conductor Material:

• Copper and aluminum come in different conductivity and temperature features, affecting features for uses and sizing

National Electrical Code (NEC) Rules

• Follow the electrical codes and standards for offering accurate features and regulations for wire size for safe operation.

Type of Load:

• The type of electrical load either inductive, resistive or capacitive has an effect on wire size for good operations

Cable Bundling:

• For different conductors connection with each of their derate ampacity of every conductor, affects the wire size requirements.

Frequency of Operation:

• For the devices that use AC, the frequency of operation can affect skin effect, effect resistance, and thus impact wire sizing
