Introduction to 3 Way Toggle Switches

The toggle switches are used to easily activate different devices and components in a car. Different techniques are used for their wiring and connections. Before using a switch on any circuit, make sure that it has features for handling that load. In this post, we will discuss its working features and other parameters. So let’s get started with Introduction to 3-Way Toggle Switches.

Introduction to Switches

• The main function of the switch is to make or break electrical connections and stop or on current flow. The basic type of switch is a light switch that can control light on and off states. The light switch is also called a single-pole single-through switch.
• SPST switch is also used in guitar for on or off pickups.

What is a 3-Way Toggle Switch?

• The 3-way toggle switch comes with three positions that click at the point. The 3-way switches are employed between 2 pickups in the guitar.

What is a three-way switch?

The 3-way switch is a device that is used for controlling light at two different points.

It is called a 3-way switch since it uses 3 terminals. Its three terminals are common for neutral wire, and two wires are black and red live wire.

The traveler lines have an alternative path for current in switches and control lights. It is commonly used in hallways and staircases.



3-Way toggle switch components

Here we have explained the SPST switch component configuration, which is the basic type of switch.

Pole:

• Pole defines several circuits that can be controlled with a switch. The SPST switch is a single pole that can on or off light.

Throw:

• The throw is connected to the pole, and the SPST switch is single-through since the pole can be connected or disconnected.

Lug/Terminal:

• It is the metallic component where the cable is connected. It comes with a small hole where we put wire and connect it with soldering. For the SPST switch, there are two lugs. In one state, both lugs are connected and the current is flowing, and in another position, the lugs are disconnected and not current is flowing.

Ground:

• The 3-way toggle switch comes with a certain lug for ground wire connection.

Types of toggle switches

SPST toggle switch

• The SPST switch comes with an on or off state. It has 2 terminals, with one terminal input connected and the other output





• In off state switch is open and there is no connection and no current flow. In ON state terminals are connected and the current is flowing. In the below figure, you can see SPST switching wiring to control light



SPDT Toggle Switch

• A SPDT is a (Single Position, Dual Throw). It can make a single out of two connections. The circuit of the SPDT toogle switch can seen here.

• Its Pin 1 is connected to a load, and terminal 3 to another load. Terminal 2 is connected to the supply. This switch is used for making one out of two connections and moving between them. When power is connected with the switch one remains on.





DPDT Toggle Switch



A DPDT  (Dual Position, Dual Throw)  is a somewhat complex connection switch. Its design is like two SPDT switches in one configuration. It can make connections with two different power sources for two different load control



The DPDT switch comes with 6 terminals, pins 3 and 4 connected to the power supply. Other pins 1, 2, 5, and 6 are connected with load. In one state power from pin 3 is given to pin 1, and from 4 pin is connected with pin 2. In other state power of terminal 3 is given at pin5 and power from pin 4 is connected with 6 terminal

Here you can see circuit where different loads connected with DPDT switch are controlled.

3-Way Toggle Switch Wiring

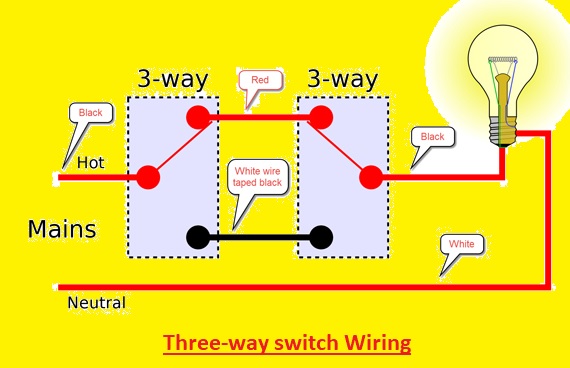

Here we can see a wiring diagram of 3 way toggle switches for different configuration



switches are toggled down to light is off.

Left switch is toggled up to light is on



Right switch is toggled up light is off.

How a Toggle Switch Works

The working of the toggle switch is simple to work. In the middle state, both pick-ups are in the ON state. If we click the switch downward remove one pickup, and click the switch in the reverse position remove other pickup.





For an accurate working switch, the pickup signal is connected with output pins for reaching the output jack. By checking the toggle switch, we can find small connectors having contact points that make the connection of input pins with output pins.

Pickups are connected with an input and output jack with output terminals.

When terminals are connected, pickup signals can flow to the output jack. But the rocking switch in the clicked state pushes the input pin and separates it from the output terminal.

In the above figure, the left image comes with a middle state, and both pickups are connected with an output jack. On the right side, the rocking switch to the right side operates the left contact and stop signal from left to the output jack.
