The 3-way switch comes with a 3-way switch combination in a single casing. Two common terminals are connected and have removable metallic tabs. These pins are connected with line voltage and are black or bronze based on the manufacturer. The tab is removed to make the separation between tabs. Let’s get started with 3-way duplex switches.
What is a Duplex Switch?
The duplex switch comes with 2 switches in a single body. They have a single pole and 3-way combination. 2 combination terminals are connected with removable metallic tabs.
According to suppliers, these pins are connected with line voltage and are black or bronze in color.
3-Way Duplex Switch Features
| Manufacturer | ‎Leviton |
| Part Number |
‎S04-05243-00W
|
| Weight | ‎4.3 ounces |
| Dimensions |
10 x 8.12 x 4.87 inches
|
| Origin | ‎China |
| model number | ‎5243-W |
| Is Discontinued By Manufacturer | ‎No |
| Size | ‎No Size |
| Color | ‎White |
| Finish | ‎White |
| Material | ‎Thermoplastic |
| Power Source | ‎wired electric |
| Voltage | ‎120 Volts |
| Wattage | ‎5243 watts |
| Amperage Capacity | ‎12 Amps |
| Item Package Quantity | ‎1 |
| Number of Pieces | ‎1 |
| Switch Type | ‎3-way |
| Switch Style | ‎Toggle |
| Included Components |
Electrical & Heating; electrical-outlet-switches, Cord & Power Management;
|
| Batteries Included? | ‎No |
| Batteries Required? | ‎No |
| Warranty Description |
Parts are backed by a limited two-year warranty.
|
3 Way Duplex Switch Diagrams

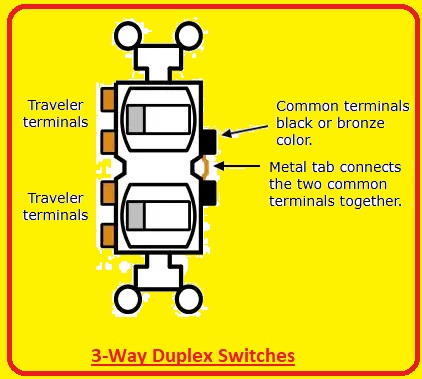

Duplex 3-
Duplex switch connected with a line. If the duplex switch metal lab is removed then the common terminal can connected with a different line.
Here you can see ceiling fans using duplex and conventional 3 way switches
What is a three-way switch?
- The 3-way switch is an electrical device that controls a single light fixture at two points. It is called a 3-way switch since it has 3 terminals in the switch, not due to 3 push buttons.
What is the function of a duplex switch?
- The duplex switch regulates 2 electric circuits with 2 toggles. That switch regulates two lights or other devices from two different points.
What is the difference between a 2-way and a 3-way switch?
- Like the 2-way switch or 3-way switch on or off light. But these are different. The 3-way switch is used in conjunction with another 3-way switch. Each has power for interrupting current flow and off light from different locations of home.
How does a 3-way double switch work?
- In conventional electrical circuits, a 3-way light switch is combined with an extra 3-way switch for providing control of light or devices at two different locations. Both switches are made to interrupt circuits or help turn on or off lights at two different points.
Is a 2-way and 3-way switch the same?
- Like the two-way switch, the three-way switch turns on light or off. But the difference is that 3-way switches are used in conjunction with other 3-way switches. Each has power for interrupting current flow and offlight from different locations.
What happens if you wire a 3-way switch wrong?
- If a 3-way electrical switch is connected improperly, it causes different damage. The main problem is that switches do not work well. Any switch not work or just one work.
Can a 3-way switch work with 2 wires?
- The conventional 3-way switch circuit has 3 wires: hot wire, traveler wire, and neutral wire. If anyone is missing, the switch will not work well.’
Will a 3-way switch work without a neutral?
- Most codes needed one three-way switch box for having a neutral wire. These switches do not come with neutral points since the wire bypass switch is direct between the light fixture and the power supply, so it is not required.
What is the main difference between light circuits and power circuits?
- There are 2 distinct circuits in the home: a lighting circuit with a 5 A fuse and a power circuit with a 15 Fuse. Lighting circuits work for lower power rating devices, and power circuits are used for operating high power devices.
Are 3-way switches single-pole?
- The 3-way switch is larger as compared to a single pole and comes with 3 terminals for wiring connections with ground. Two of these traveler wires move from one switch to another. For 3rd terminals, one switch is connected to the live wire and the other is connected to the light.
